Front Sub-Sensor And Side Airbag Sensor

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

How to disconnect:
Holding outer part (A), pull it in the direction of the arrow.

CAUTION: When pulling, be sure to hold onto the connector and not the wire.

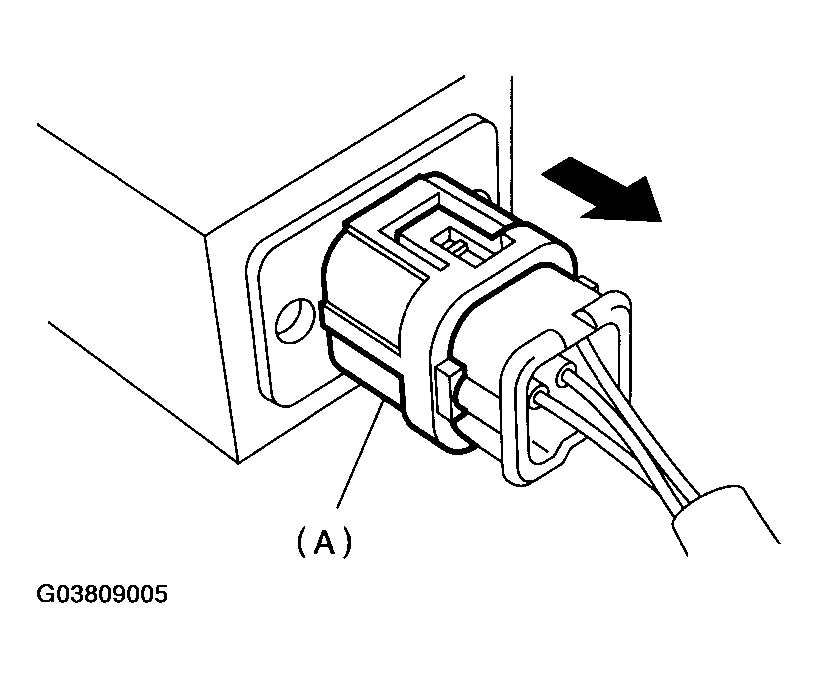

Fig 1: Disconnecting Front Sub-Sensor And Side Air-Bag Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
How to connect:
Holding the connector, and push it in carefully until a connecting sound is heard.
CAUTION:
- Outer (A) moves back, and so do not put your hand on the outer part.
- Be sure to insert the connector in until it locks. Then pull on it gently to make sure that it is locked.

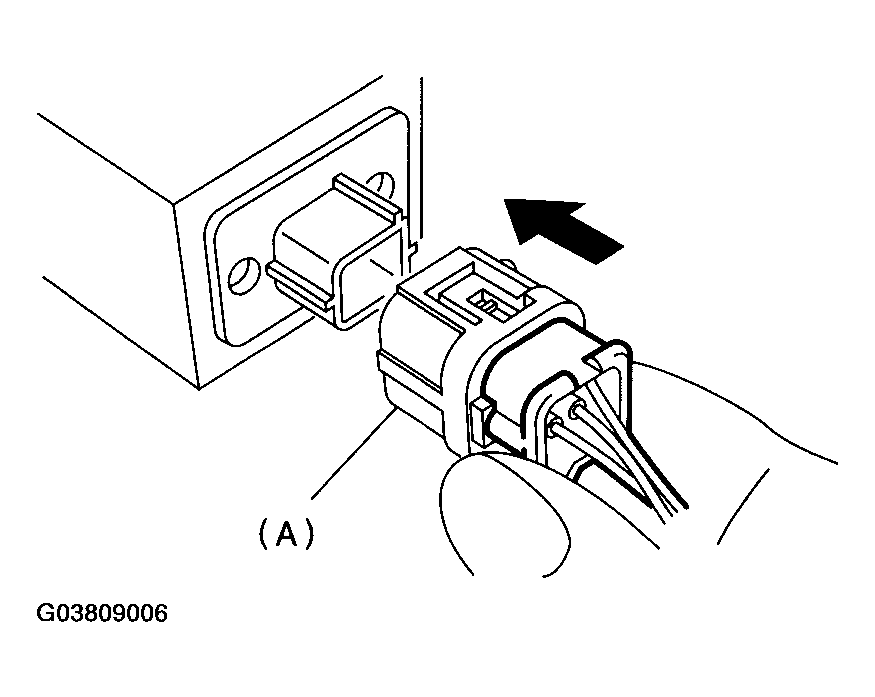

  Fig 2: Connecting Front Sub-Sensor And Side Air-Bag Sensor Connector
  Courtesy of SUBARU OF AMERICA, INC.
