Section 157 (Wheel And Tire System): General Description: Specifications: Notes

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

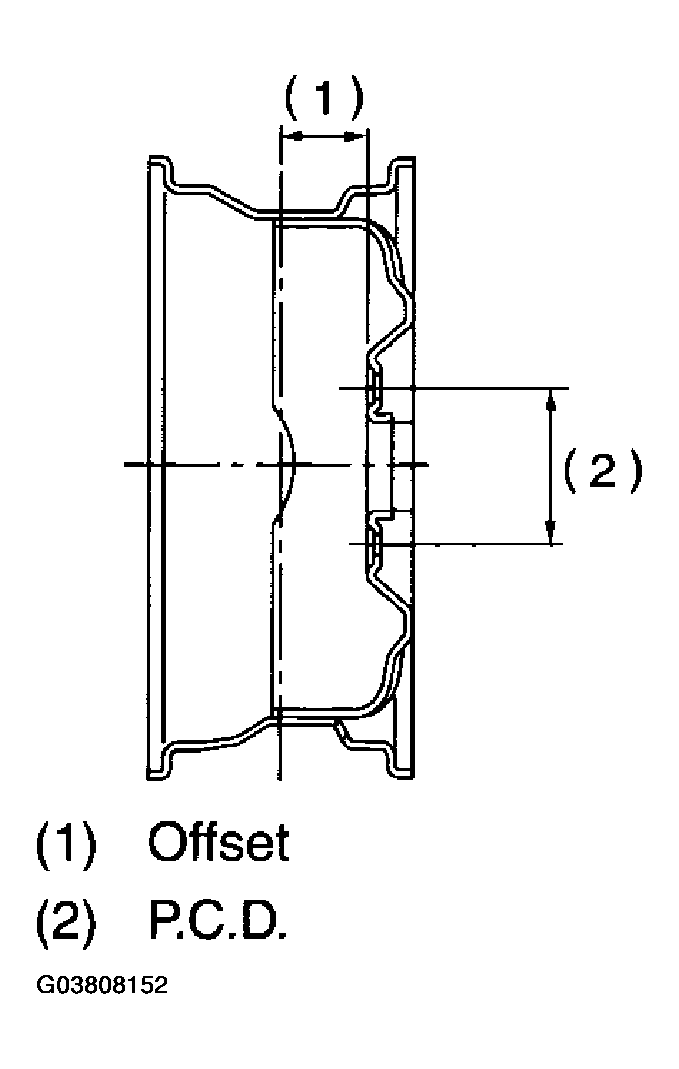

Fig 1: Identifying Rim Offset And P.C.D

Courtesy of SUBARU OF AMERICA, INC.

FRONT AND REAR TIRE RIM OFFSET AND P.C.D SPECIFICATIONS

		Tire size	Rim size	Rim offset mm (in)	P.C.D. mm (in)
Front and rear	X, XS, XT L.L. Bean	P215/60 R16 94H	16x6 1/2JJ	48 (1.89)	100 (3.94) dia.

FRONT AND REAR TIRE SIZE AND TIRE PRESSURE SPECIFICATIONS

		Tire size	Tire inflation pressure kPa (kg/cm² , psi)
		Tire size	Light load	Full load
Front and rear	X, XS, XT L.L. Bean	P215/60 R16 94H	Fr: 200 (2.0, 29) Rr: 190 (1.9,28)	Fr: 200 (2.0, 29) Rr: 250 (2.5, 36)

NOTE:

The vehicle is equipped with spare tire as same size as front and rear tire.
At trailer towing, rear inflation pressure is 280 kPa (2.8 kg/cm² , 41 psi).
