Master Cylinder: Installation

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the master cylinder to body, and install the clutch pipe to master cylinder.
    NOTE: Check that the pipe is routed properly.

    Tightening torque:

    T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)

    T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

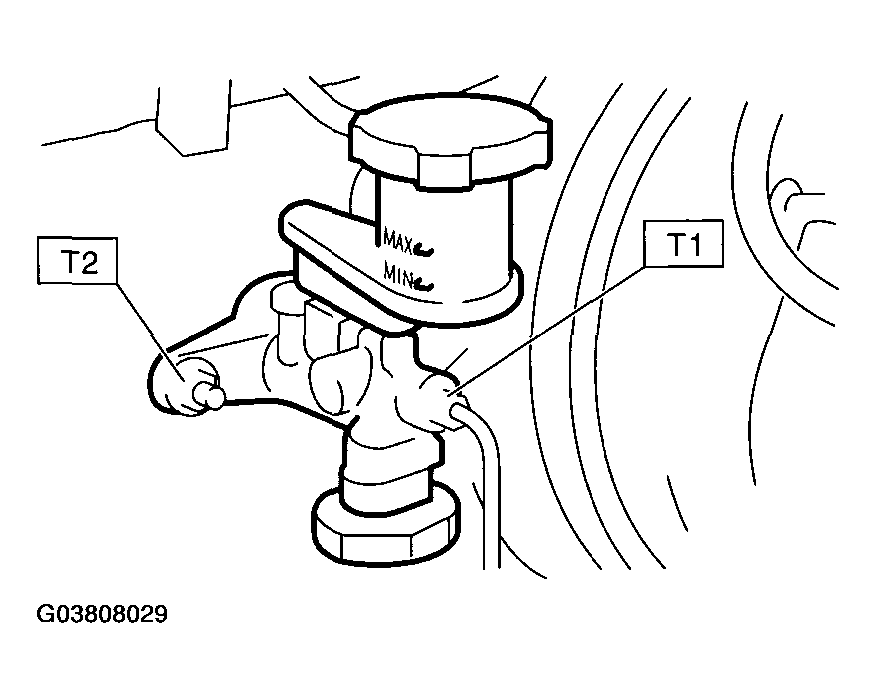

    Fig 1: [Installing Master Cylinder]
    G03808029Courtesy of SUBARU OF AMERICA, INC.
  2. Apply a coat of grease to the clevis pin.
  3. Connect the push rod of master cylinder to clutch pedal, and install the new clevis pin and snap pin.

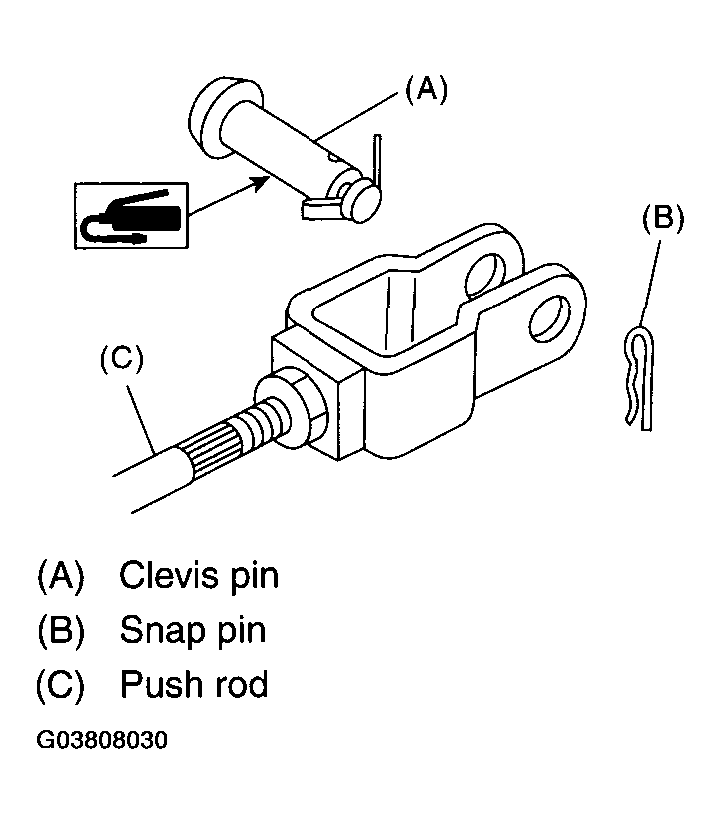

    Fig 2: Connecting Master Cylinder Push Rod To Clutch Pedal
    G03808030Courtesy of SUBARU OF AMERICA, INC.
  4. After bleeding air from the system, ensure that clutch operates properly. < Ref. to CLUTCH FLUID AIR BLEEDING . >
  5. Install the air cleaner case and air intake duct (Non-turbo model). < Ref. to INSTALLATION , Air Cleaner Case. > < Ref. to INSTALLATION , Air Intake Duct. >
  6. Install the intercooler (Turbo model). < Ref. to INSTALLATION , Intercooler. >
