Master Cylinder: Assembly

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the clutch damper.
Apply a coat of grease to the contacting surfaces of the push rod and piston before installation.
Grease:

SILICONE GREASE G40M (Part No. 004404003)

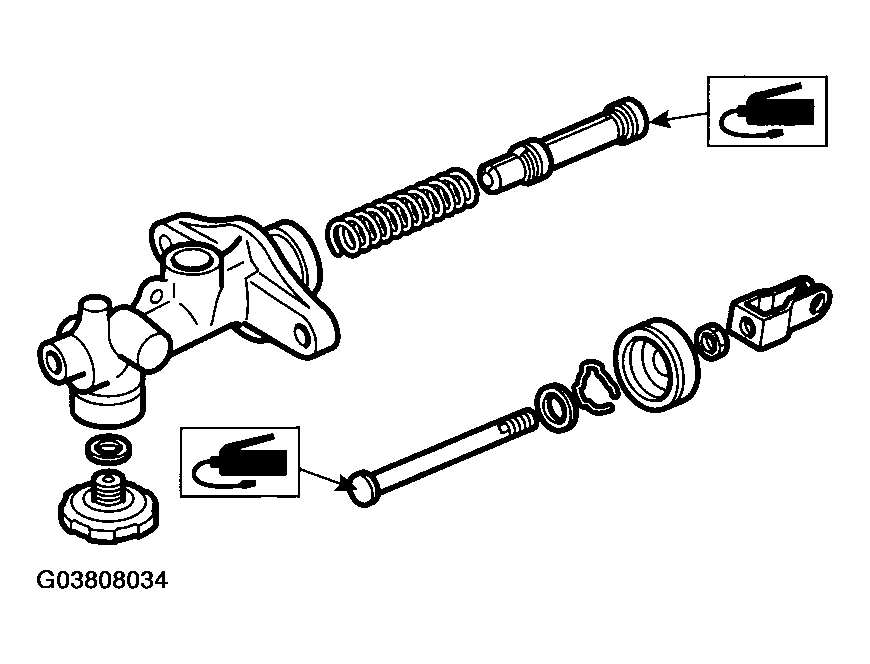

Fig 1: Assembling Master Cylinder Components
Courtesy of SUBARU OF AMERICA, INC.
To assemble the master cylinder, reverse the sequence of disassembly procedure.
Tightening torque:

10 N.m (1.0 kgf-m, 7.2 ft-lb)
