Special Tool
WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTIONS
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |

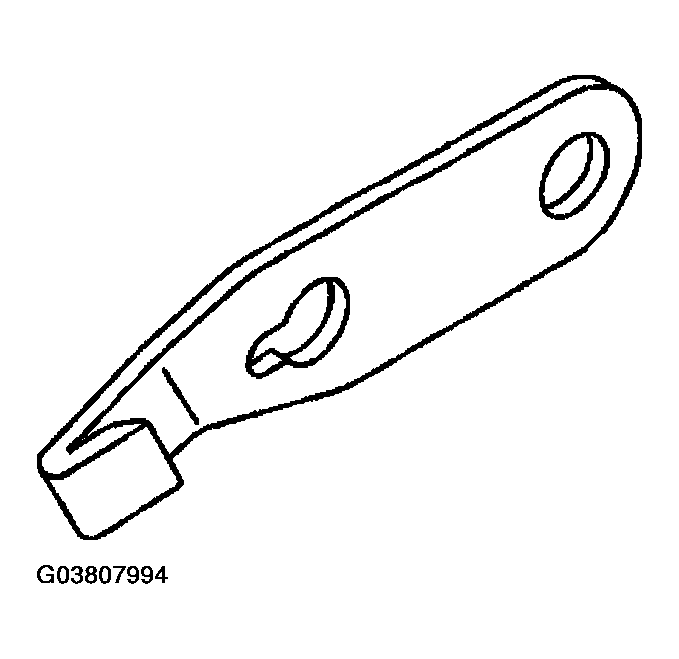

| Fig 1 |
498497100 |
CRANKSHAFT STOPPER |
Used for stopping rotation of flywheel when loosening tightening bolt, etc. |

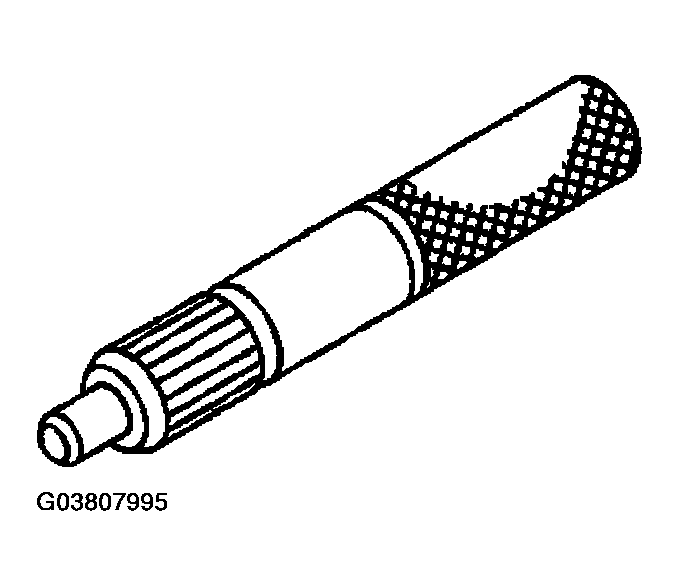

| Fig 2 |
499747100 |
CLUTCH DISC GUIDE |
Used when installing clutch disc to flywheel |
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
