Inspection Mode: Operation

Carry out trouble diagnosis shown in the following DTC table.

When performing trouble diagnosis which is not shown in the DTC table, refer to the next item Drive cycle.

< Ref. to DRIVE CYCLE . >

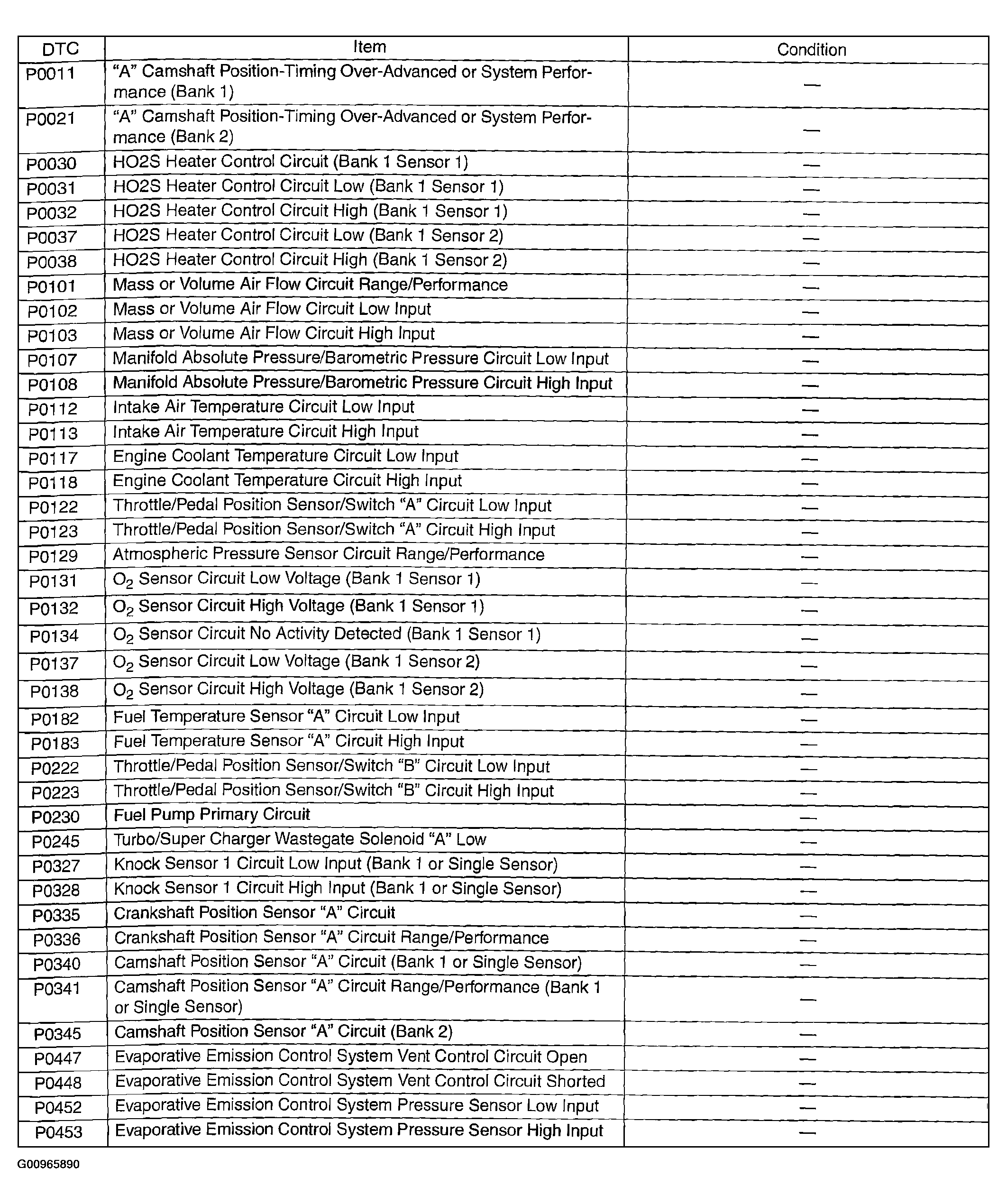

Fig 1: Trouble Diagnosis Table (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

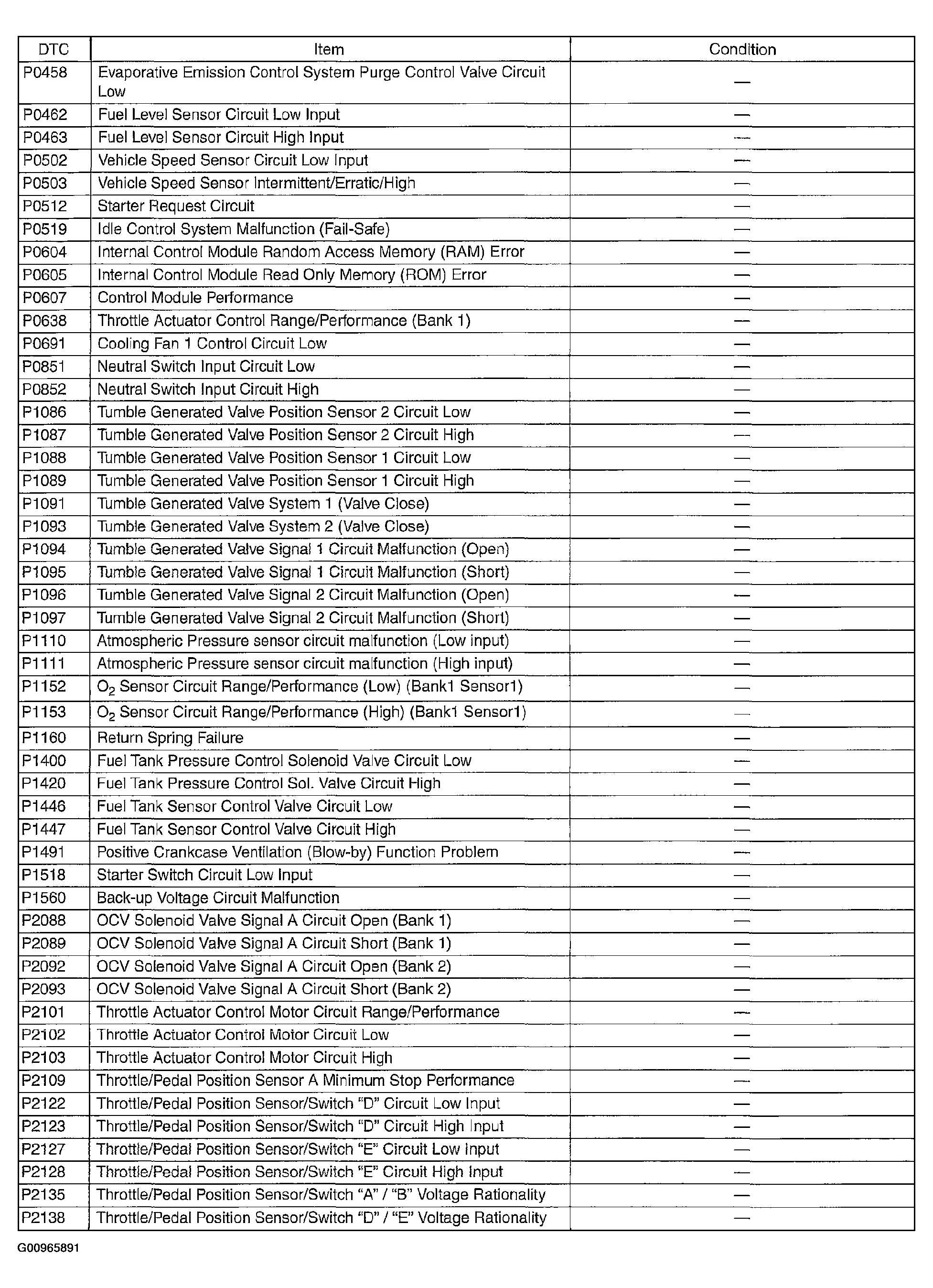

Fig 2: Trouble Diagnosis Table (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

PREPARATION FOR THE INSPECTION MODE
1. Make sure that the fuel remains approx. half amount [20 - 40 l (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)] and the battery voltage is 12 V or more.
2. Raise the vehicle using a garage jack and place on safety stands or drive the vehicle onto free rollers.
WARNING:
- Before raising the vehicle, ensure the parking brake is applied.
- Do not use a pantograph jack in place of a safety stand.
- Secure a rope or wire to the front and rear towing or tie-down hooks to prevent the lateral runout of front wheels.
- Do not abruptly depress/release the clutch pedal or accelerator pedal during works even when engine is operating at low speeds since this may cause vehicle to jump off free rollers.
- In order to prevent the vehicle from slipping due to vibration, do not place any wooden blocks or similar items between the safety stands and the vehicle.
- Since the rear wheels will also rotate, do not place anything near them. Also, make sure that nobody goes in front of the vehicle.

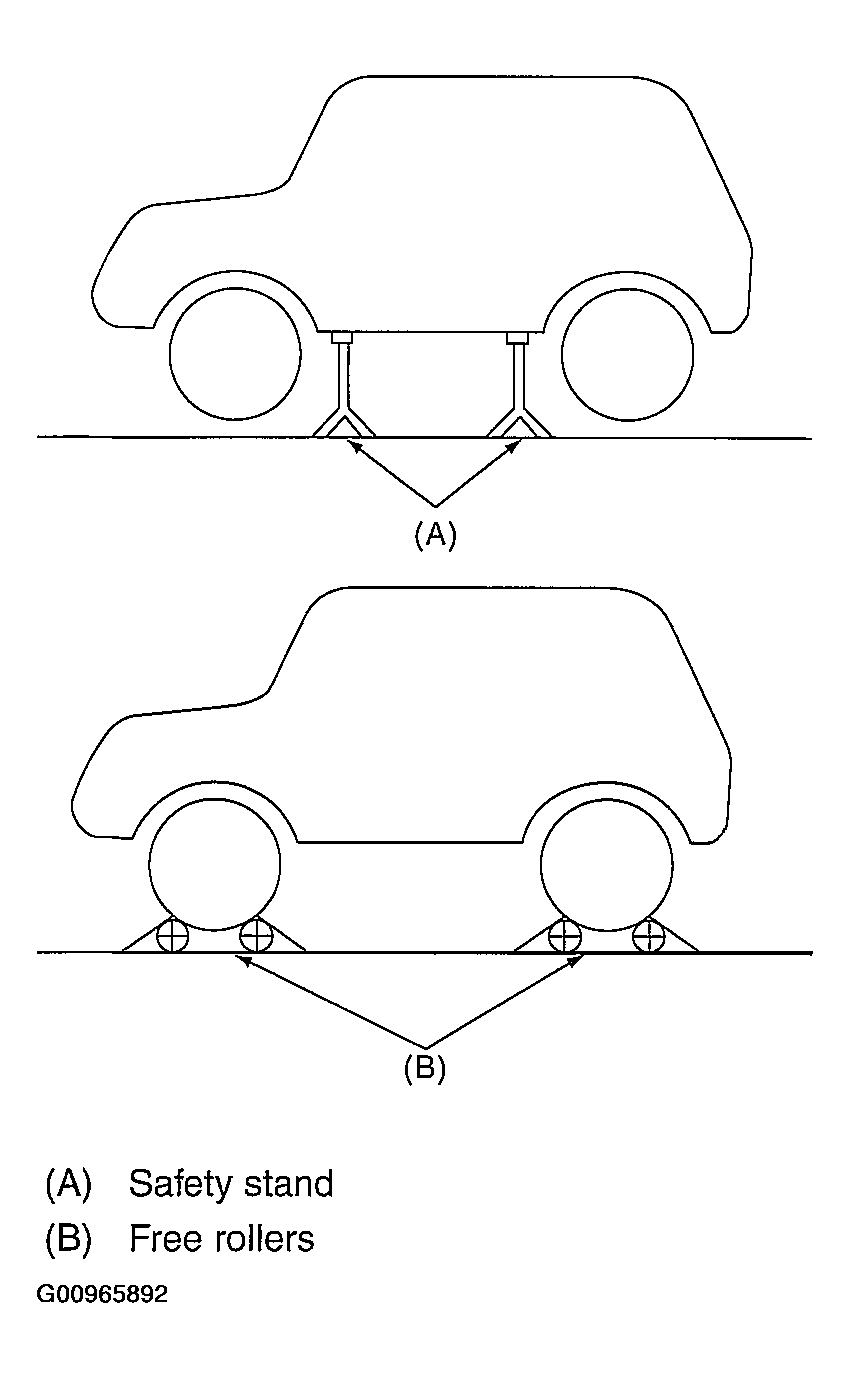

Fig 3: Placing Safety Stand Under Vehicle
Courtesy of SUBARU OF AMERICA, INC.
SUBARU SELECT MONITOR
1. Warm up the engine.
2. Prepare the Subaru Select Monitor kit. < Ref. to PREPARATION TOOL , General Description . >

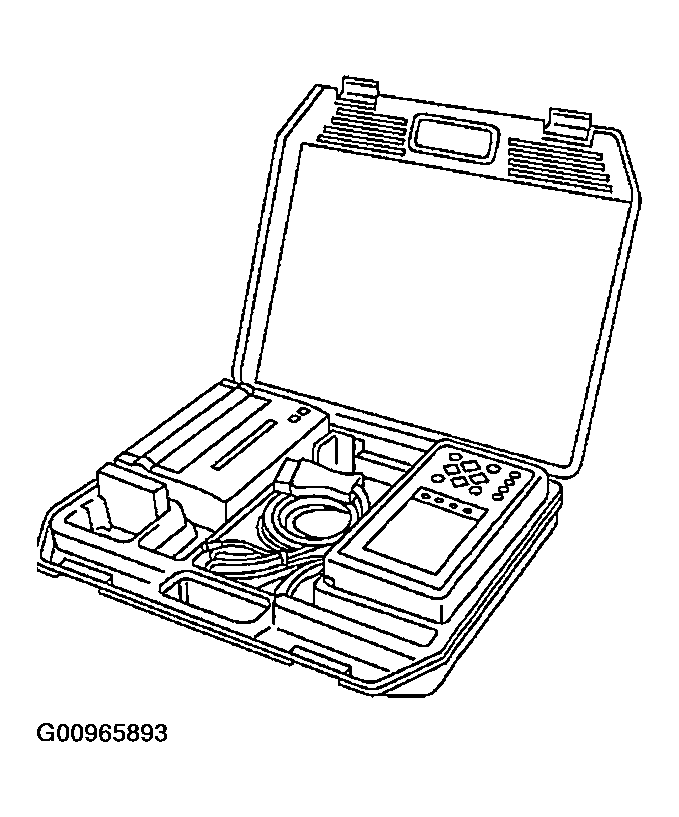

  Fig 4: Identifying Select Monitor Kit
  Courtesy of SUBARU OF AMERICA, INC.
3. Connect the diagnosis cable to Subaru Select Monitor.
4. Insert the cartridge into Subaru Select Monitor. < Ref. to PREPARATION TOOL , General Description . >

  Fig 5: Inserting Cartridge Into Subaru Select Monitor
  Courtesy of SUBARU OF AMERICA, INC.
5. Connect the test mode connector (A) at the lower portion of instrument panel (on the driver's side).

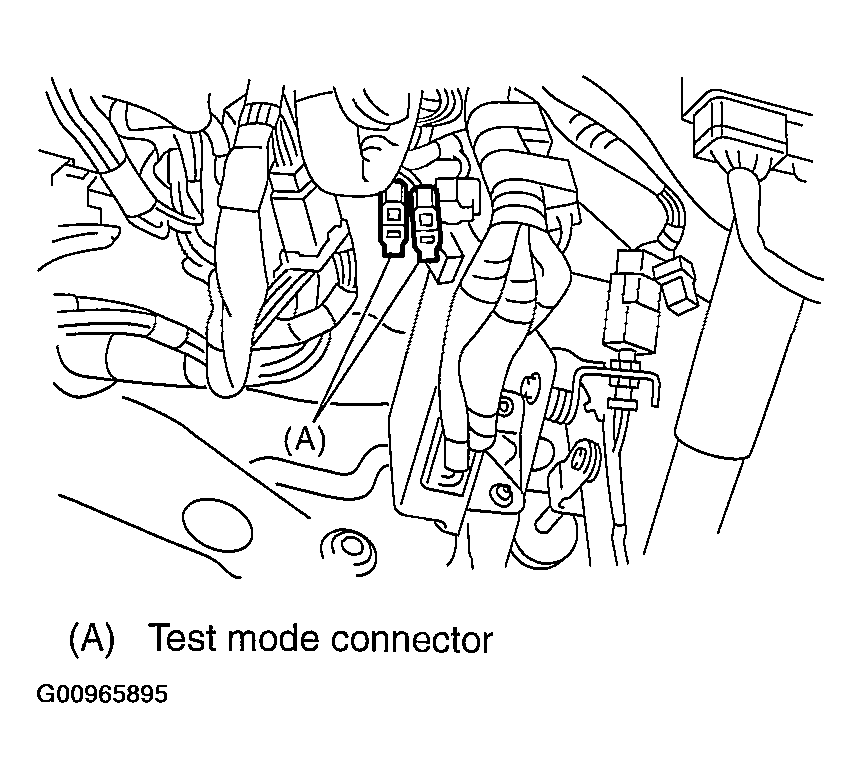

  Fig 6: Identifying Test Mode Connector
  Courtesy of SUBARU OF AMERICA, INC.
6. Connect the Subaru Select Monitor to data link connector located in the lower portion of the instrument panel (on the driver's side).

  Fig 7: Identifying Select Monitor
  Courtesy of SUBARU OF AMERICA, INC.

  CAUTION: Do not connect the scan tools except for Subaru Select Monitor and OBD-II general scan tool.
7. Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.

  Fig 8: Identifying Power Switch
  Courtesy of SUBARU OF AMERICA, INC.
8. On the << Main Menu >> display screen, select the {2. Each System Check} and press the [YES] key.
9. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
10. Press the [YES] key after the information of engine type is displayed.
11. On the << Engine Diagnosis >> display screen, select the {Dealer Check Mode Procedure} and press the [YES] key.
12. When the "Perform Inspection (Dealer Check) Mode?" is shown on the display screen, press the [YES] key.
13. Perform subsequent procedures as instructed on the display screen.
  - If trouble still remains in the memory, the corresponding DTC appears on the display screen.
NOTE:
- For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL. .
- For detailed concerning the DTC, refer to the List of Diagnostic Trouble Code (DTC).
- < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
- Release the parking brake.
- The speed difference between front and rear wheels may light either the ABS warning light, but this indicates no malfunctions. When the engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis function. < Ref. to CLEAR MEMORY MODE . >
OBD-II GENERAL SCAN TOOL
1. Warm up the engine.
2. Connect the test mode connector (A) at the lower side of instrument panel (on the driver's side).

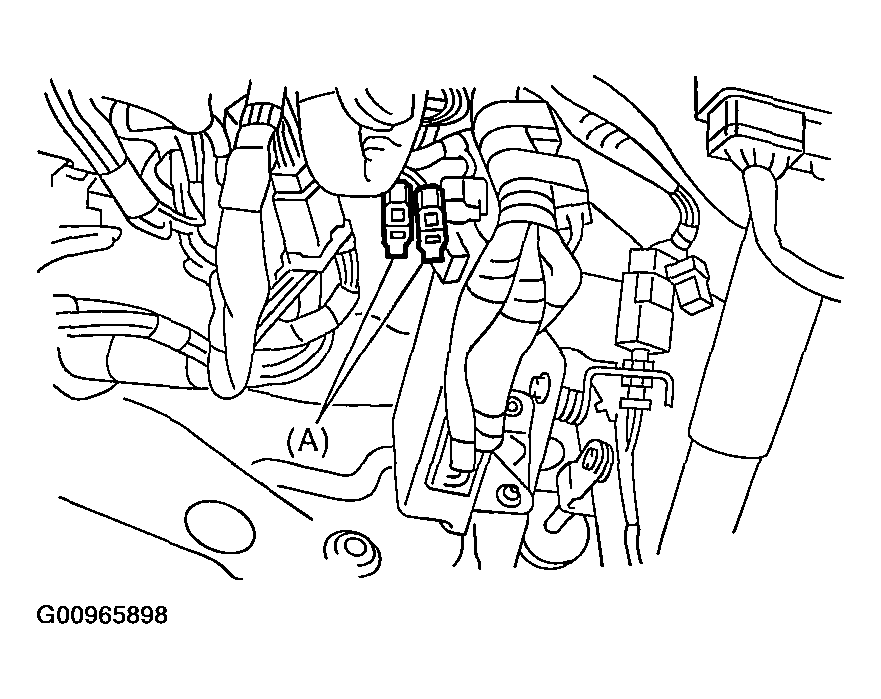

  Fig 9: Identifying Test Mode Connector
  Courtesy of SUBARU OF AMERICA, INC.
3. Connect the OBD-II general scan tool to its data link connector in the lower portion of instrument panel (on the driver's side).
  CAUTION: Do not connect the scan tools except for Subaru Select Monitor and OBD-II general scan tool.

  Fig 10: Identifying Select Monitor
  Courtesy of SUBARU OF AMERICA, INC.
4. Start the engine.
  NOTE:
  - Ensure the selector lever is placed in "P" position before starting. (AT model)
  - Depress the clutch pedal when starting engine. (MT model)
5. Using the selector lever or shift lever, turn the "P" position switch and "N" position switch to ON.
6. Depress the brake pedal to turn brake switch ON. (AT model)
7. Keep the engine speed in 2,500 -- 3,000 rpm range for 40 seconds.
8. Place the selector lever or shift lever in "D" position (AT model) or "1st" gear (MT model) and drive the vehicle at 5 to 10 km/h (3 to 6 MPH).
  NOTE:
  - On AWD model, release the parking brake.
  - The speed difference between front and rear wheels may light ABS warning light, but this indicates no malfunctions. When the engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis function. < Ref. to CLEAR MEMORY MODE . >
9. Using the OBD-II general scan tool, check for DTC and record the result(s).
  NOTE:
  - For detailed operation procedures, refer to the OBD-II General Scan Tool Instruction Manual .
  - For detailed concerning DTC, refer to the List of Diagnostic Trouble Code (DTC).
    < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
