General Diagnostic Table: Inspection

  1. ENGINE
    NOTE: Malfunction of parts other than those listed is also possible. < Ref. to ENGINE TROUBLE IN GENERAL . >

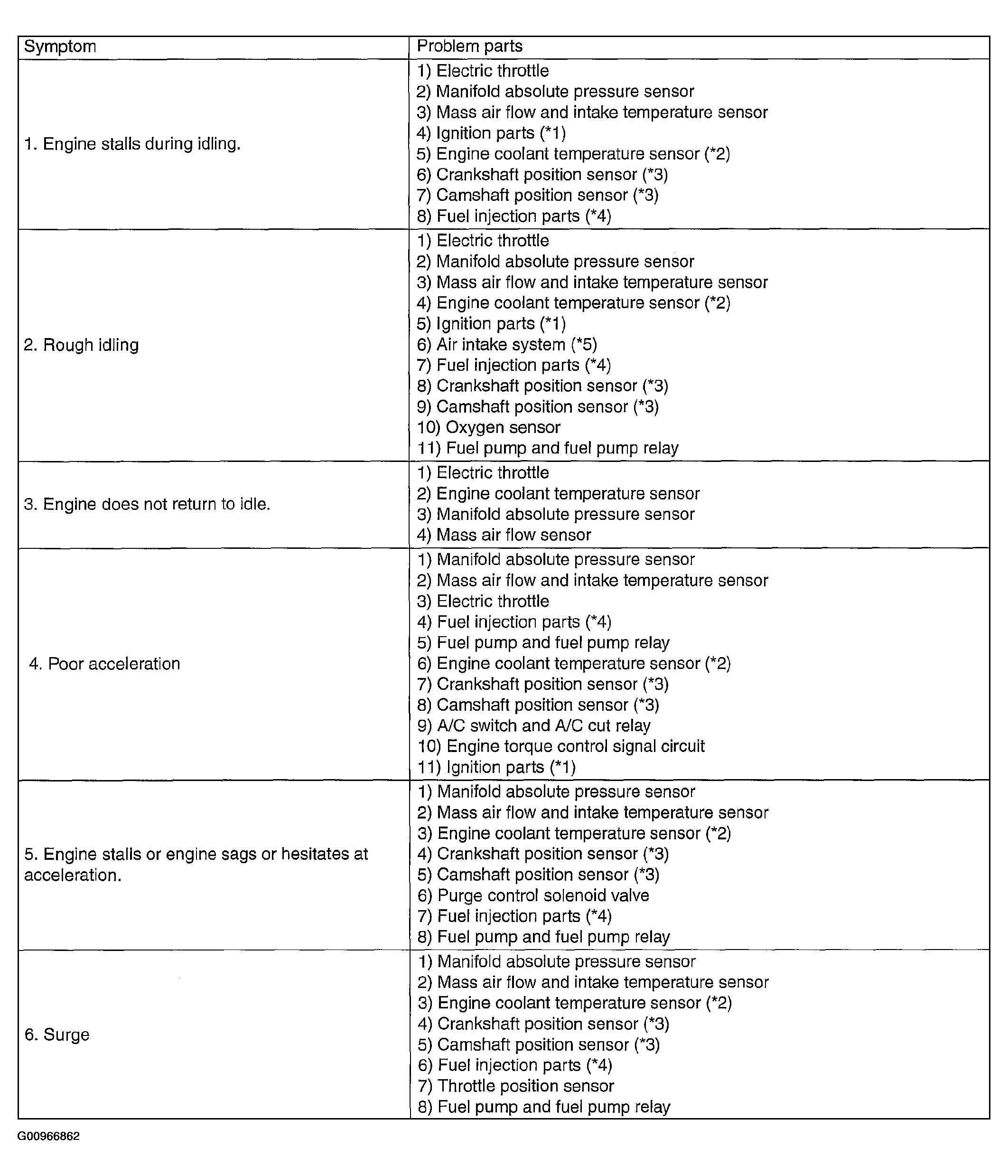

    Fig 1: General Diagnostic Table (1 Of 2)
    G00966862Courtesy of SUBARU OF AMERICA, INC.

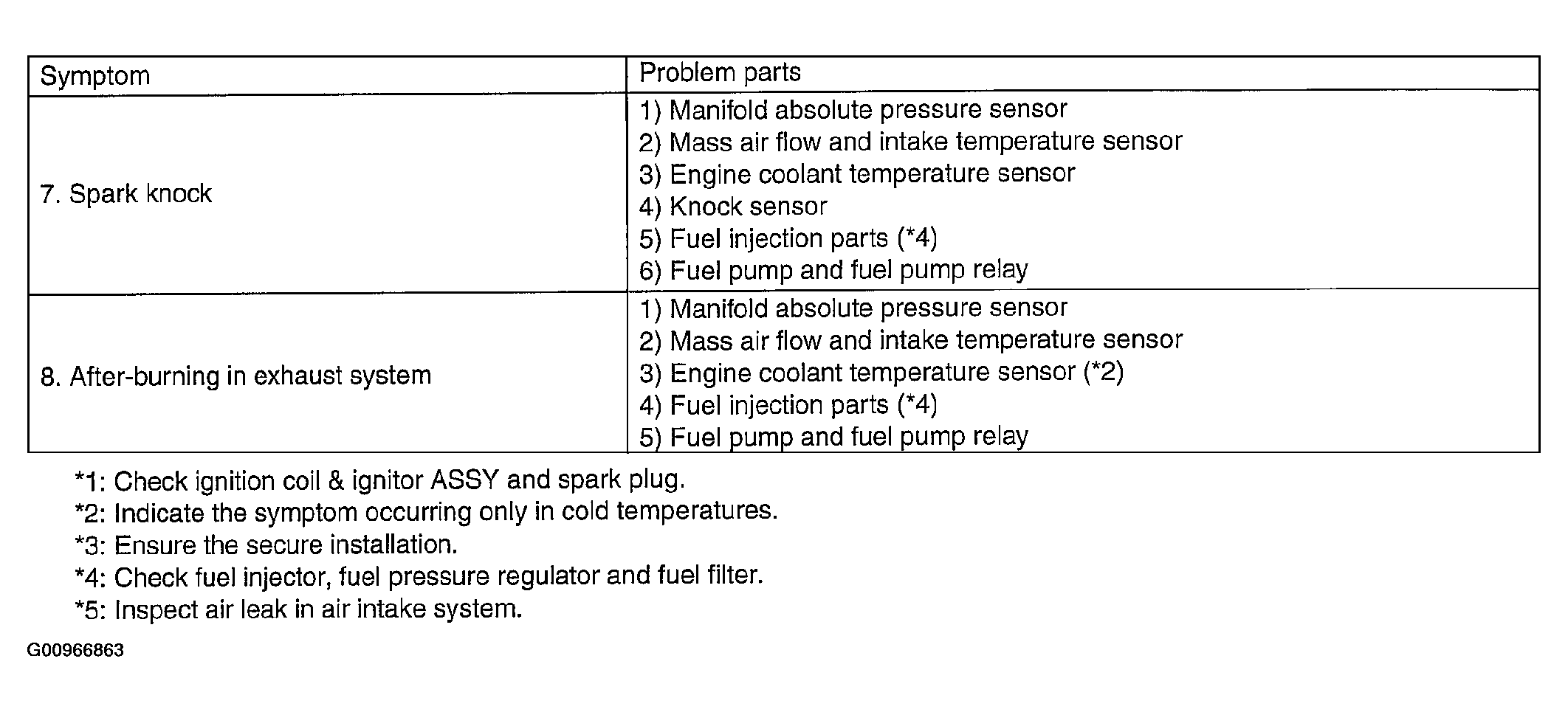

    Fig 2: General Diagnostic Table (2 Of 2)
    G00966863Courtesy of SUBARU OF AMERICA, INC.
