Releasing Of Fuel Pressure

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill the fuel.
  1. Disconnect the connector from the fuel pump relay.

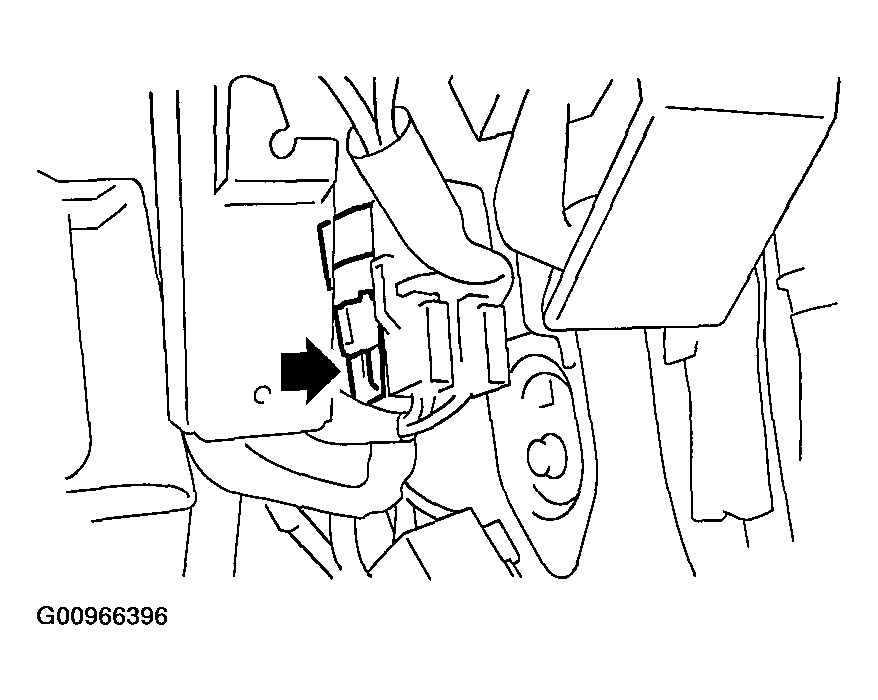

    Fig 1: Identifying Fuel Pump Relay
    G00966396Courtesy of SUBARU OF AMERICA, INC.
  2. Start and run the engine until it stalls.
  3. After the engine stalls, crank it for five more seconds.
  4. Turn the ignition switch to OFF.
