Home >> Subaru >> 2004 >> Forester XT, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> General Description >> Specifications

Engine Cooling System: General Description: Specifications

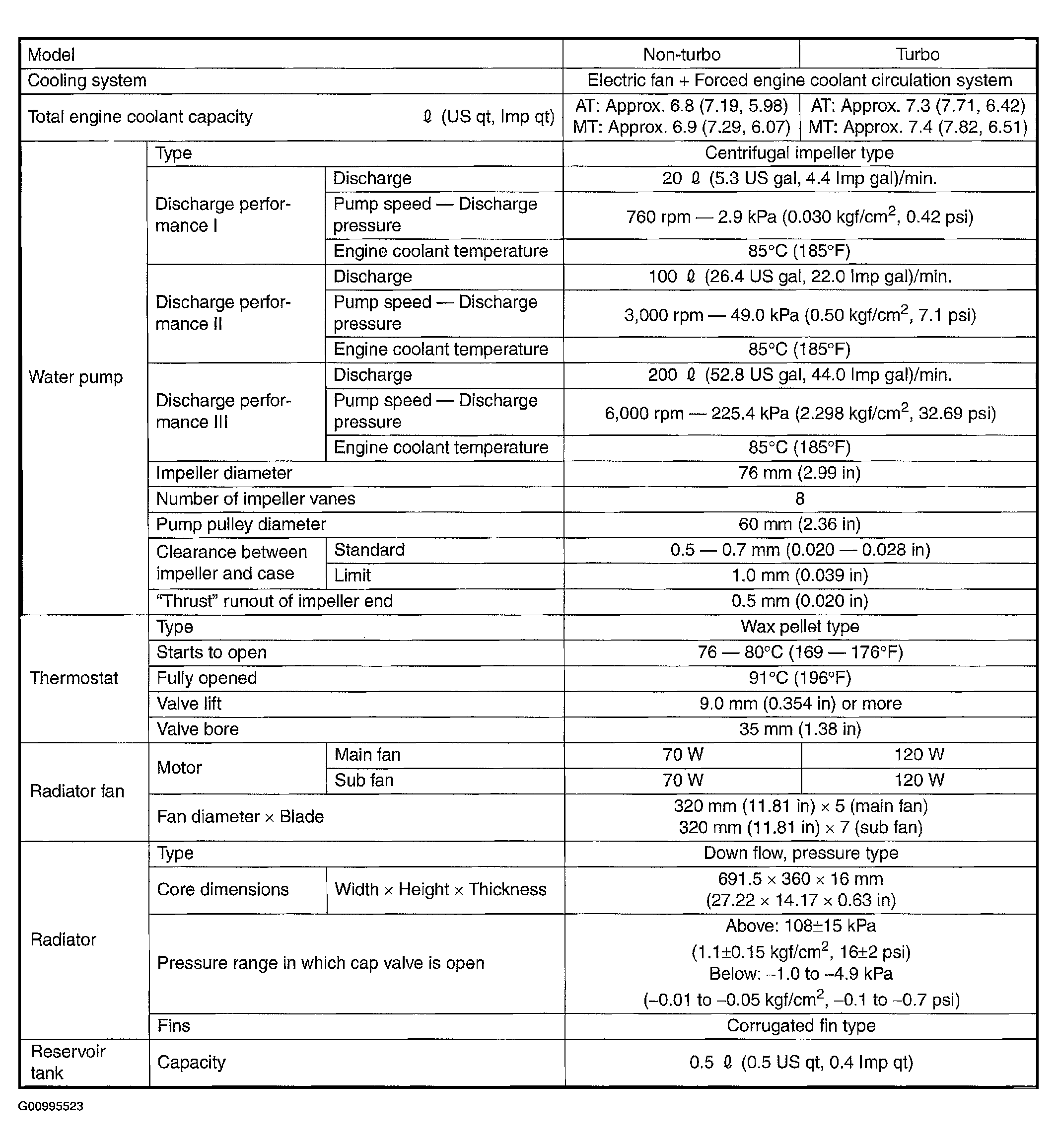

Fig 1: General Description Specifications Chart

G00995523

Courtesy of SUBARU OF AMERICA, INC.
