Under-Hood Fuse/Relay Box
NOTE:

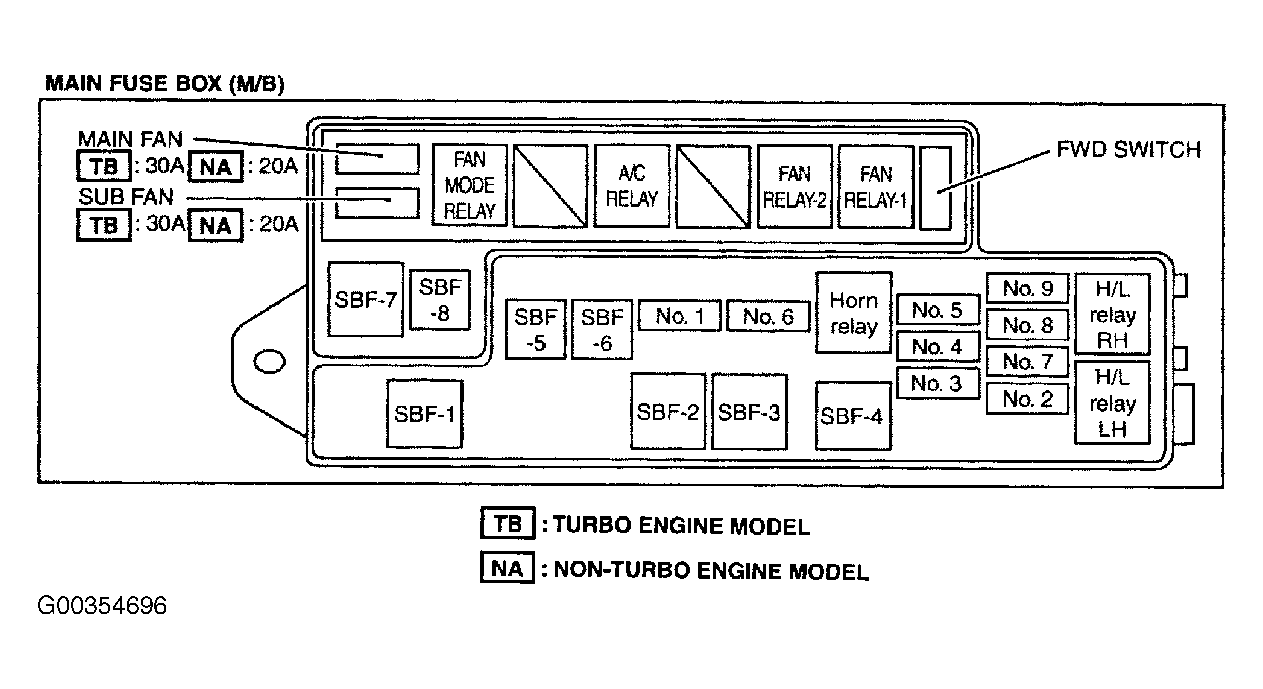

Under-hood fuse/relay box is located in the side of engine compartment. See Fig 1
.
UNDER-HOOD FUSE/RELAY BOX LEGEND
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| 1 | 20A | Rear Window Defogger |
| 2 | 15A | Clock, Interior Light |
| 3 | 10A | Alternator |
| 4 | 10A | Automatic Transmission Control Unit, ABS UNIT |
| 5 | 15A | Meter, SRS Airbag System Warning Light |
| 6 | 15A | Hazard Warning Flasher, Horn |
| 7 | 20A | Lighting Switch |
| 8 | 15A | Headlight (left side) |
| 9 | 15A | Headlight (right side) |
