Rear Differential Member: Installation

Install in the reverse order of removal.

1. Position the front member on body by passing it under the parking brake cable and securing to rear differential.
   NOTE: When Identifying the rear differential front member, do not confuse the installation sequence of the stopper.

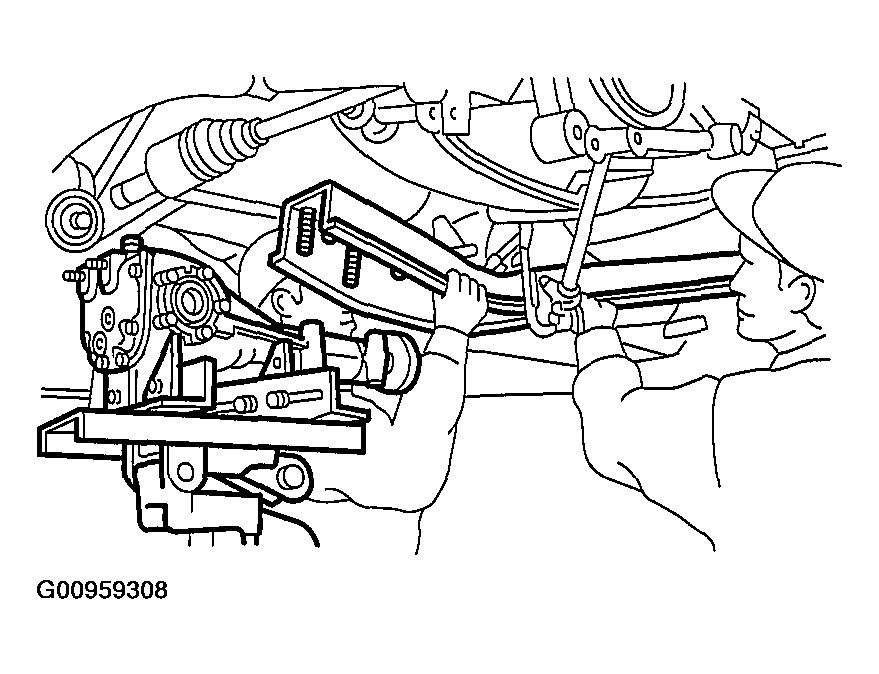

   Fig 1: Identifying Rear Differential Front Member

   Courtesy of SUBARU OF AMERICA, INC.
2. Insert the DOJ of rear drive shaft into rear differential. < Ref. to REPLACEMENT x.>
   NOTE: Before inserting, replace the differential side oil seal with a new one.

   ST 28099PA090 SIDE OIL SEAL PROTECTOR

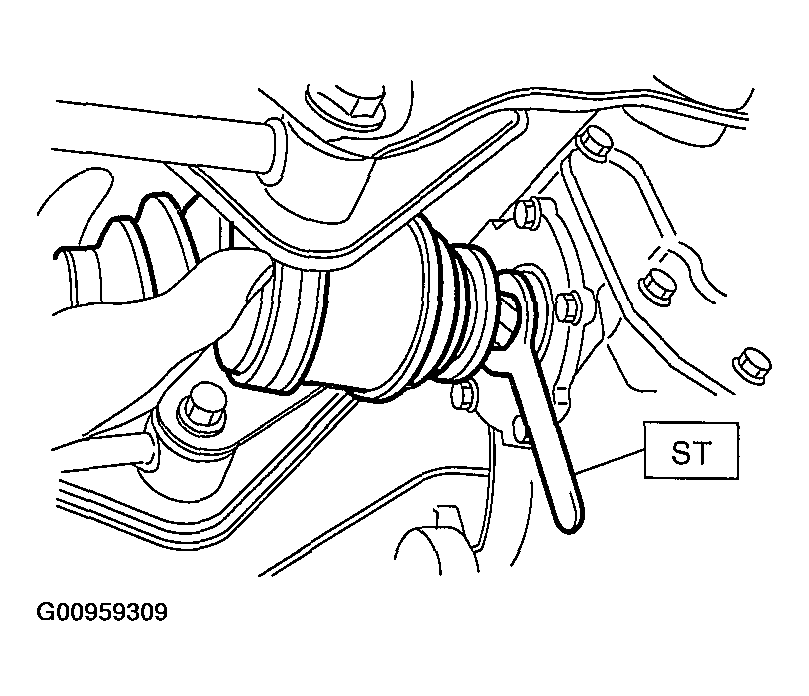

   Fig 2: Identifying Differential Side Oil Seal

   Courtesy of SUBARU OF AMERICA, INC.
3. Hereafter, install in the reverse order of removal.
