Rear Differential Member: Disassembly

NOTE: Clean the rear differential member before disassembly.
  1. Remove the bolt (A) and (B) which connect front differential member and differential mounting bracket.

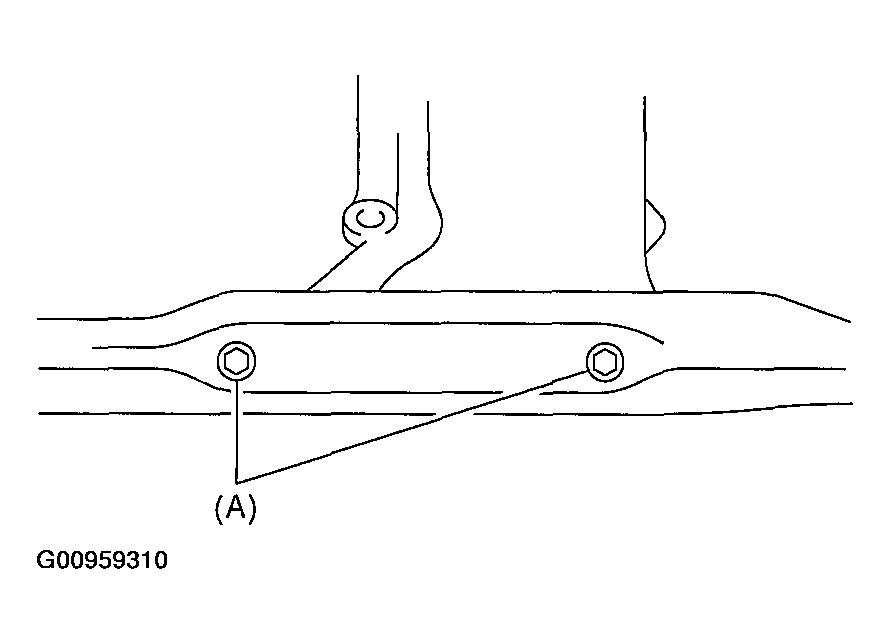

    Fig 1: Identifying Bolts & Differential Mounting Bracket
    G00959310Courtesy of SUBARU OF AMERICA, INC.

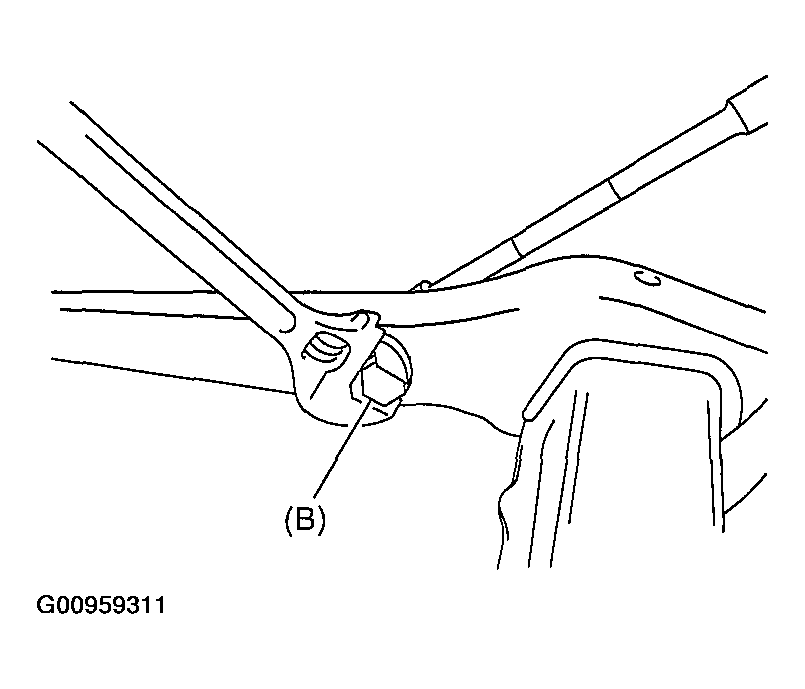

    Fig 2: Identifying Bolts & Differential Mounting Bracket
    G00959311Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the dynamic damper from front differential member.

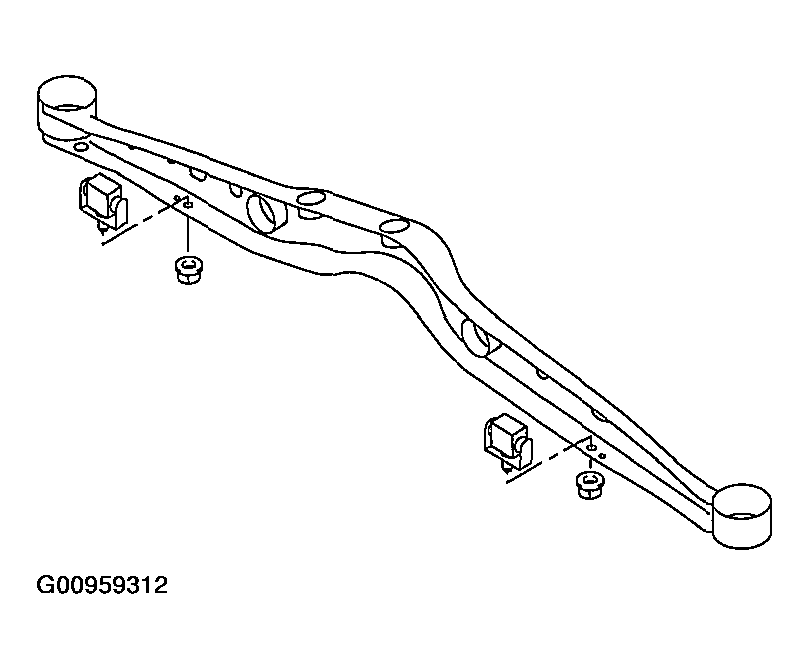

    Fig 3: Identifying Dynamic Damper & Front Differential Member
    G00959312Courtesy of SUBARU OF AMERICA, INC.
