Rear Differential Member: Assembly

Install the dynamic damper to front differential member.
Tightening torque:

20 N.m (2.0 kgf-m, 14.5 ft-lb)
Temporarily tighten the connecting bolt (A) which secures front differential to differential mount.

Fig 1: Tightening Bolts To Differential Mount (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the nut of connecting bolt (B).
Tightening torque:

125 N.m (12.7 kgf-m, 92.2 ft-lb)

Fig 2: Tightening Bolts To Differential Mount (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the nut of connecting bolt (A).
Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)

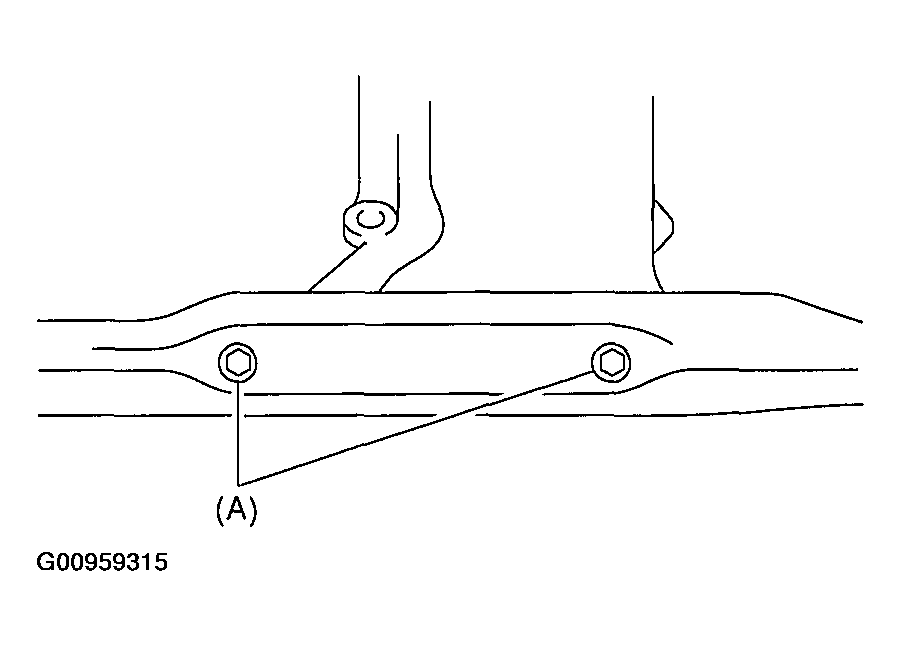

Fig 3: Tightening Bolts To Differential Mount (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
