General Description
>>
Specifications
>>
Adjusting Parts
Adjusting Parts

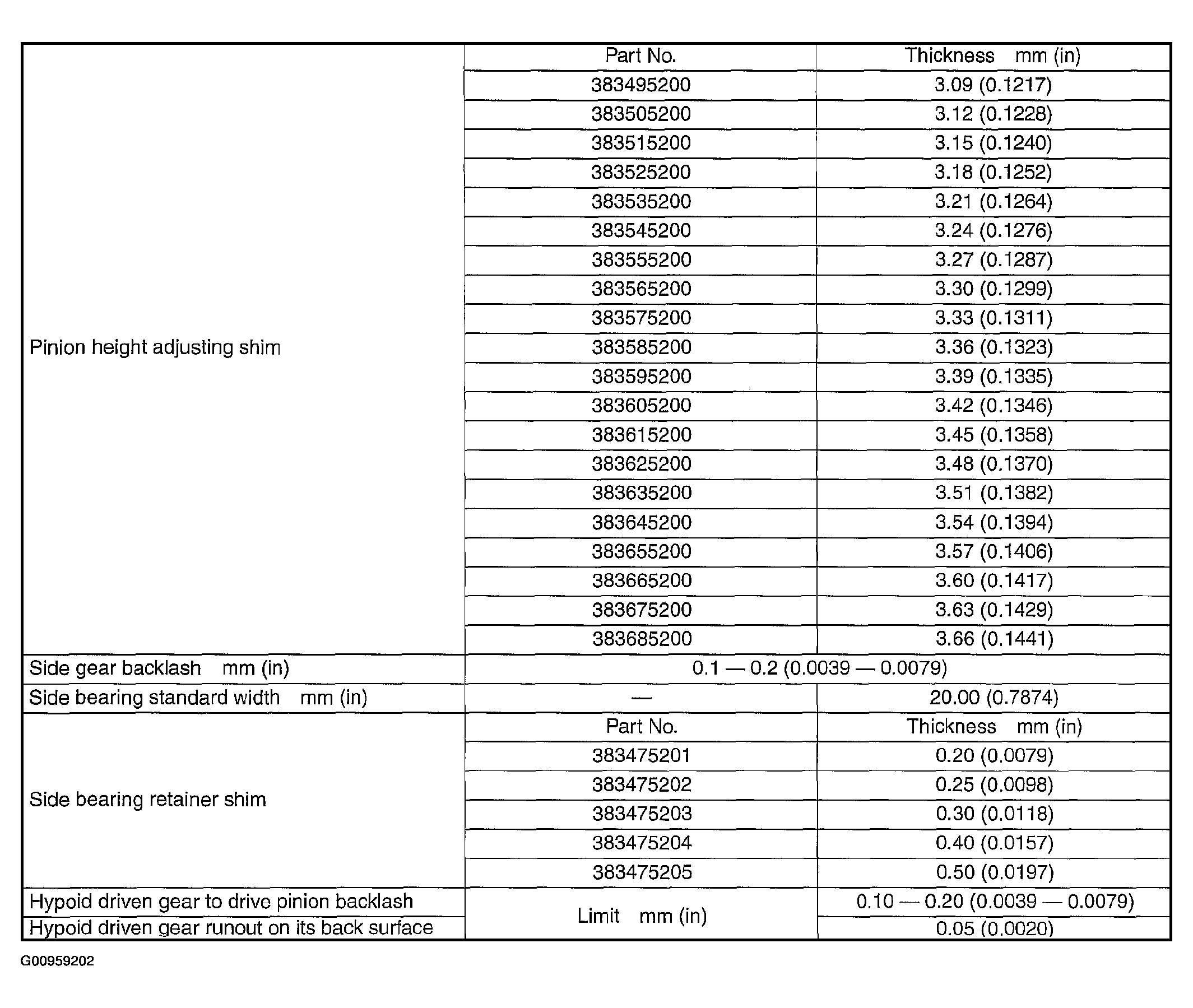

Fig 1: Description Chart Of Adjusting Parts (1 of 2)
Courtesy of SUBARU OF AMERICA, INC.

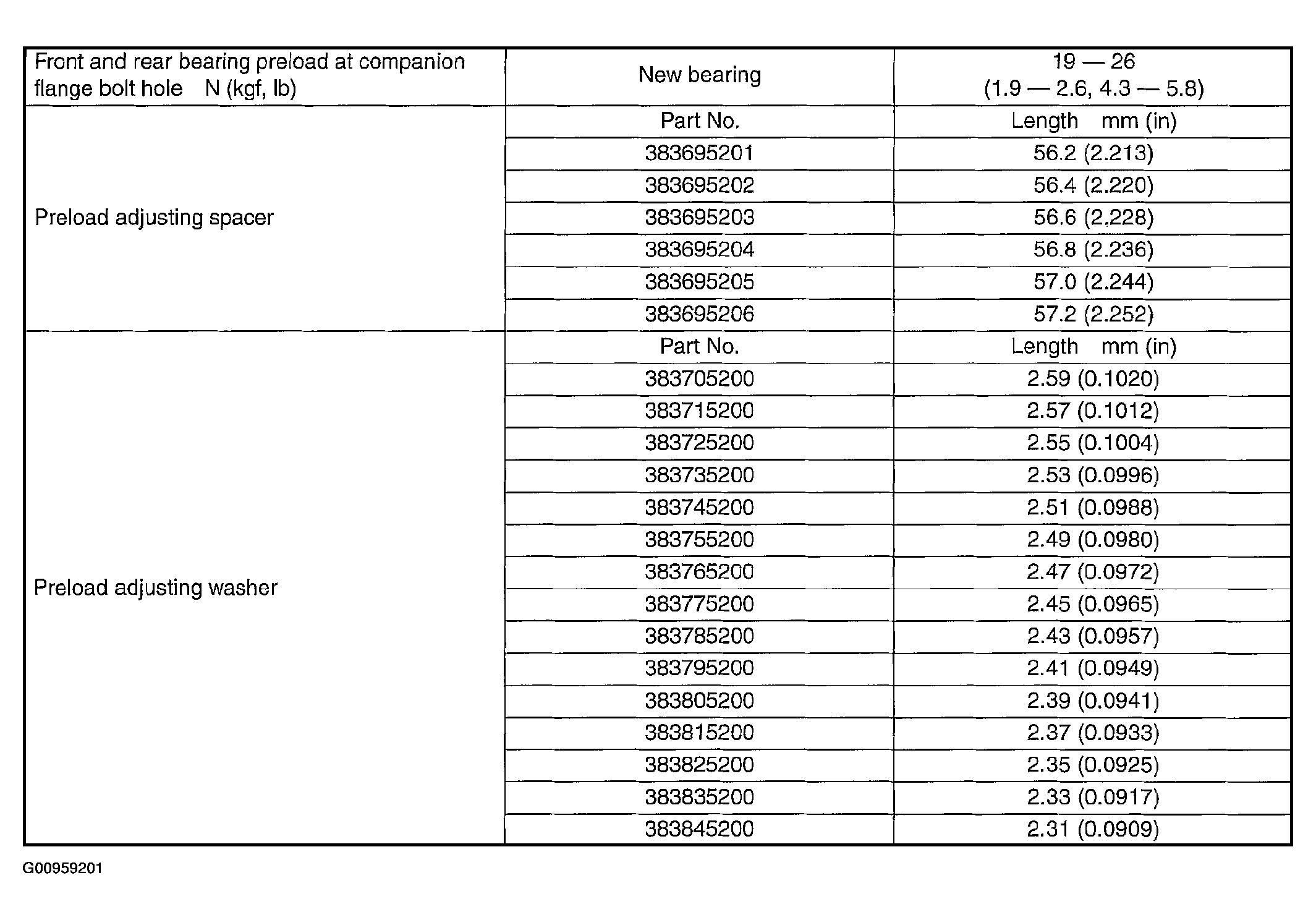

Fig 2: Description Chart Of Adjusting Parts (2 of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
