Rear Differential With LSD

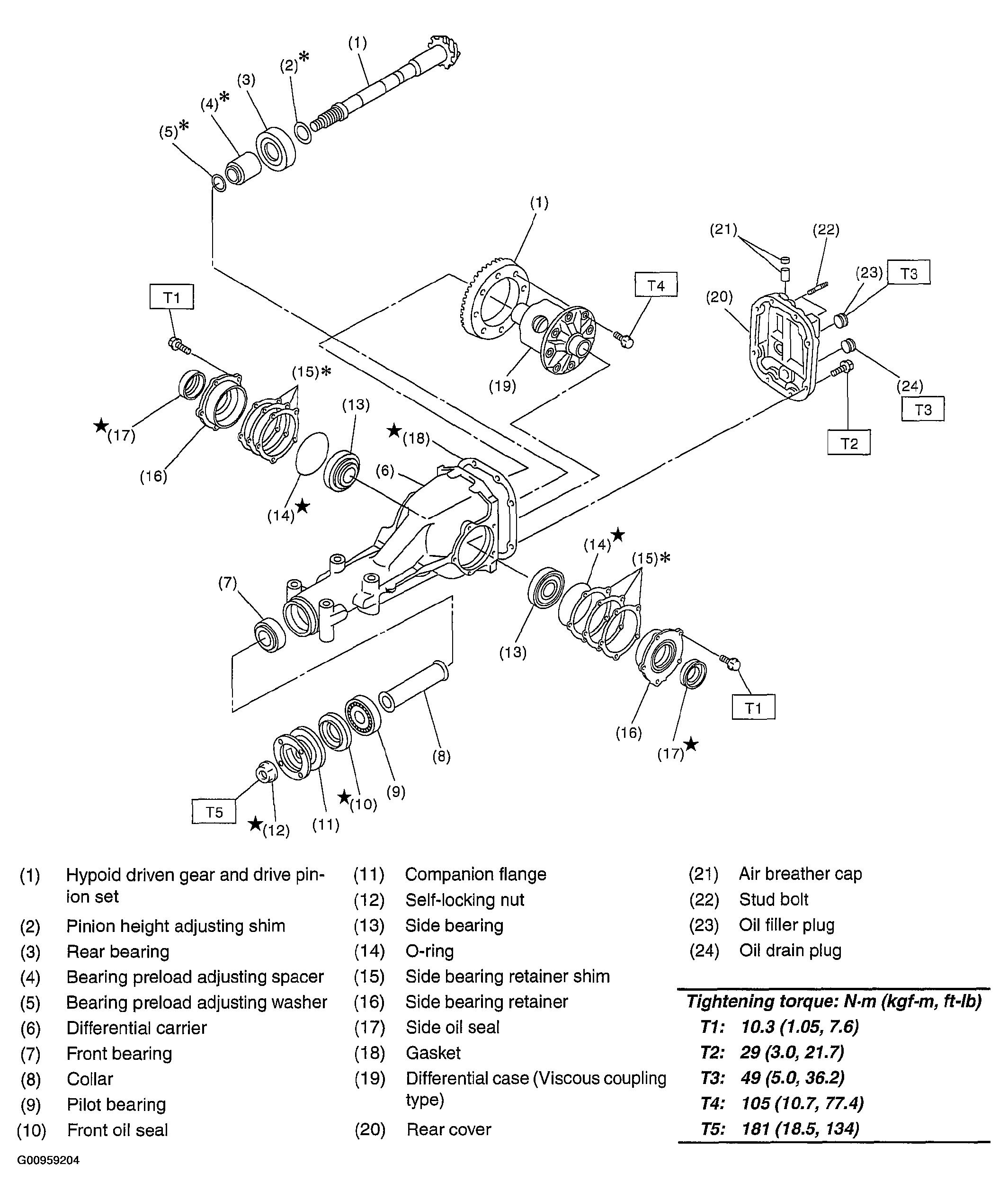

Fig 1: Exploded View Of Rear Differential With LSD

G00959204

Courtesy of SUBARU OF AMERICA, INC.
