Using Windshield Knife
- Remove the cowl panel < Ref. to REMOVAL
, Cowl Panel
.>
- Remove the glass molding.
- Tape the body side of the circumference of windshield glass for protection.
- Apply sufficient amount of soapy water to the adhesive layer.

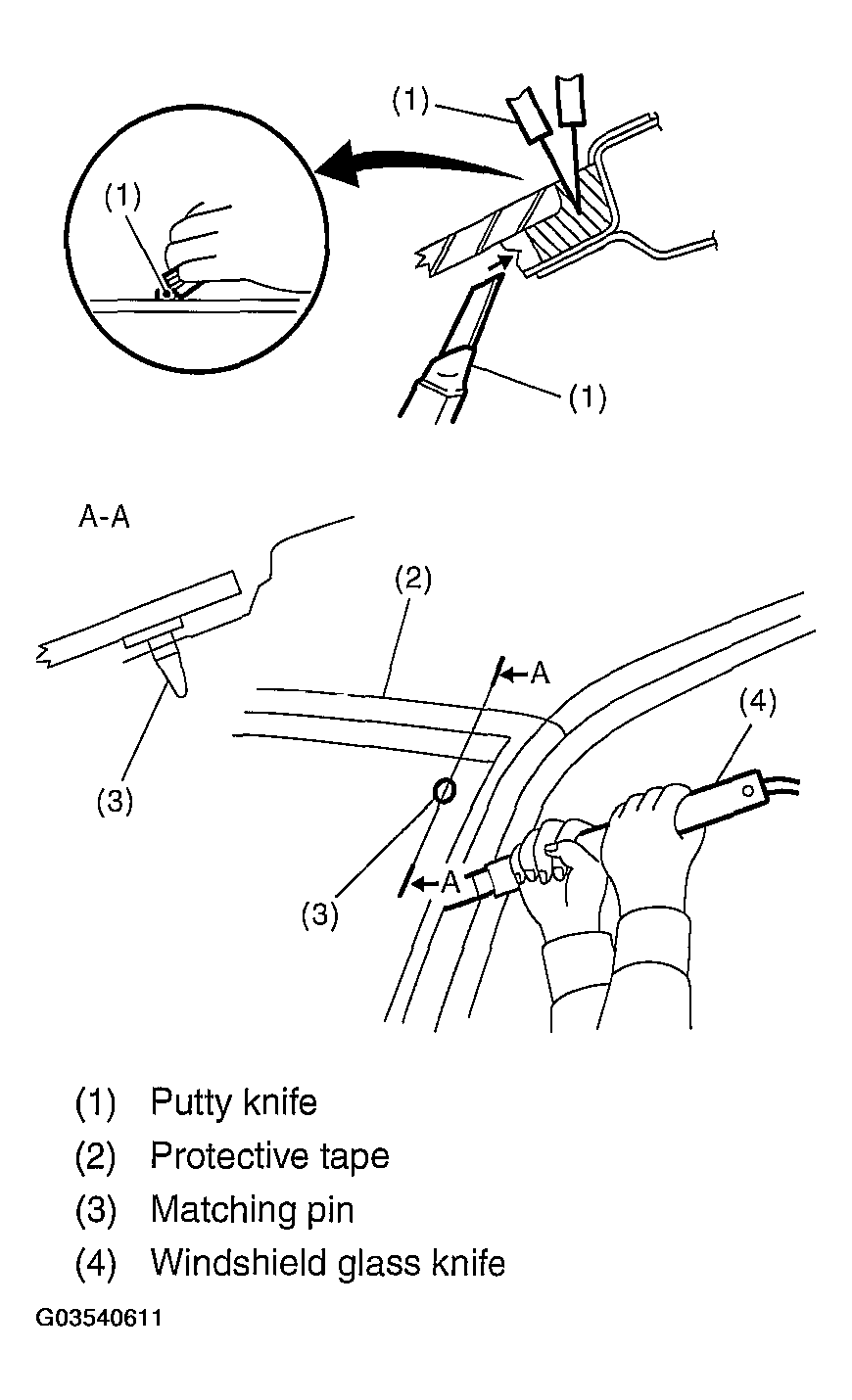

- Insert the windshield knife into the adhesive layer.
- While holding the knife edge and windshield glass edge at a right angle, move the windshield knife in parallel to the windshield glass edge along face and edge of windshield glass to cut the adhesive layer.
NOTE:
- Do not twist the windshield knife.
- Cutting of adhesive layer shall be started with wider gap between windshield glass and body.

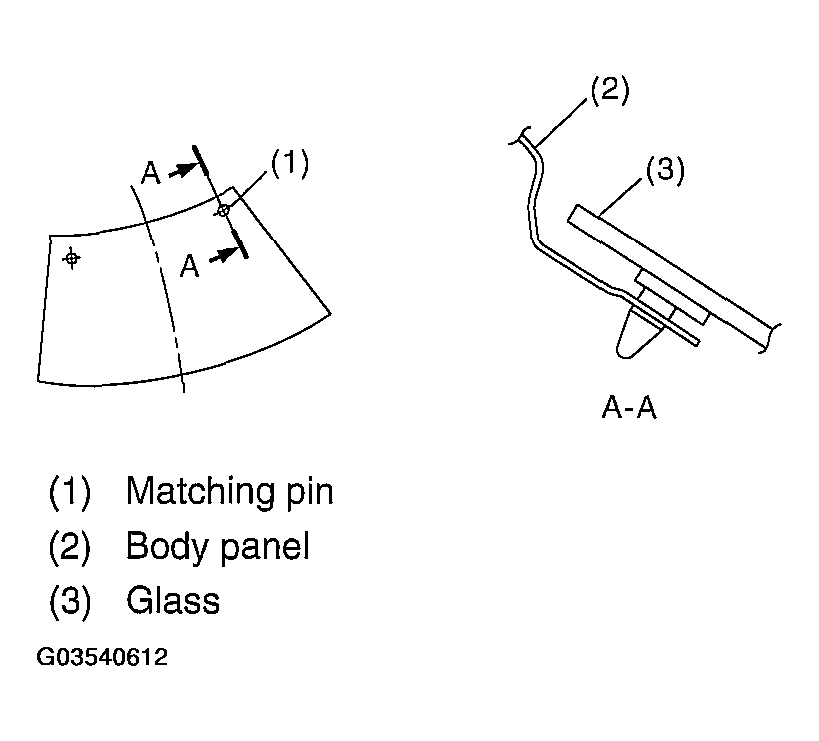

- Because the matching pins are bonded to corners of glass, use piano wire to cut the pin.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
