Mode $02 (Powertrain Freeze Frame Data)

Refers to data denoting the operating condition when trouble is sensed by the on-board diagnosis system. A list of the support data and PID (Parameter Identification) codes are shown in the following table.

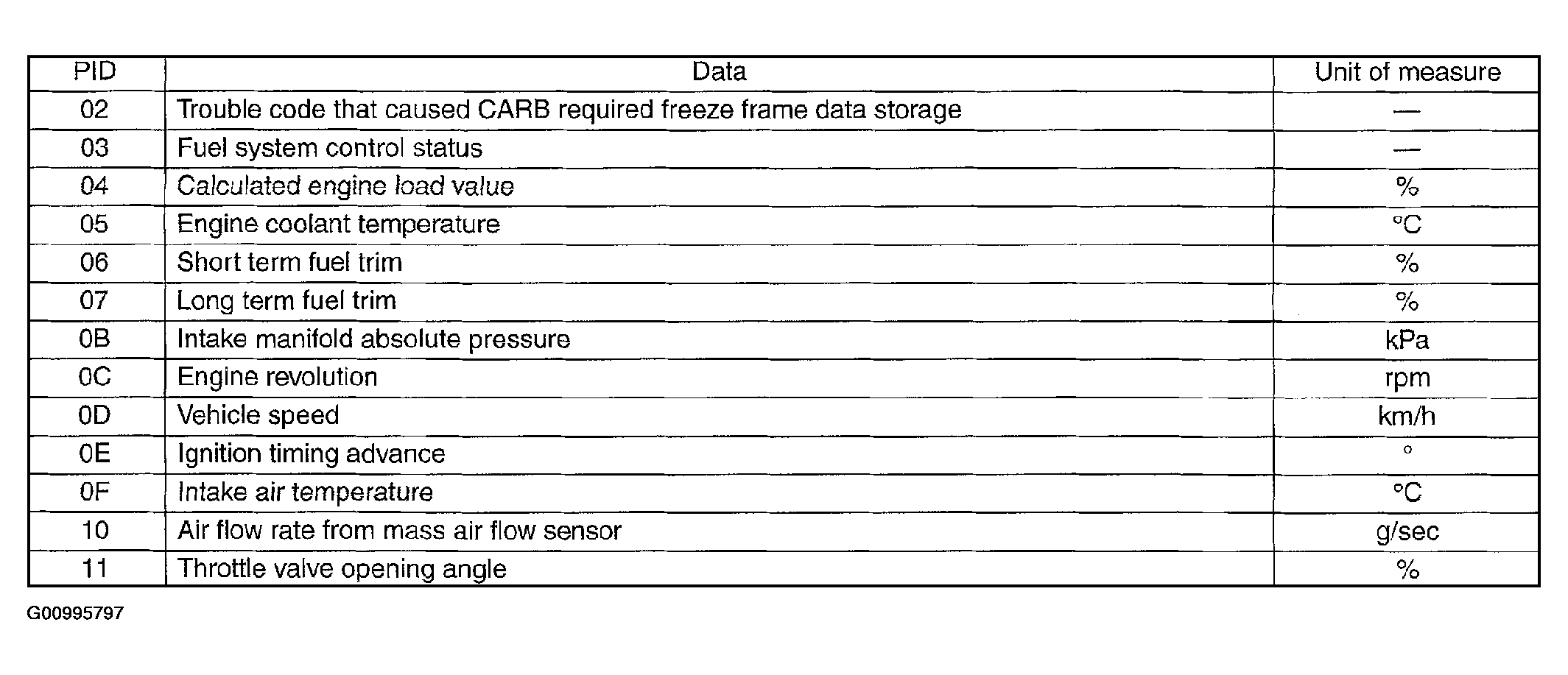

Fig 1: Support Data & PID Codes List (MODE $02 (Powertrain Freeze Frame Data))

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Refer to OBD-II general scan tool manufacturer's instruction manual to access freeze frame data (MODE $02).
