Oil Pressure System: Inspection

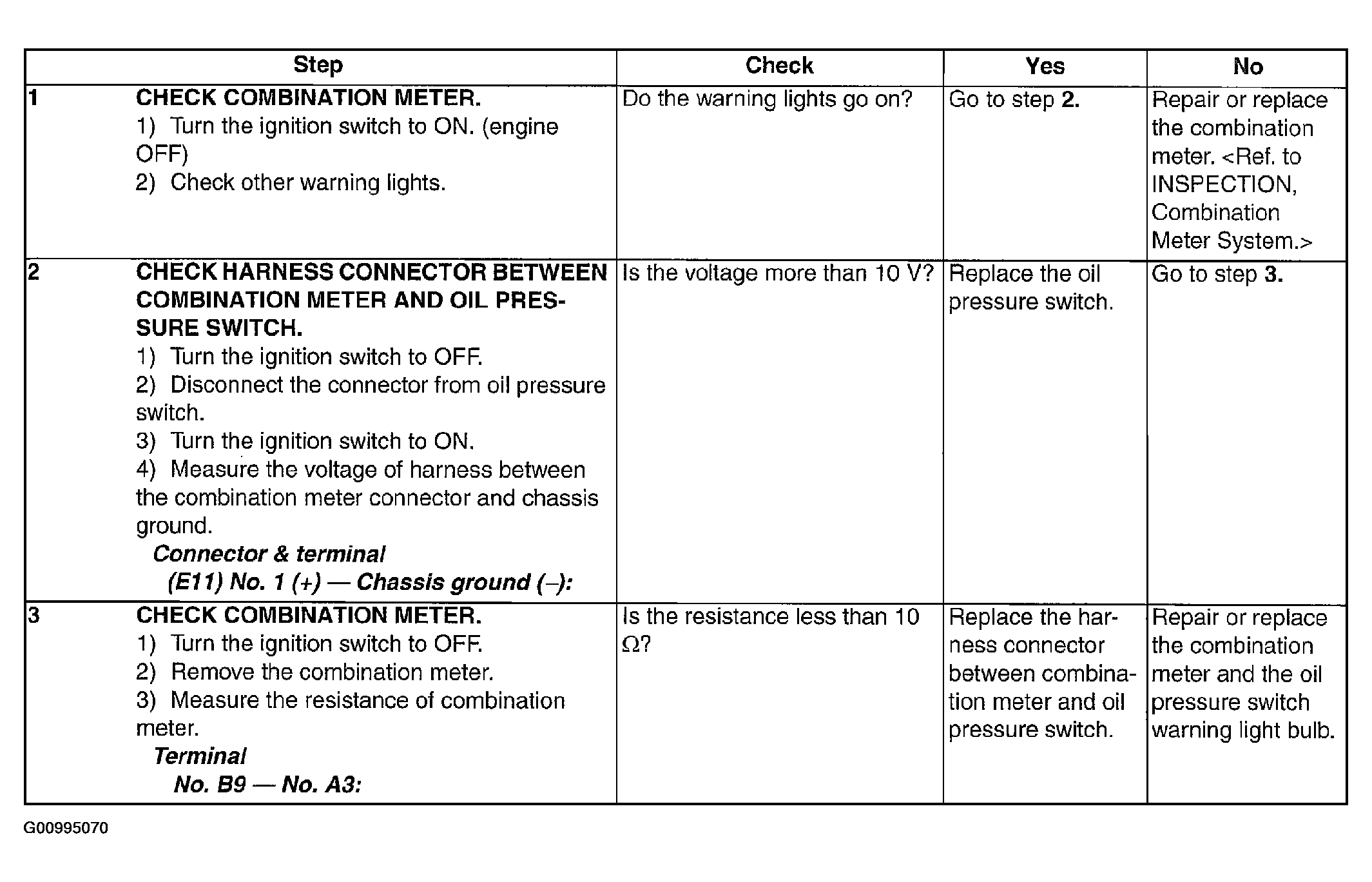

Fig 1: Inspection Chart

G00995070

Courtesy of SUBARU OF AMERICA, INC.
