Oil Pressure Switch: Installation

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

Parts No. 004403042

THREE BOND 1324 or equivalent

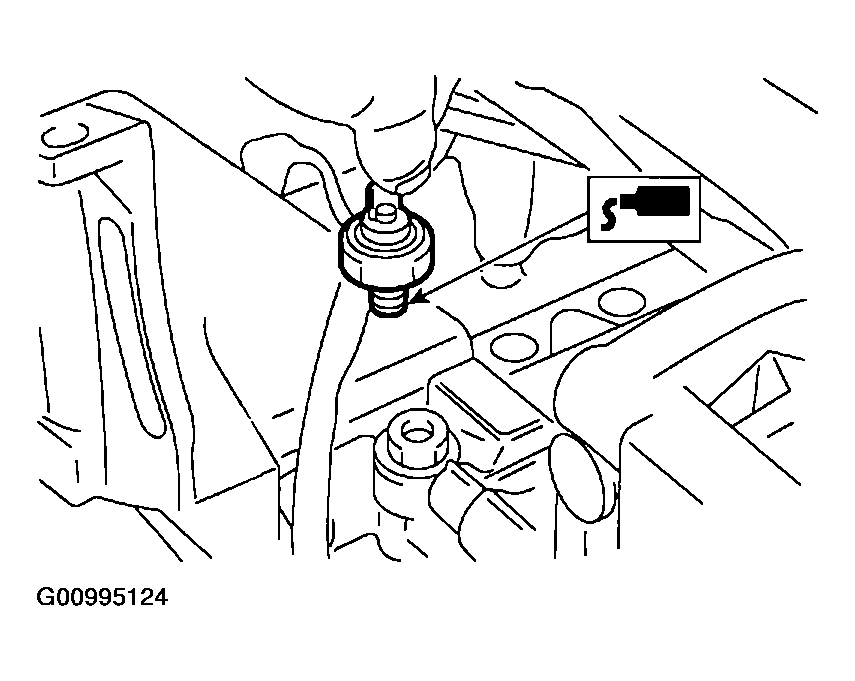

Fig 1: Applying Liquid Gasket To Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch onto engine block.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

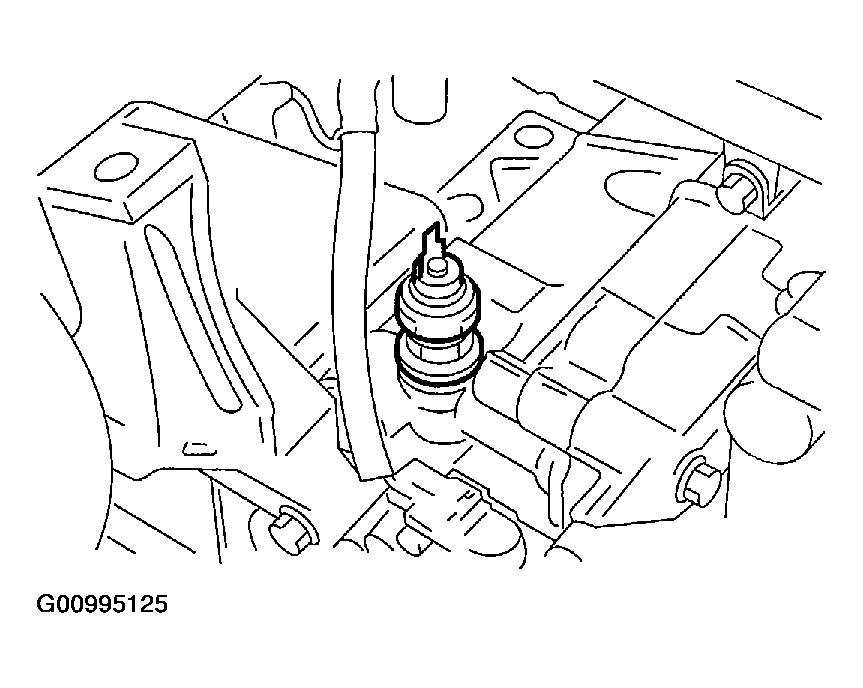

Fig 2: Installing Oil Pressure Switch Onto Engine Block
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal of oil pressure switch.

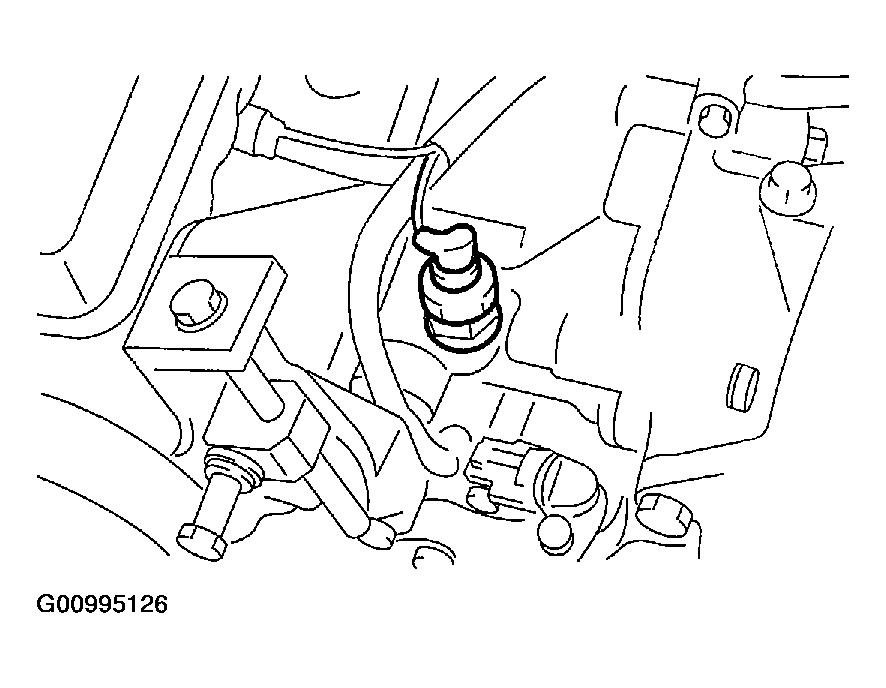

Fig 3: Connecting Terminal Of Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the generator on bracket. Refer to INSTALLATION , Generator.
