Lubrication (H4SO): General Description: Preparation Tool

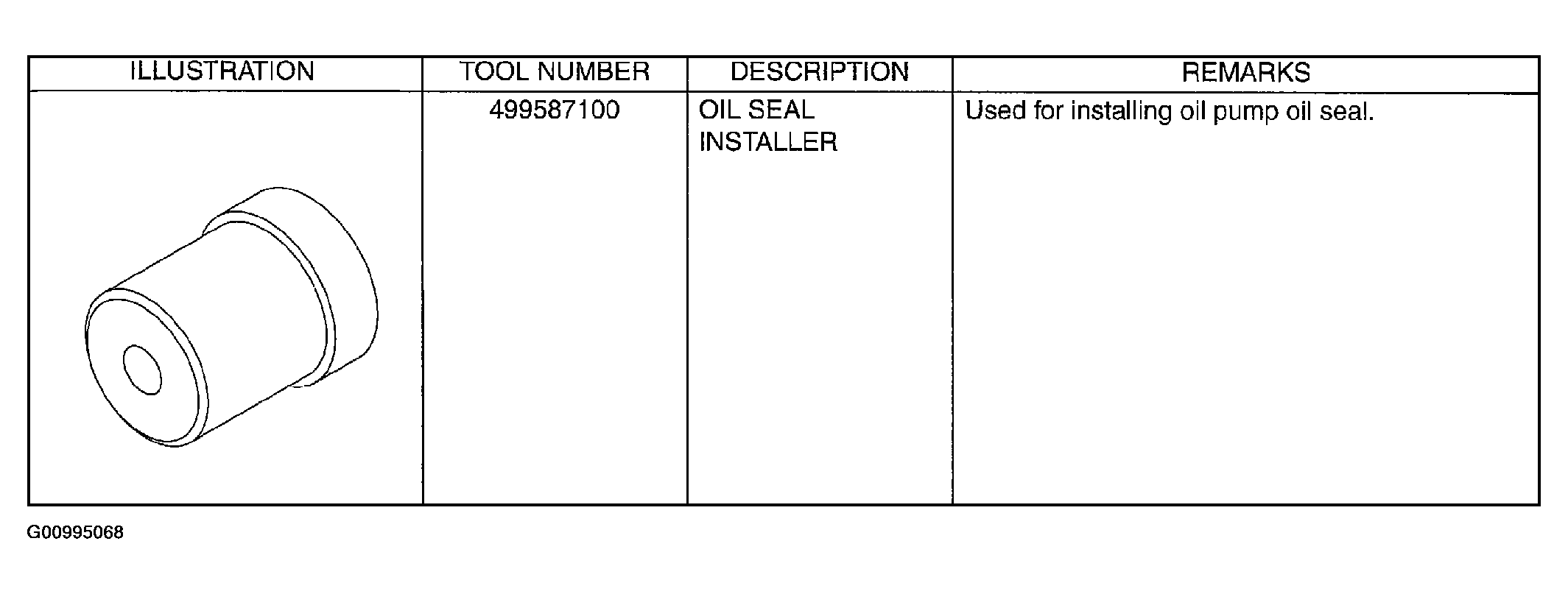

Fig 1: Identifying Preparation Tool (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

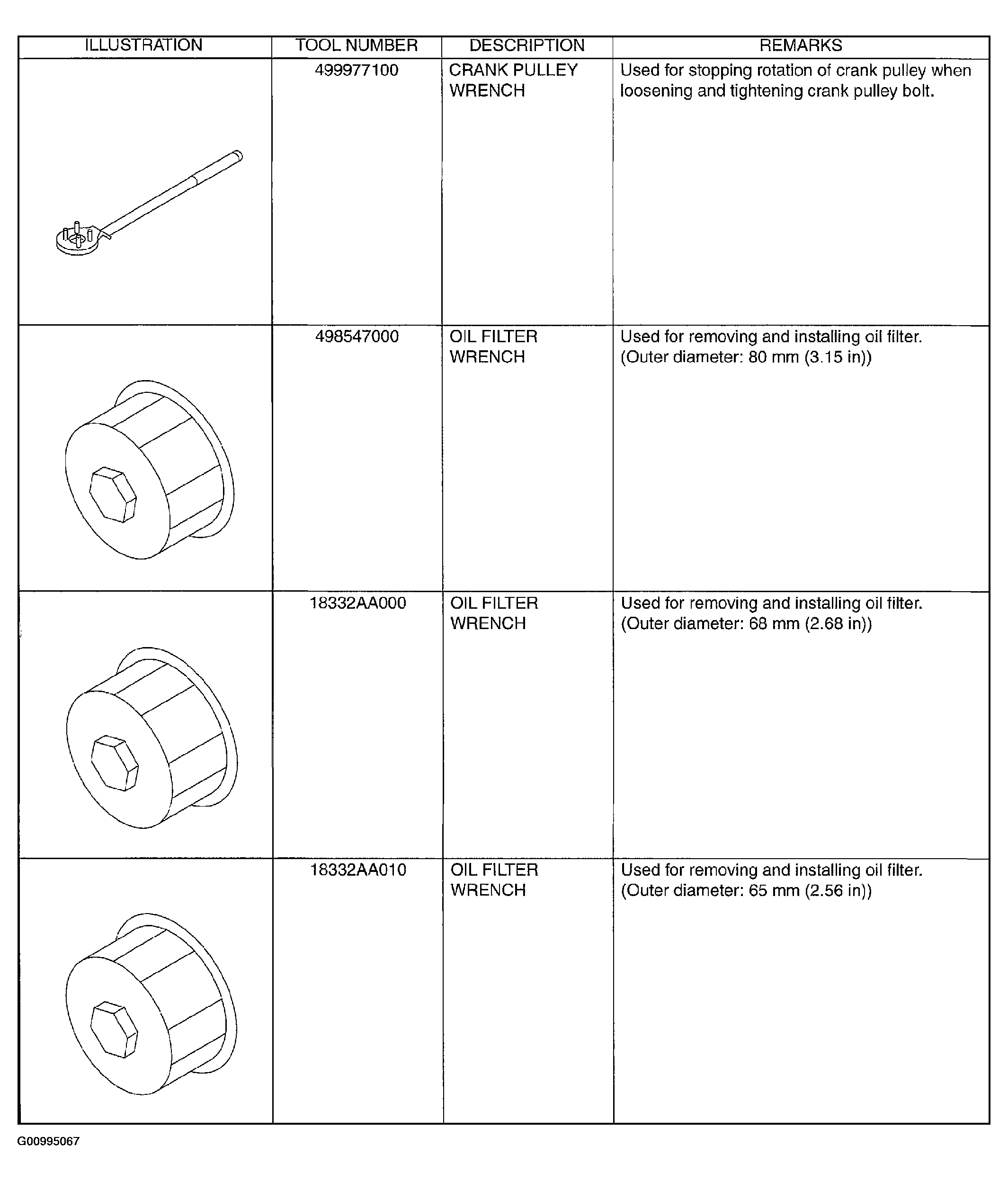

Fig 2: Identifying Preparation Tool (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
