Anti-lock Brake System (ABS)
>>
Functions Of Sensors And Actuators
Functions Of Sensors And Actuators

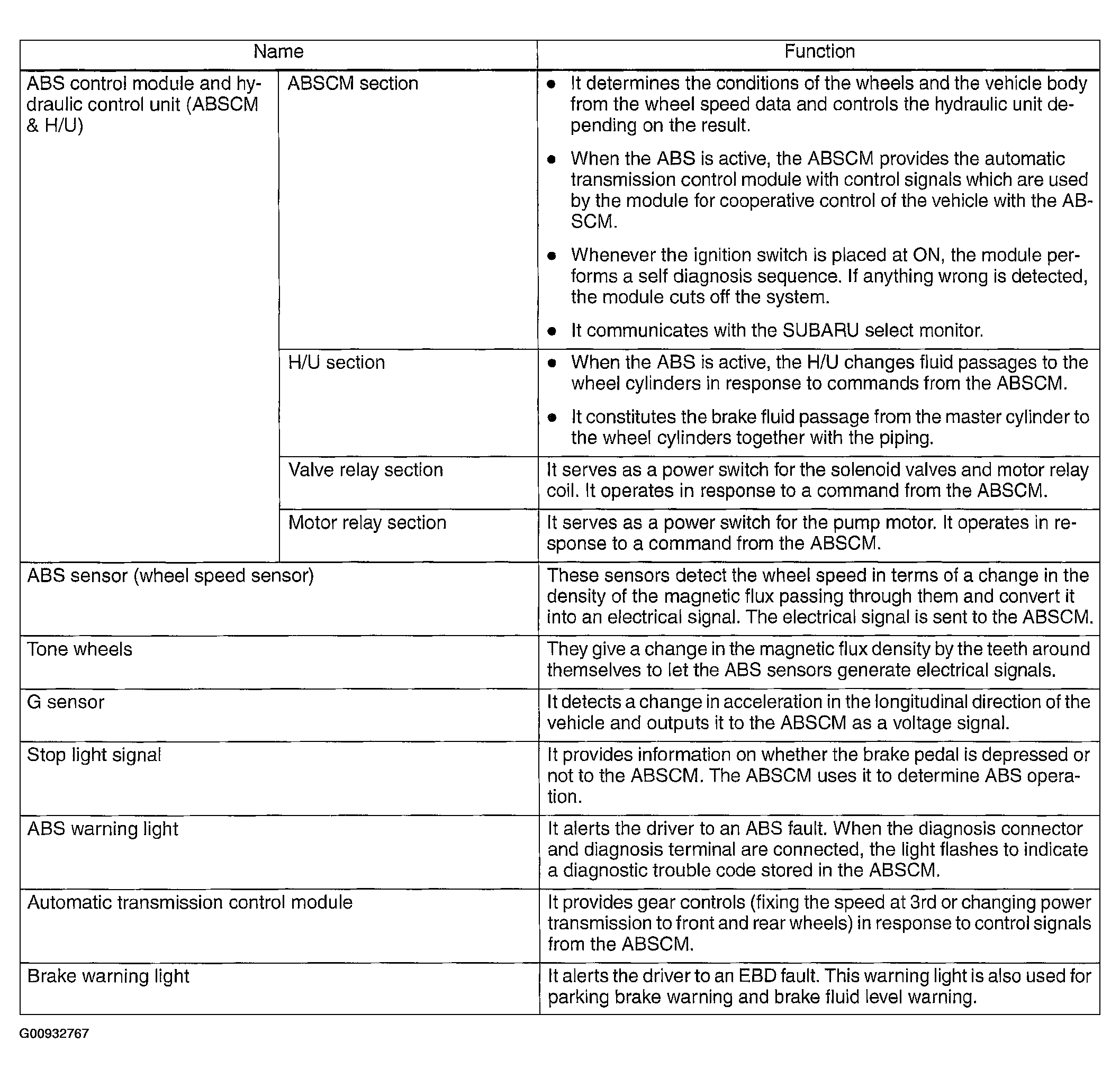

Fig 1: Identifying Functions Of Sensors And Actuators Chart
Courtesy of SUBARU OF AMERICA, INC.

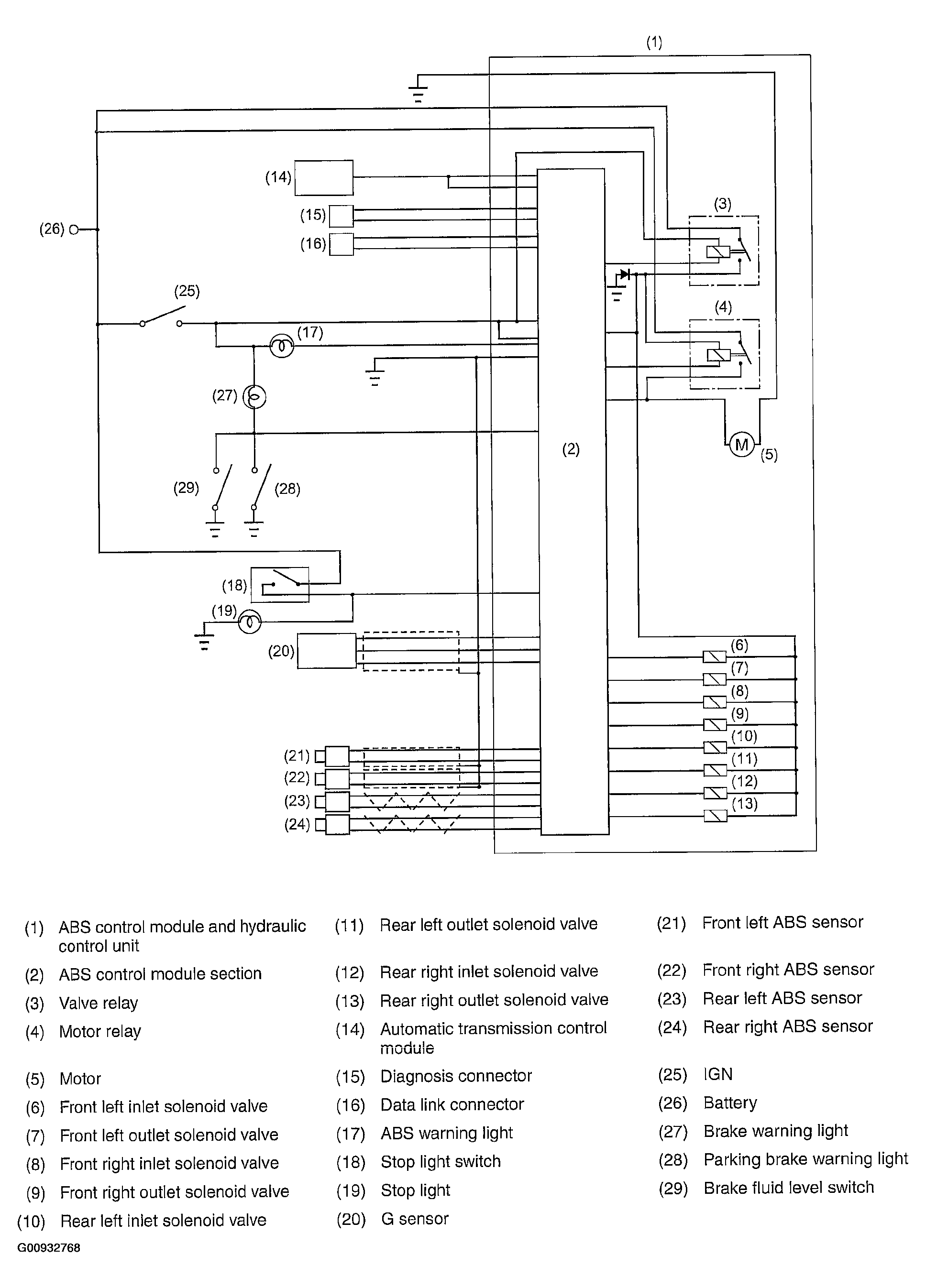

Fig 2: Identifying Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
