Oil Pump Housing: Adjustment

Using ST, measure the distance from the transmission case mating surface to the recessed portion of the high clutch drum "L".
1. ST 398643600 GAUGE

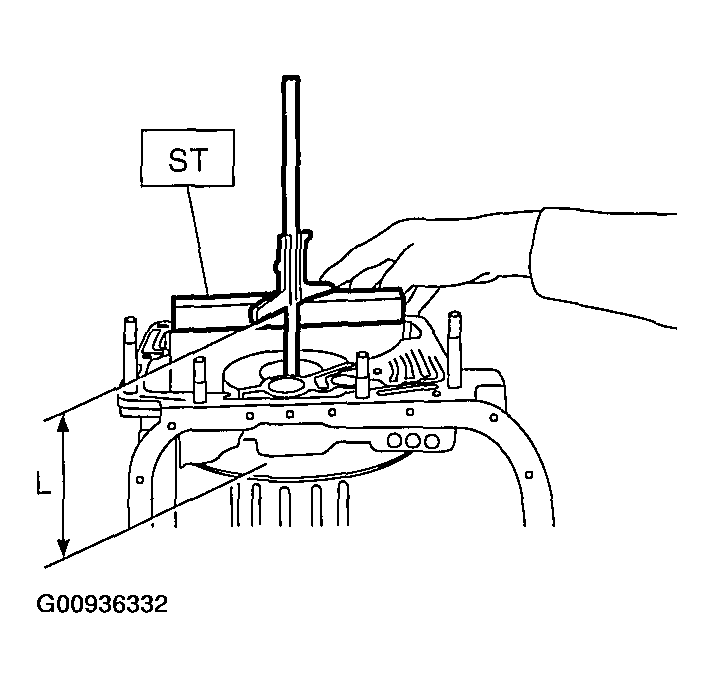

Fig 1: Measuring Distance From Transmission Case Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Using ST, measure the distance from the oil pump housing mating surface to the top surface of the oil pump cover with thrust needle bearing.
1. ST 398643600 GAUGE

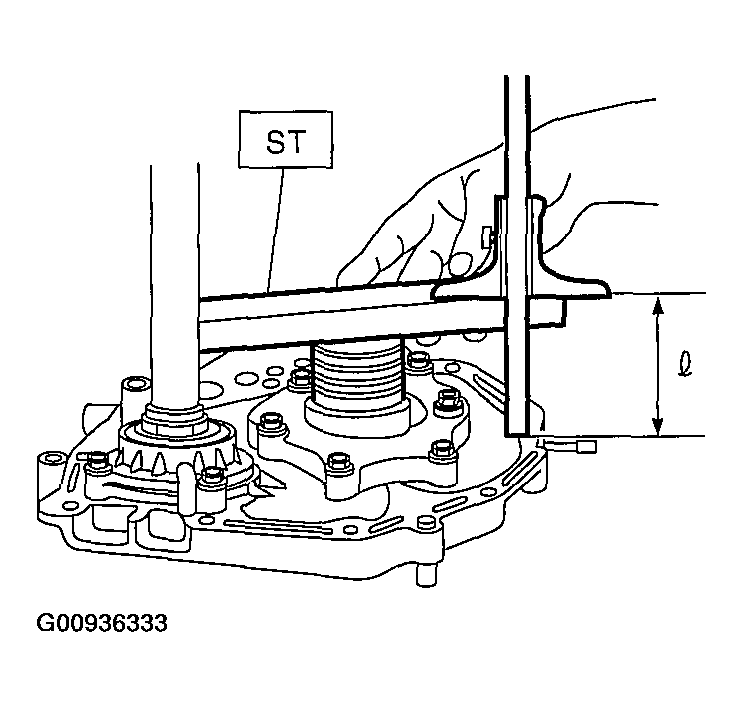

Fig 2: Measuring Distance From Oil Pump Housing Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Calculation of total end play
Select suitable thrust needle bearing from among those listed in this table so that clearance C is in the 0.25 to 0.55 mm (0.0098 to 0.0217 in) range.

C = (L + G) - l

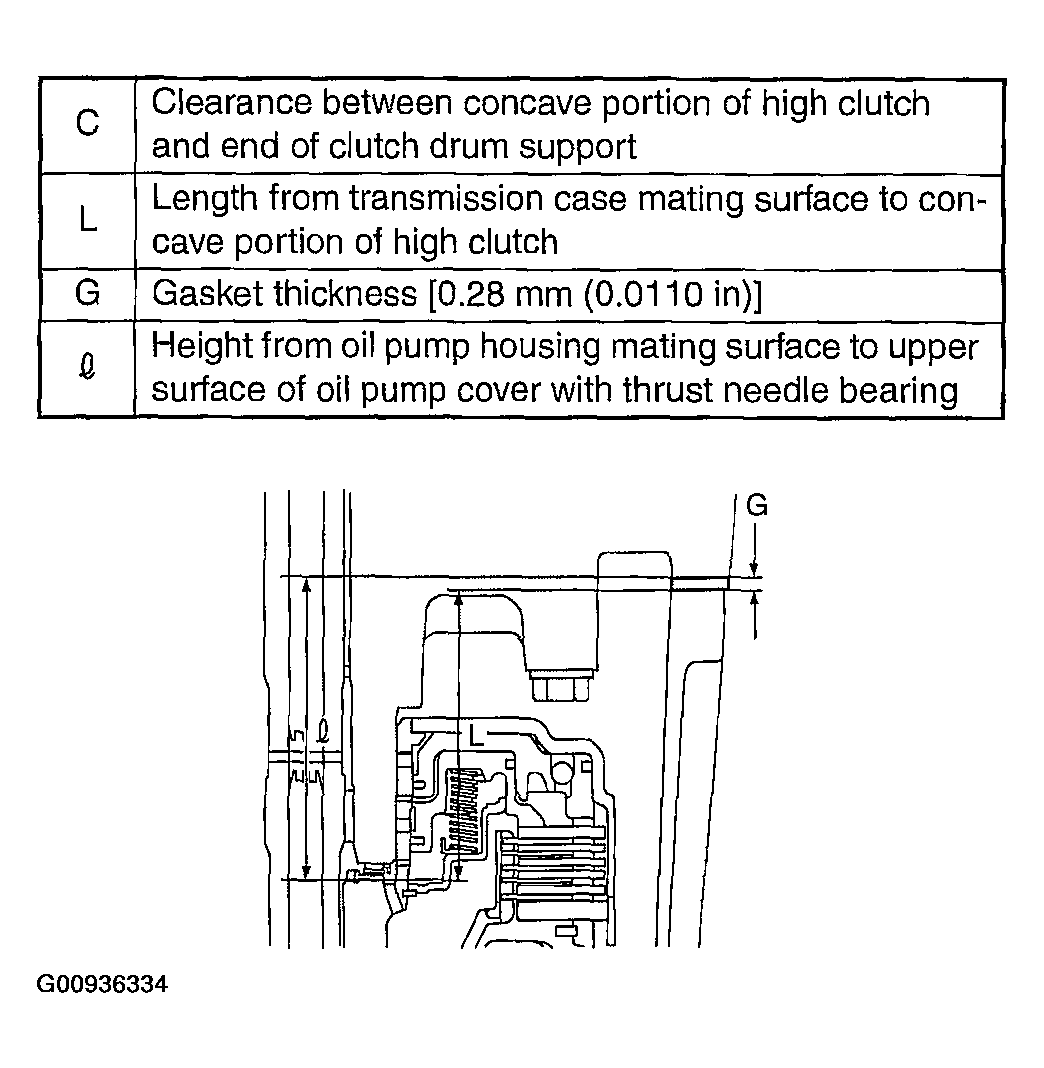

Fig 3: Calculating Of Total End Play
Courtesy of SUBARU OF AMERICA, INC.

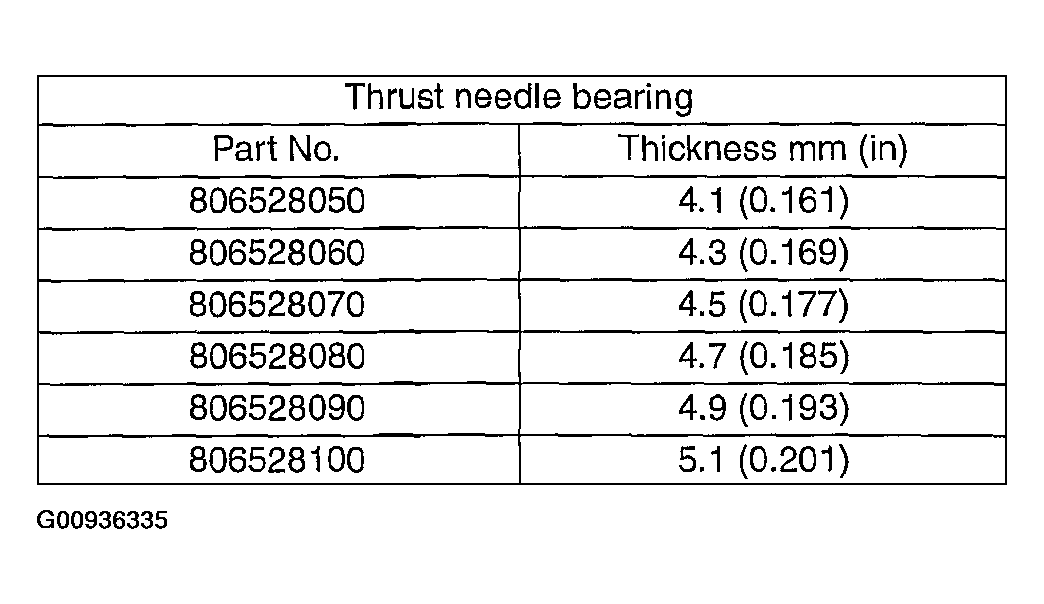

Fig 4: Thrust Needle Bearing Thickness Table
Courtesy of SUBARU OF AMERICA, INC.
After completing end play adjustment, insert the bearing race in the recess of the high clutch. Attach the thrust needle bearing to the oil pump cover with Vaseline.
After correctly Identifying the new gasket to the case mating surface, carefully install the oil pump housing assembly. Be careful to avoid hitting the drive pinion against the inside of the case.
Install both parts with dowel pins aligned. Make sure no clearance exists at the mating surface.
