Automatic Transmission
>>
General Description
>>
Component
>>
Planetary Gear And 2-4 Brake
Planetary Gear And 2-4 Brake

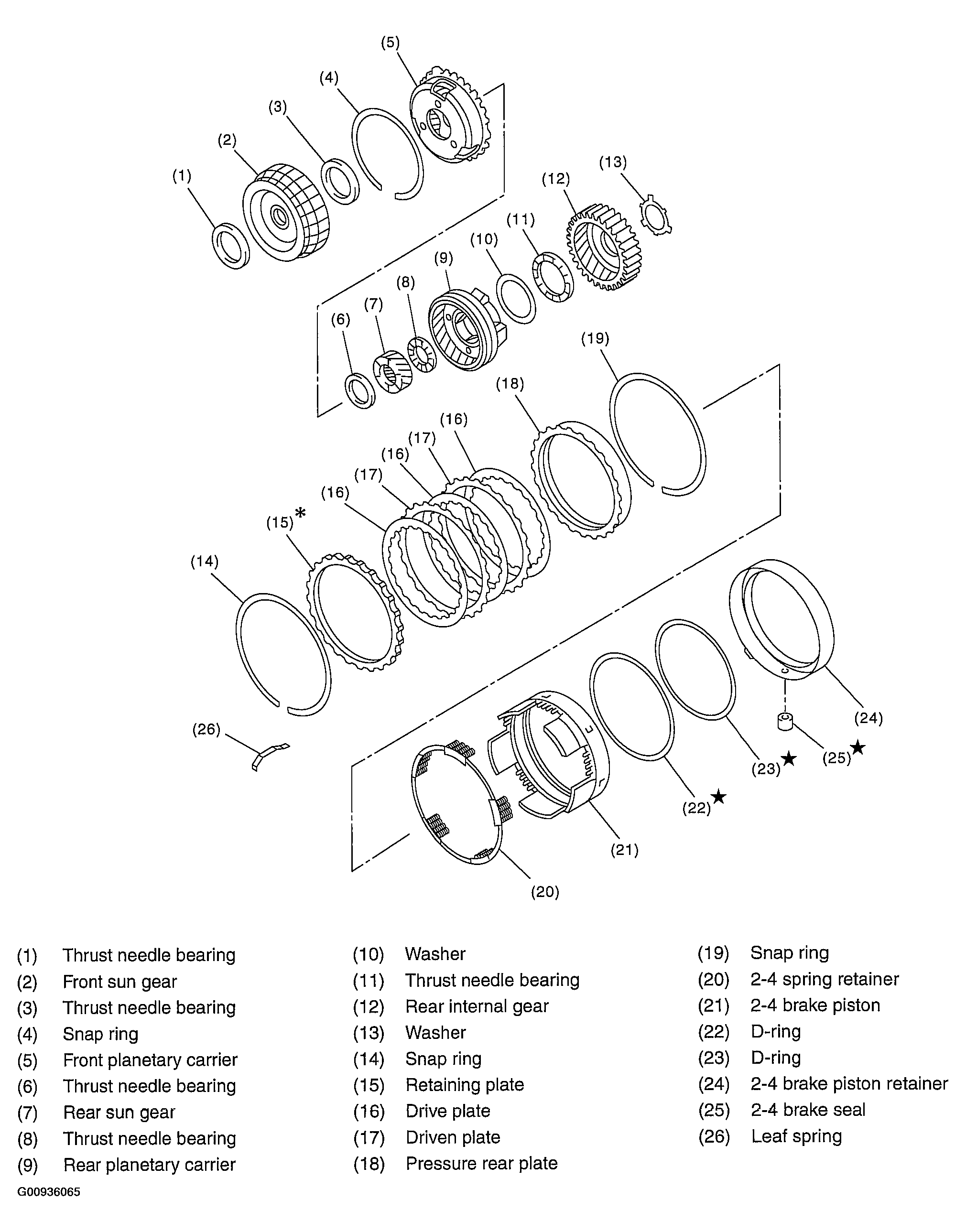

Fig 1: Identifying Planetary Gear And 2-4 Brake Component
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
