Master Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Thoroughly drain the brake fluid from reservoir tank.
  2. Remove the snap pin, clevis pin and separate the push rod of master cylinder from clutch pedal.

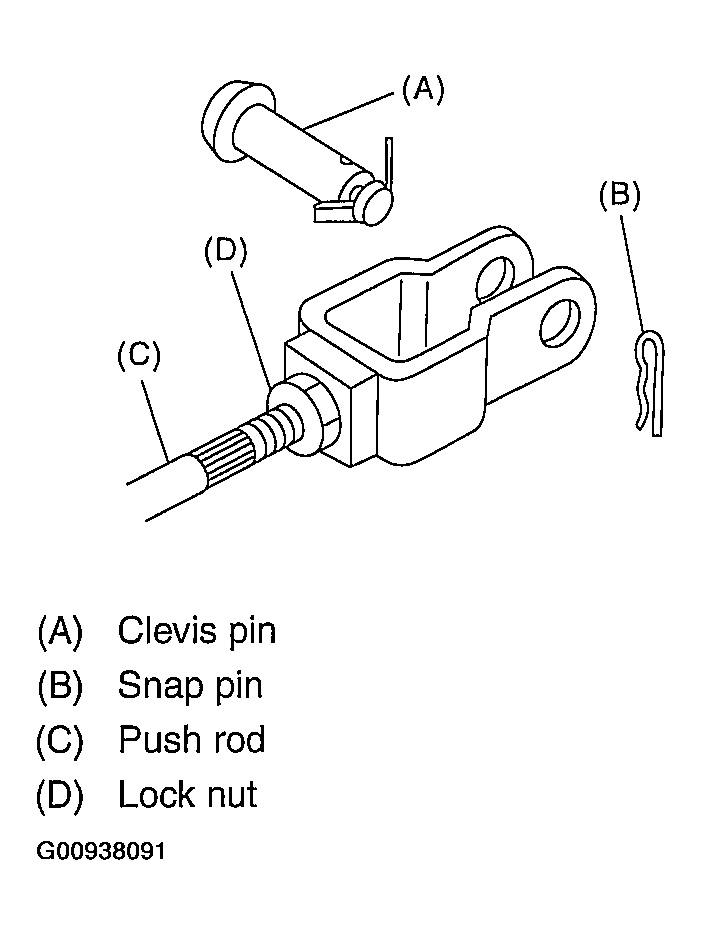

    Fig 1: Identifying Snap Pin
    G00938091Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air cleaner case and air intake duct (Non-turbo model). < Ref. to REMOVAL , Air Cleaner Case .> and < Ref. to REMOVAL , Air Intake Duct .>
  4. Remove the intercooler (Turbo model). < Ref. to REMOVAL , Intercooler .>
  5. Remove the clutch pipe from master cylinder.
  6. Remove the master cylinder with reservoir tank.
    CAUTION: Be extremely careful not to spill brake fluid. Brake fluid split on the vehicle body will harm the paint surface; immediately flush it away with water, and then wipe it off if split.

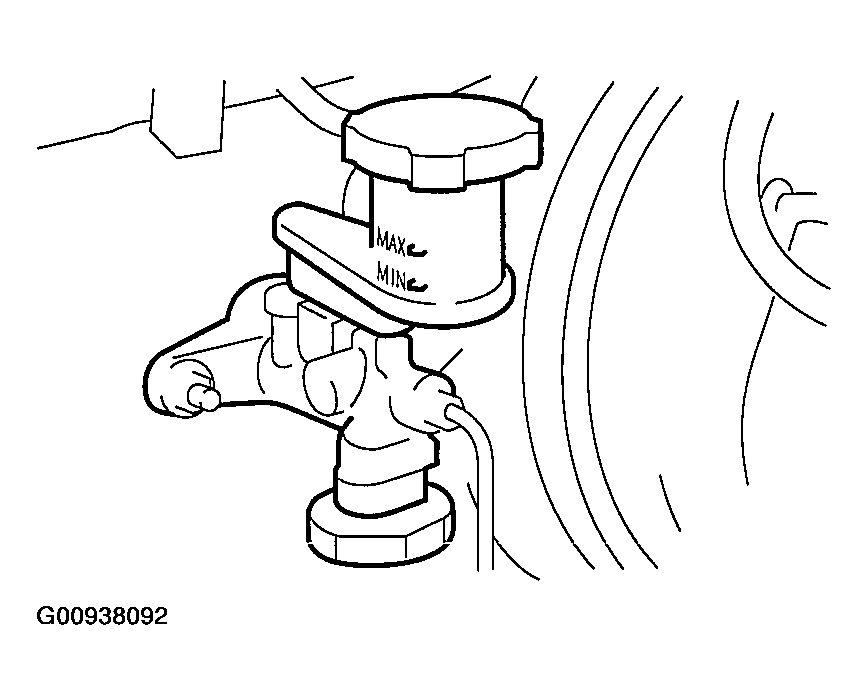

    Fig 2: Identifying Master Cylinder With Reservoir Tank
    G00938092Courtesy of SUBARU OF AMERICA, INC.
