Section 11 (Clutch System)
>>
General Description
>>
Component
>>
Master Cylinder
Master Cylinder
WARNING:
This page is about a different variant/trim than selected.
NON-TURBO MODEL

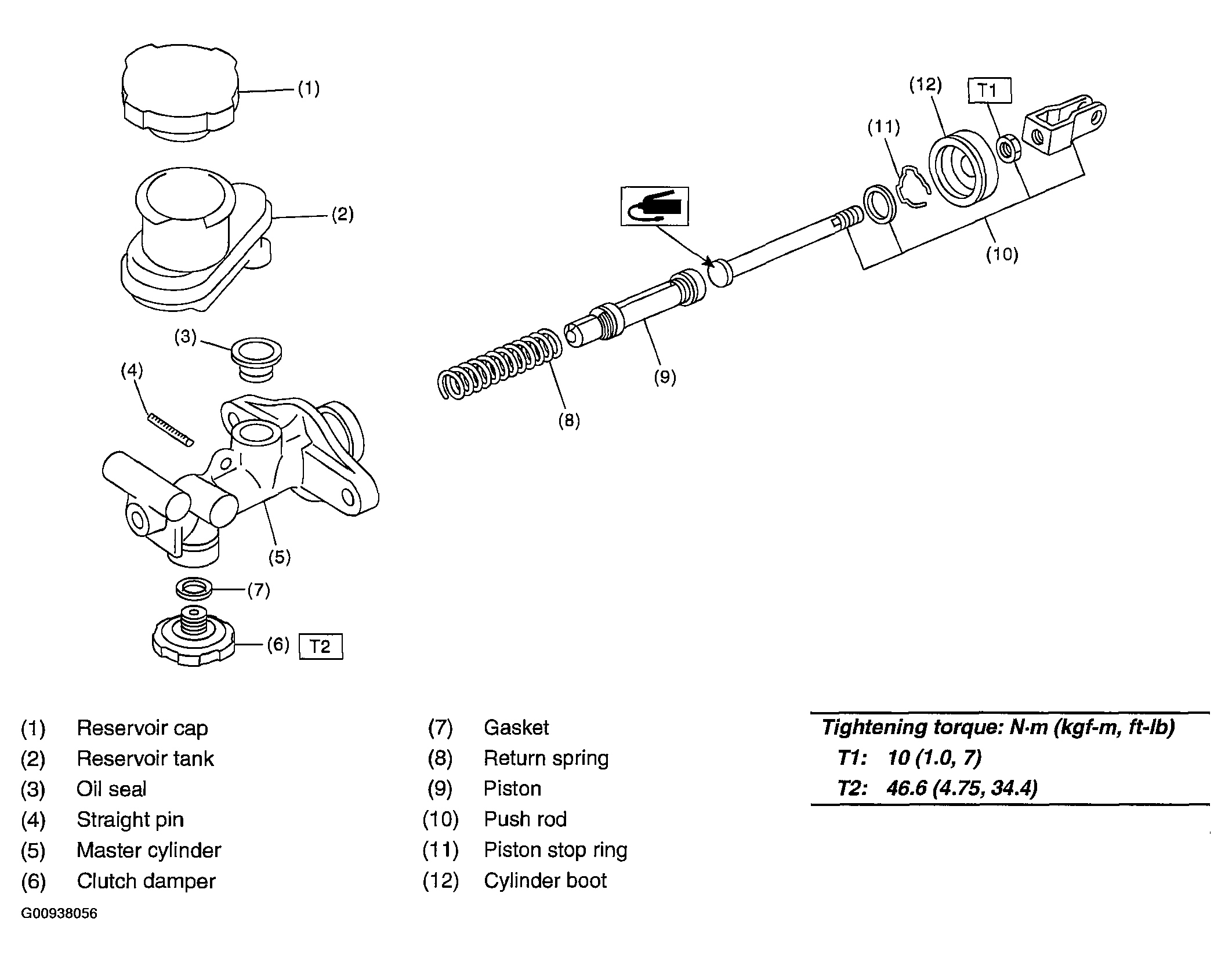

Fig 1: Master Cylinder Replacement Components With Torque Specifications - Non-Turbo Model
Courtesy of SUBARU OF AMERICA, INC.
TURBO MODEL

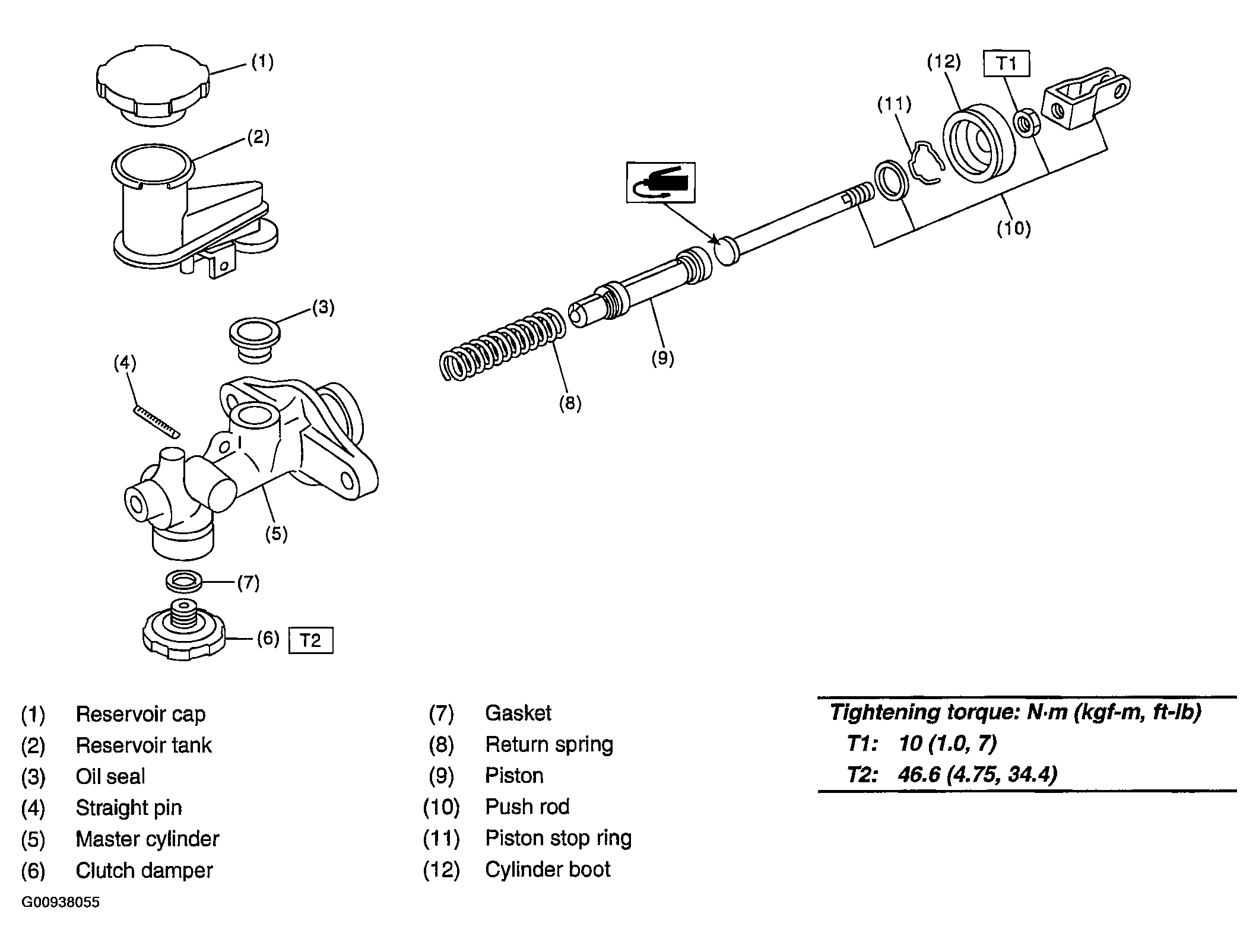

Fig 2: Master Cylinder Replacement Components - Turbo Model With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
