Clutch Switch: Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the clutch switch mounting lock nut (with starter interlock).

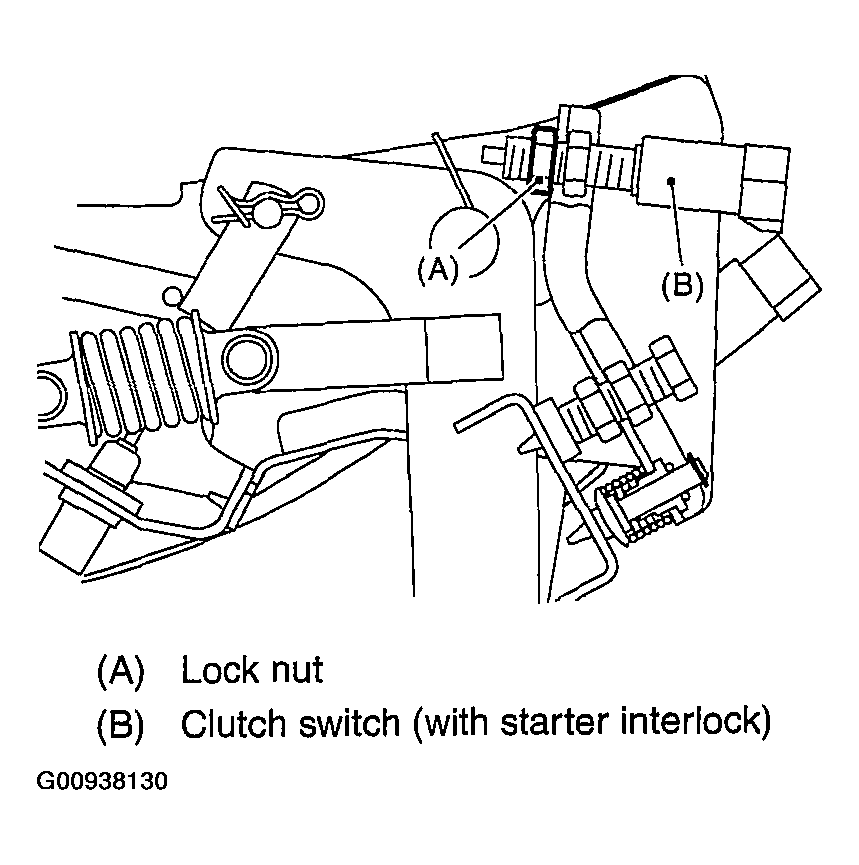

    Fig 1: Loosening Clutch Switch Mounting Lock Nut
    G00938130Courtesy of SUBARU OF AMERICA, INC.
  2. Fully depress the clutch pedal.
  3. Adjust the clutch pedal plate and clutch switch so that the gap between them is 3 - 3.5 mm (0.12 - 0.14 in).

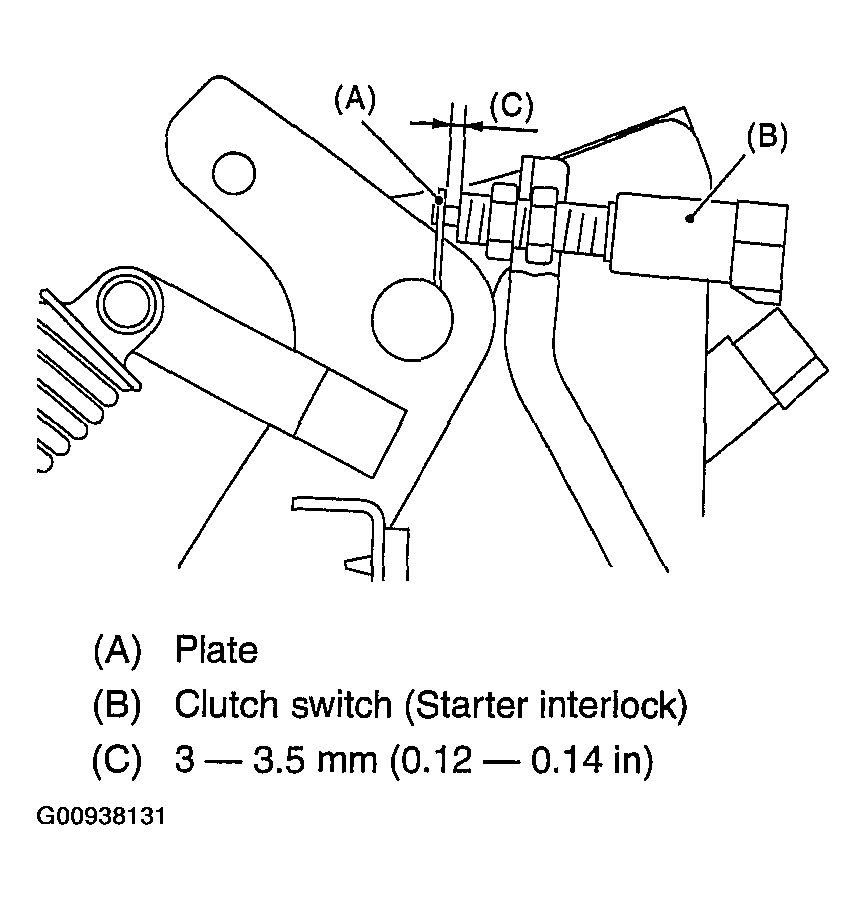

    Fig 2: Adjusting Clutch Pedal Plate And Clutch Switch
    G00938131Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten the lock nut.
    1. Tightening torque (Clutch stopper nut): 8 N.m (0.8 kgf-m, 13.0 ft-lb)
