Extension Case

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer drive gear assembly. < Ref. to REMOVAL . >
  2. Remove the shift bracket.

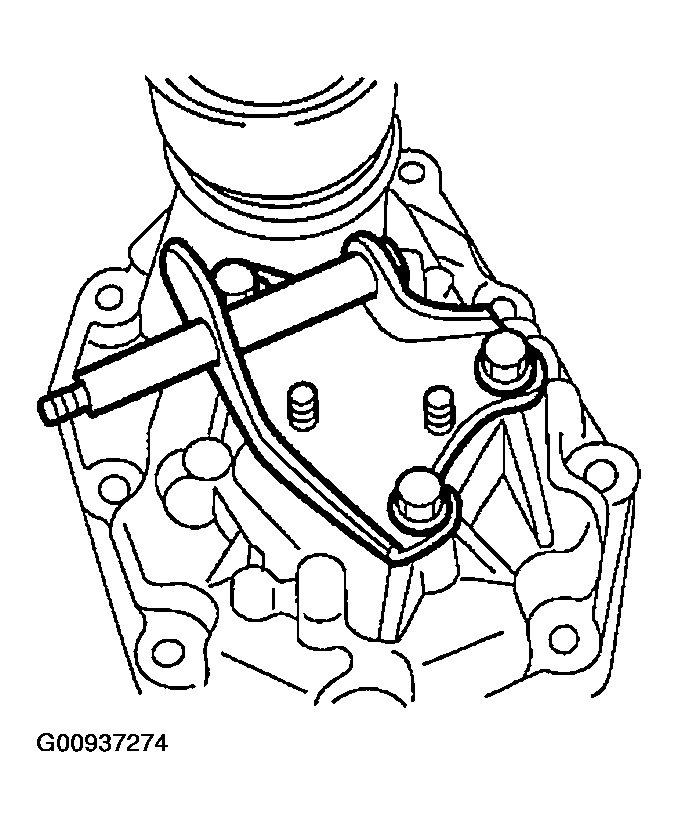

    Fig 1: Identifying Shift Bracket
    G00937274Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil seal from extension case. < Ref. to OIL SEAL . >
