Extension Case

WARNING: This page is about a different variant/trim than selected.
  1. Using the ST, insert the new oil seal to extension case. < Ref. to OIL SEAL . >
  2. Install the shift bracket to extension case.
    1. Tightening torque: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

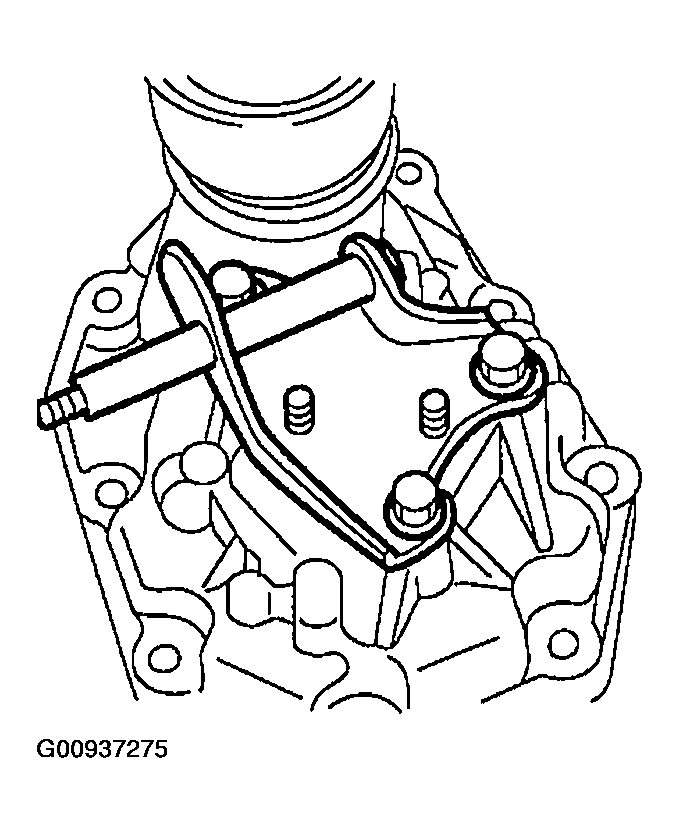

    Fig 1: Identifying Shift Bracket
    G00937275Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer drive gear to extension case. < Ref. to INSTALLATION . >
