Main Shaft

WARNING: This page is about a different variant/trim than selected.
  1. Snap ring (Outer-25) to synchronizer hub clearance: 0.060 - 0.100 mm (0.0024 - 0.0039 in)

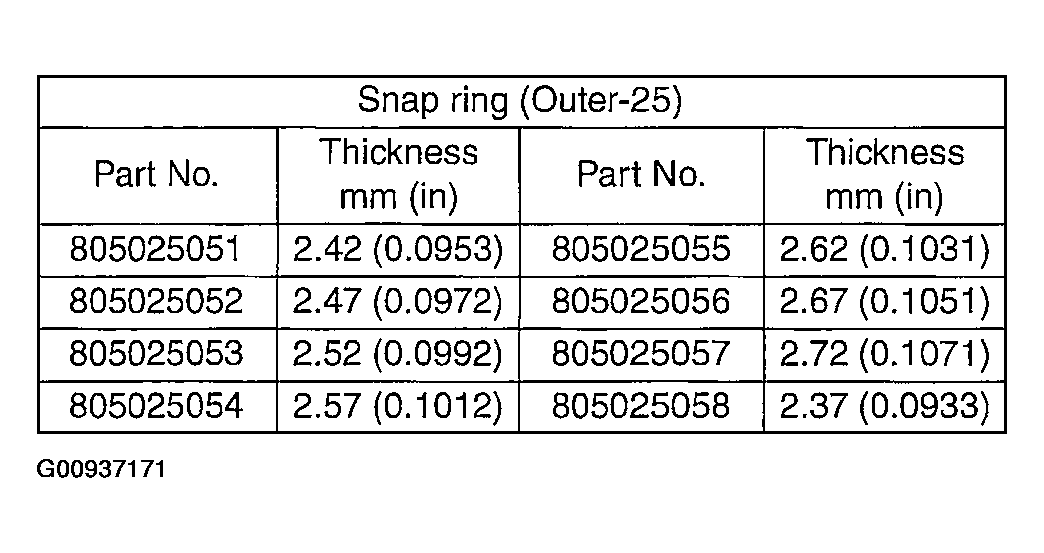

Fig 1: Snap Ring (Outer-25) Reference Chart
G00937171Courtesy of SUBARU OF AMERICA, INC.
