Center Differential: Disassembly
WARNING: This page is about a different variant/trim than selected.

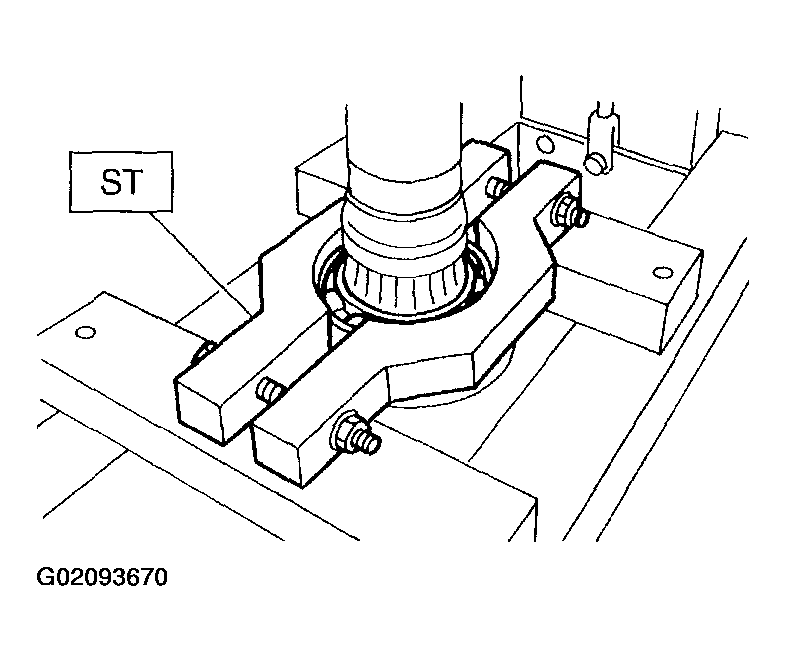

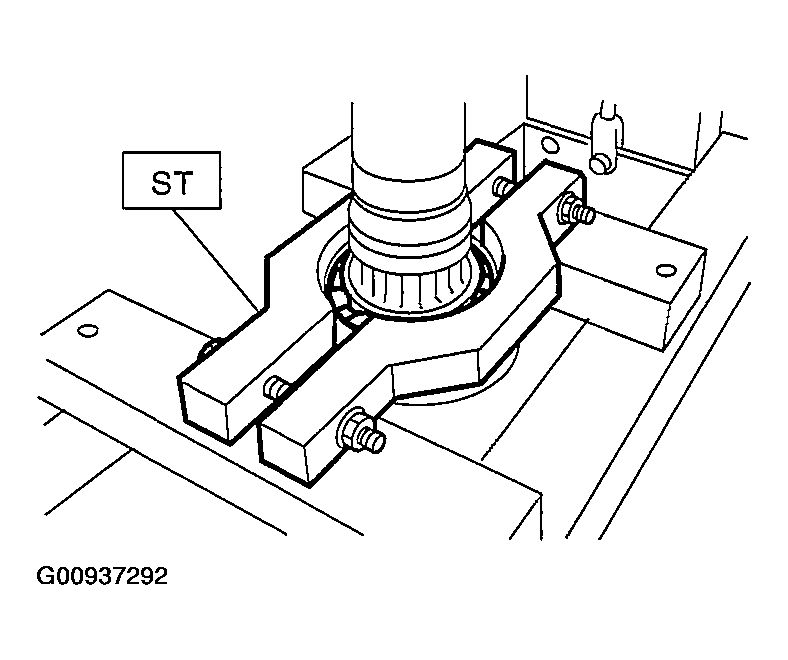

- Remove the ball bearing using ST.
NOTE:
Do not reuse the ball bearing.
ST 498077300 CENTER DIFFERENTIAL BEARING REMOVER
Courtesy of SUBARU OF AMERICA, INC.
- Do not disassemble the center differential except ball bearing part because it is a non-disassemble part.
