Home >> Subaru >> 2004 >> Forester XS, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine (Diagnostics) (H4SO) >> Electrical Components Location >> Location >> Transmission >> Sensor

Electrical Components Location: Location: Transmission: Sensor

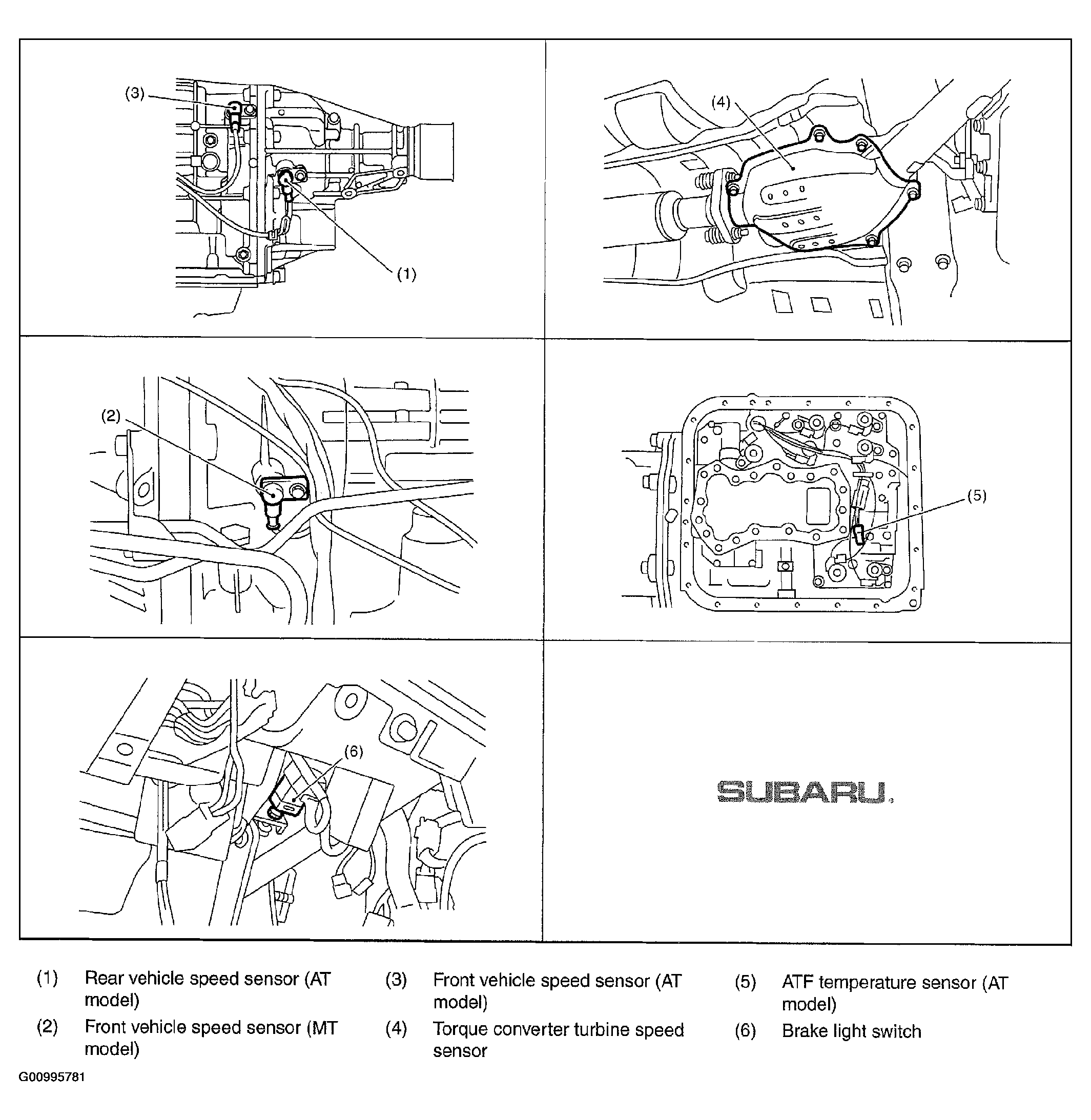

Fig 1: Locating Transmission Module Sensor

G00995781

Courtesy of SUBARU OF AMERICA, INC.
