Home >> Subaru >> 2004 >> Forester X, Standard >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Description

Rear Suspension: Description

For description and component location, see Fig 1.

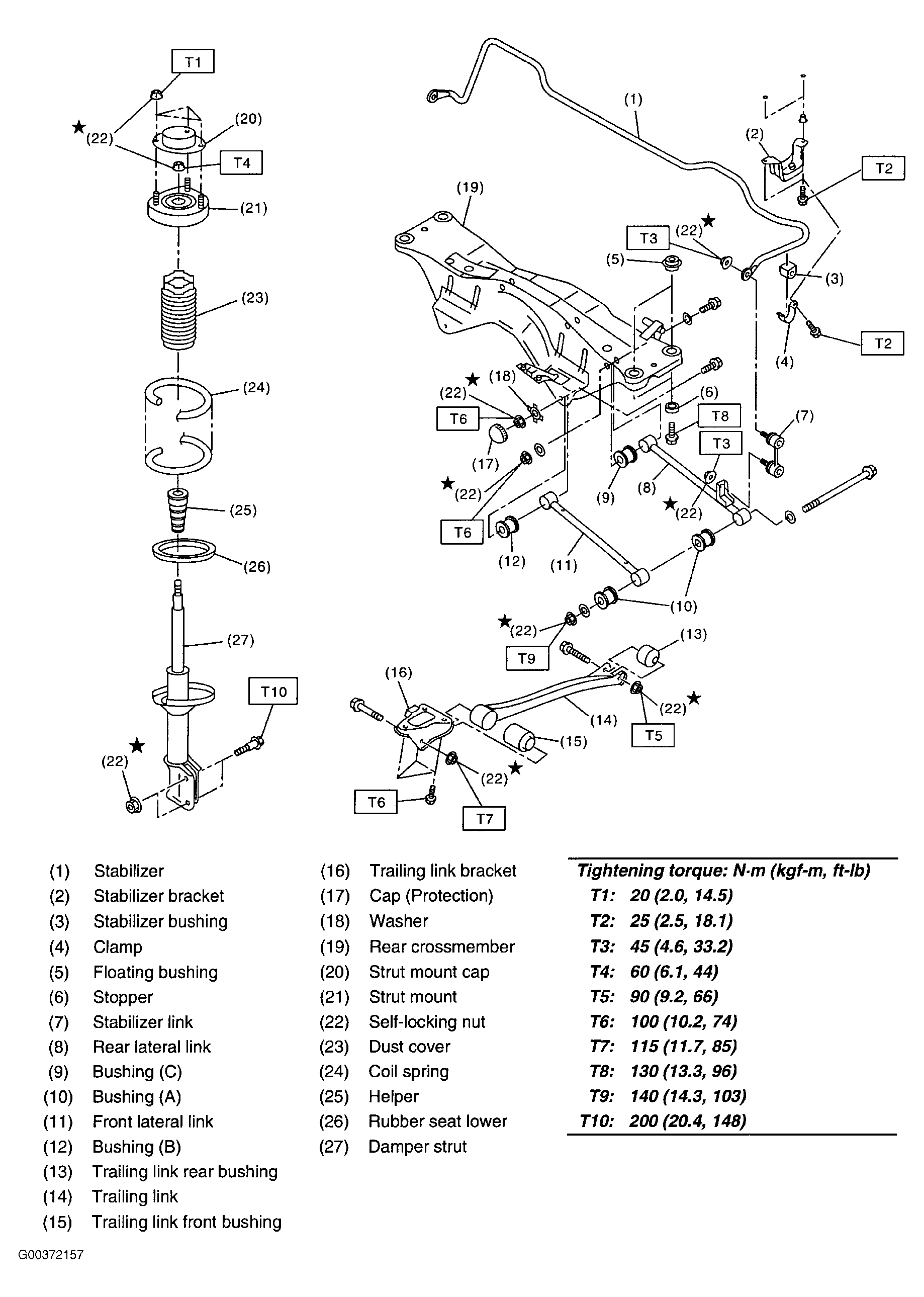

Fig 1: Exploded View Of Rear Suspension With Torque Specifications

G00372157

Courtesy of SUBARU OF AMERICA, INC.
