Wiper Control Relay: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the right quarter lower trim. < Ref. to REMOVAL , Rear Quarter Trim. >
  3. Loosen the nut to remove control unit.

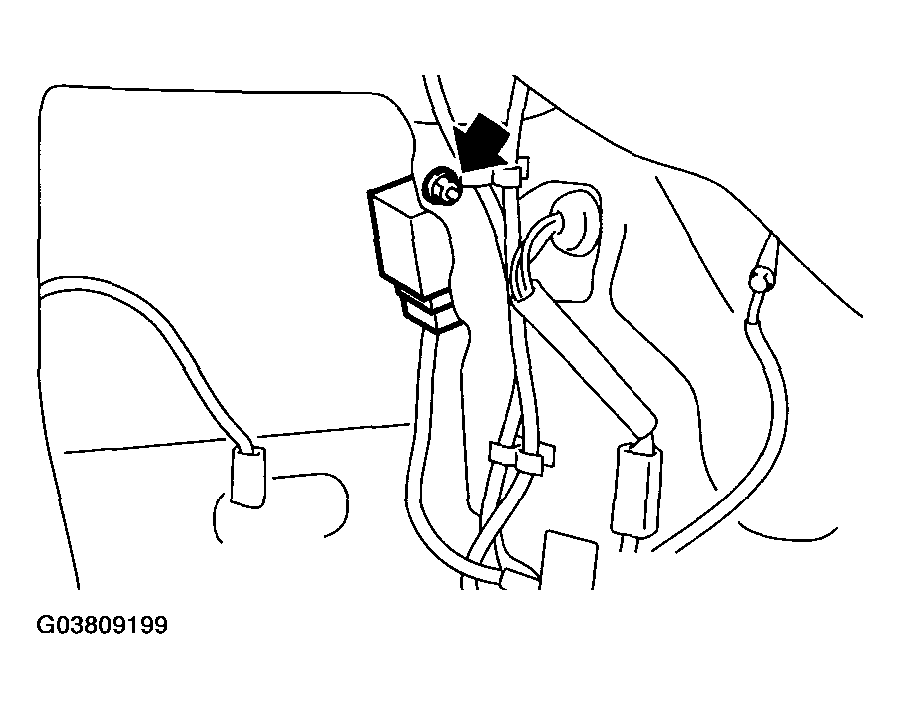

    Fig 1: Loosening Nut To Removing Control Unit
    G03809199Courtesy of SUBARU OF AMERICA, INC.
