Combination Switch (Wiper): Inspection
WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the continuity between each connector terminal.SWITCH POSITION AND CONTINUITY CHART
Switch position Terminal No. Standard FRONT OFF 7 and 16 Less than 1ohm INT 7 and 16 Less than 1ohm LO 7 and 17 Less than 1ohm HI 8 and 17 Less than 1ohm Washer ON 2 and 11 Less than 1ohm Rear Washer ON 2 and 10
10 and 12
2 and 12Less than 1ohm OFF - More than 1 Mohm ON 2 and 10 Less than 1ohm Washer ON 2 and 10
10 and 12
2 and 12Less than 1ohm If continuity is not as specified, replace the switch.
- Intermittent operation inspection
- Turn the wiper switch to INT.
- Adjust the intermittent control switch to MAX.
- Apply battery voltage to switch terminals 16 and 2.

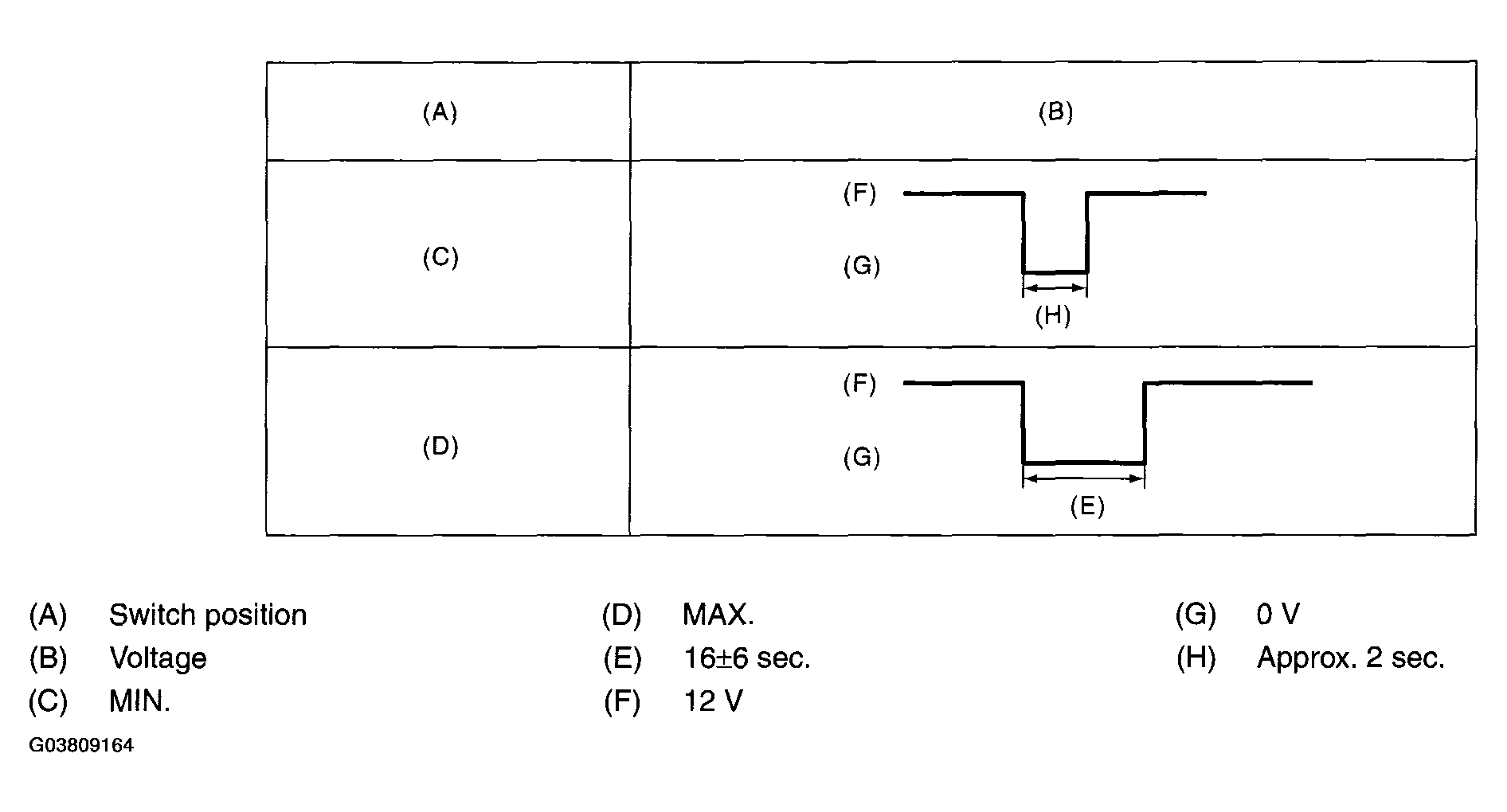

- Measure the voltage between combination switch terminal.
Terminals:
No. 7-No. 2:
Courtesy of SUBARU OF AMERICA, INC.
If operation is not as specified, replace the switch.
