Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.

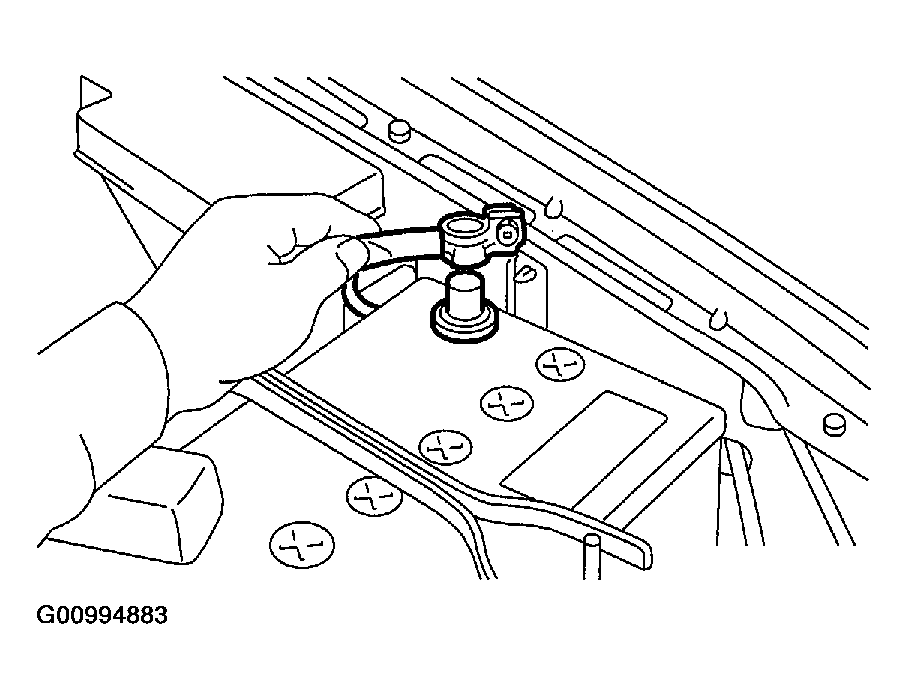

    Fig 1: Disconnecting Ground Cable From Battery
    G00994883Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the passenger's side front side sill cover.
  3. Remove the bolt which holds fuel pump relay bracket on the body.
  4. Disconnect the connector from the fuel pump relay.

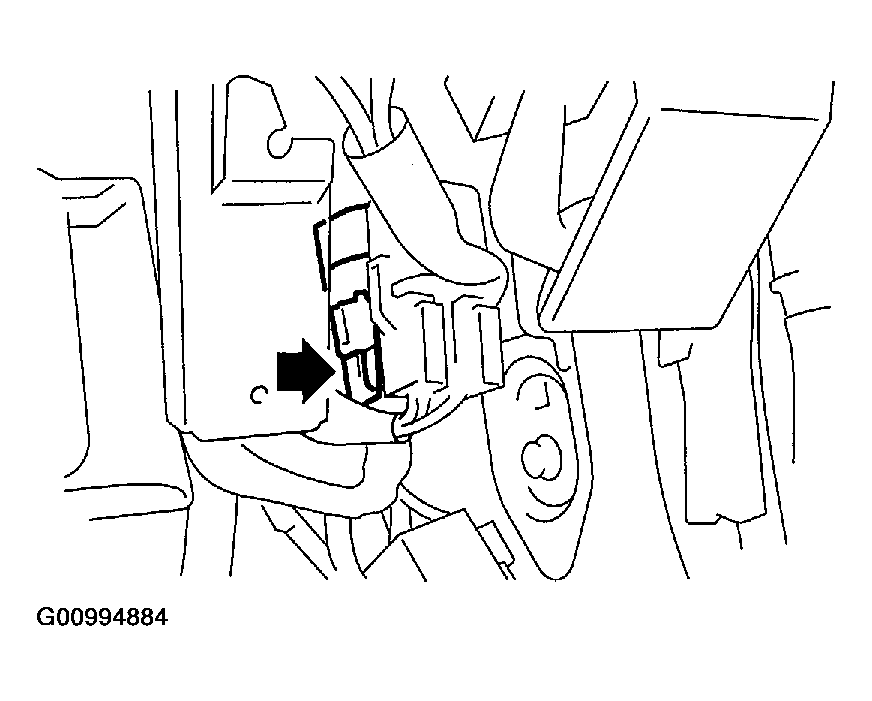

    Fig 2: Disconnecting Connector From Fuel Pump Relay
    G00994884Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the fuel pump relay from the mounting bracket.
