LH Side

Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Open the fuel filler flap lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

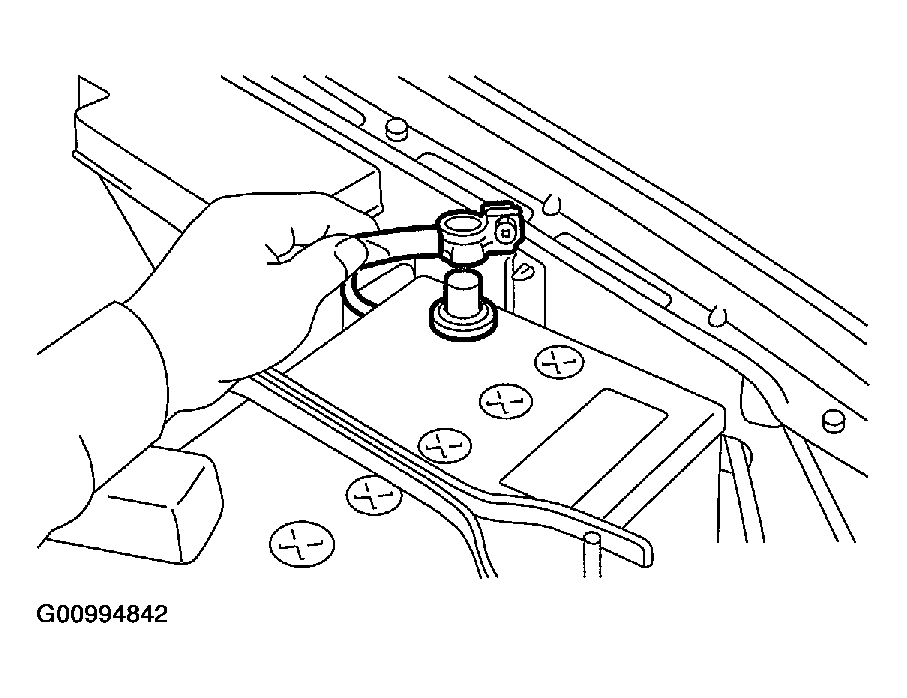

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the two bolts which install the washer tank on the body.

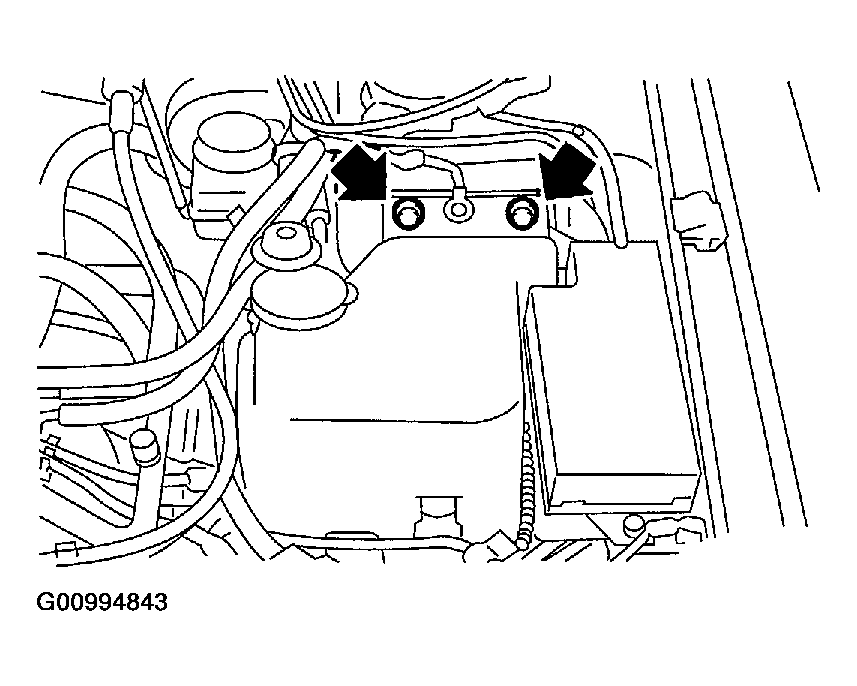

Fig 2: Identifying Bolts & Washer Tank
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the front window washer motor.
Disconnect the connector from the rear gate glass washer motor.

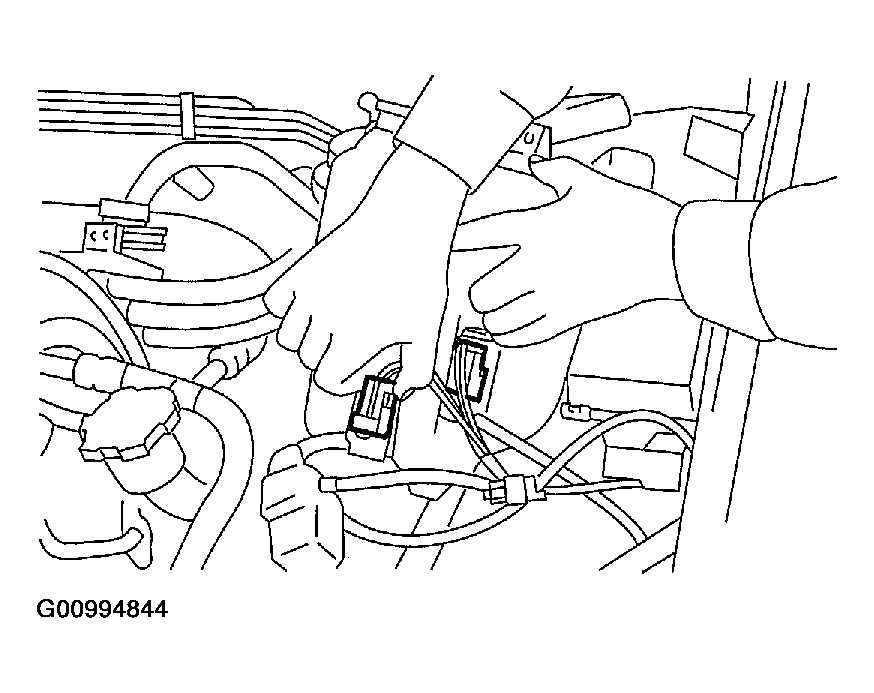

Fig 3: Disconnecting Connector From Rear Gate Glass Washer Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the rear window glass washer hose from the washer motor, then plug the connection with a suitable cap.
Move the washer tank, and secure it away from the working area.

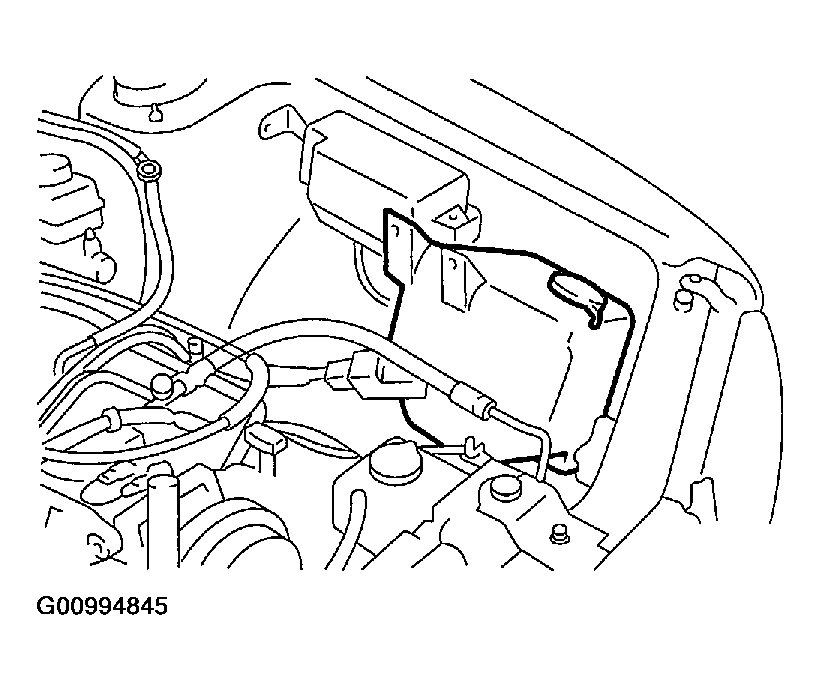

Fig 4: Disconnecting Rear Window Glass Washer Hose From Washer Motor
Courtesy of SUBARU OF AMERICA, INC.

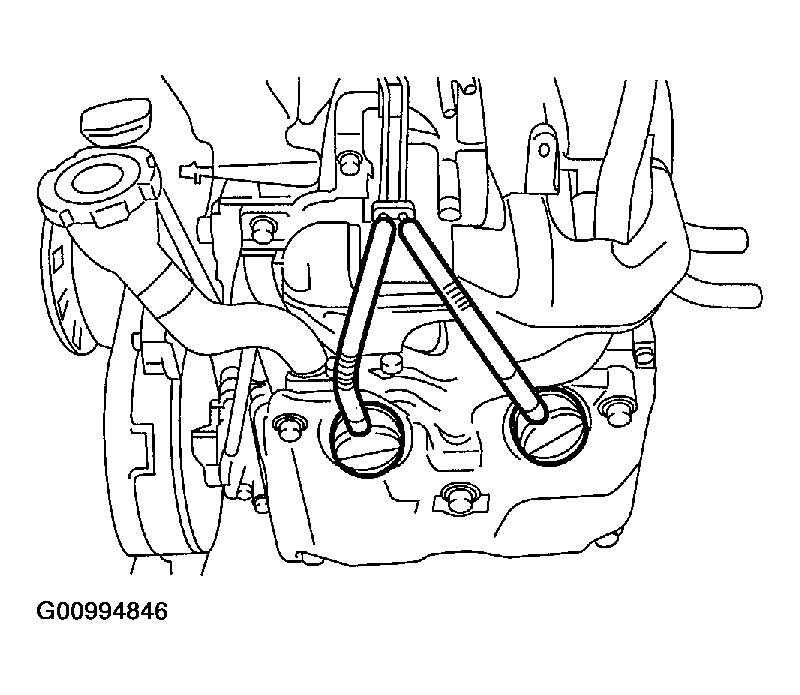

Remove the spark plug cords from the spark plugs (#2 and #4 cylinders).

Fig 5: Identifying Spark Plug Cords
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector LH.

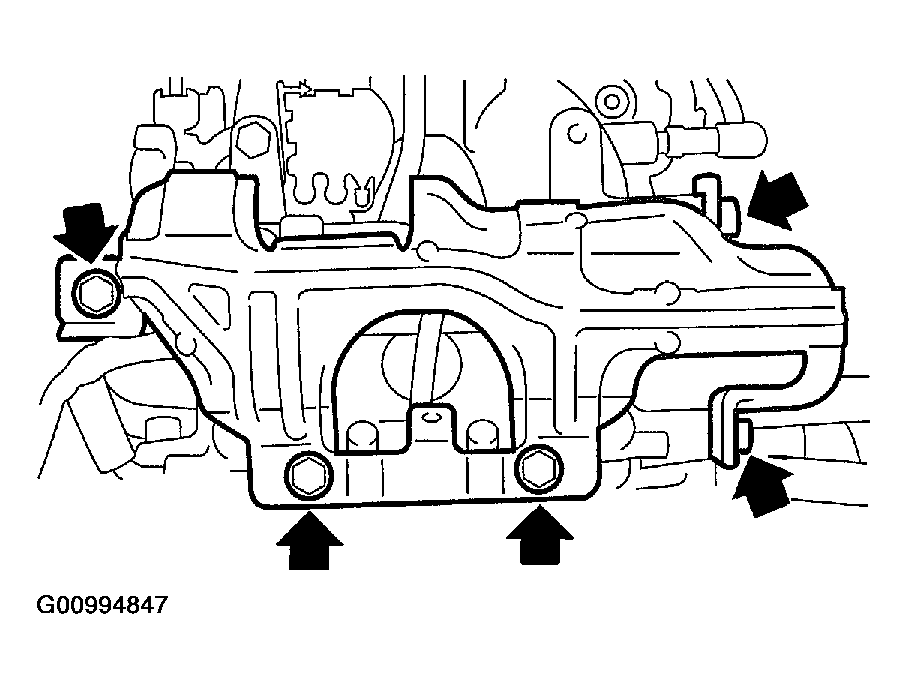

Fig 6: Identifying Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel injector.

Fig 7: Disconnecting Connector From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds the injector pipe to the intake manifold.

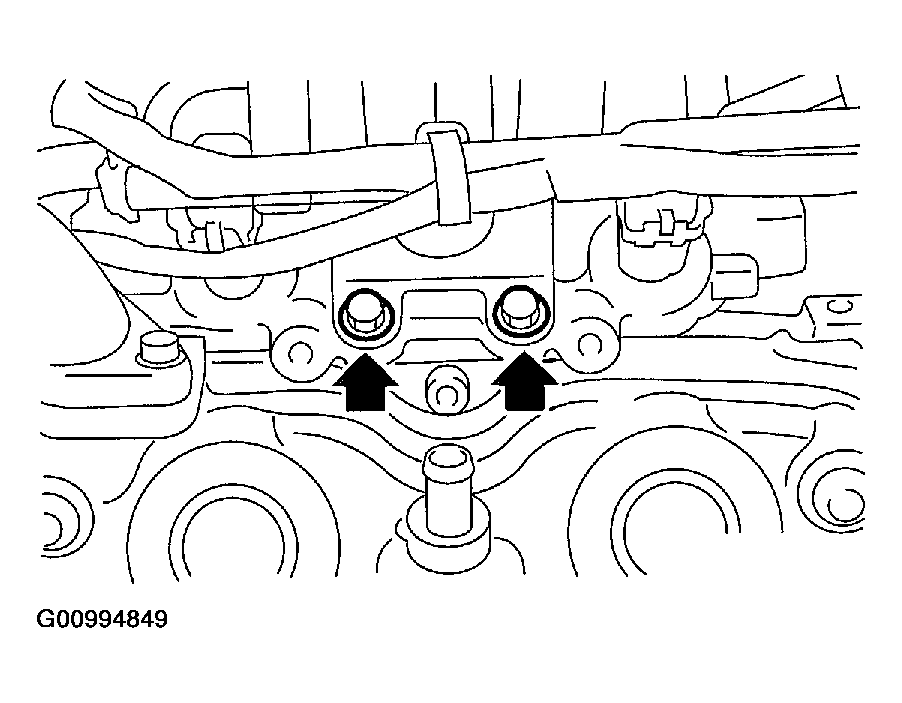

Fig 8: Identifying Bolt & Injector Pipe (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Bolt & Injector Pipe (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

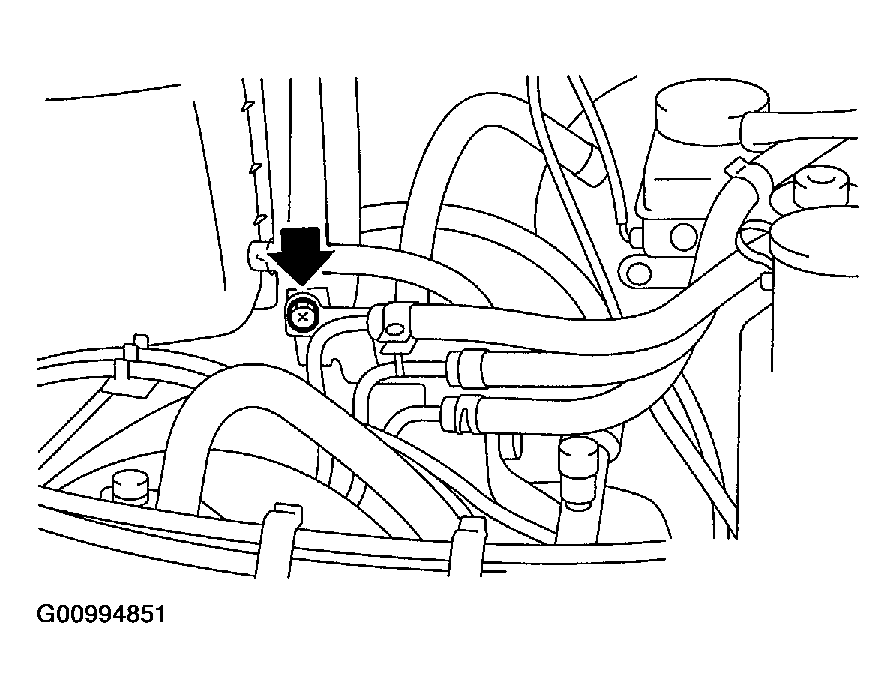

Remove the bolt which holds the fuel pipe on the left side intake manifold.

Fig 10: Identifying Bolt & Fuel Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector from the intake manifold.
1. Remove the fuel injector securing clip.

  Fig 11: Identifying Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the fuel injector while lifting up the fuel injector pipe.

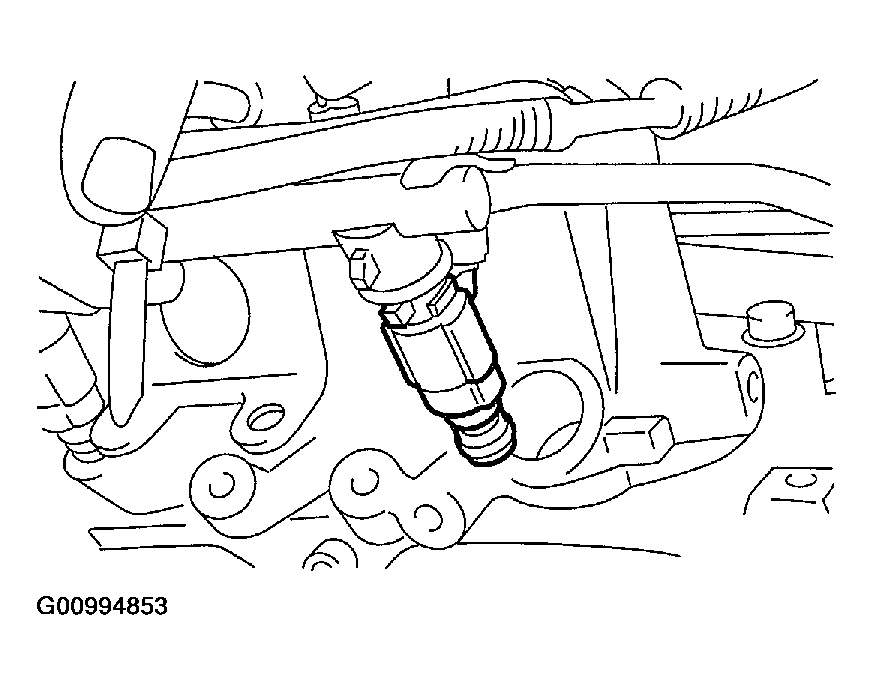

  Fig 12: Identifying Fuel Injector
  Courtesy of SUBARU OF AMERICA, INC.
