Fuel Damper Valve: Removal

  1. Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
  2. Remove the fuel damper valve from the fuel return line.

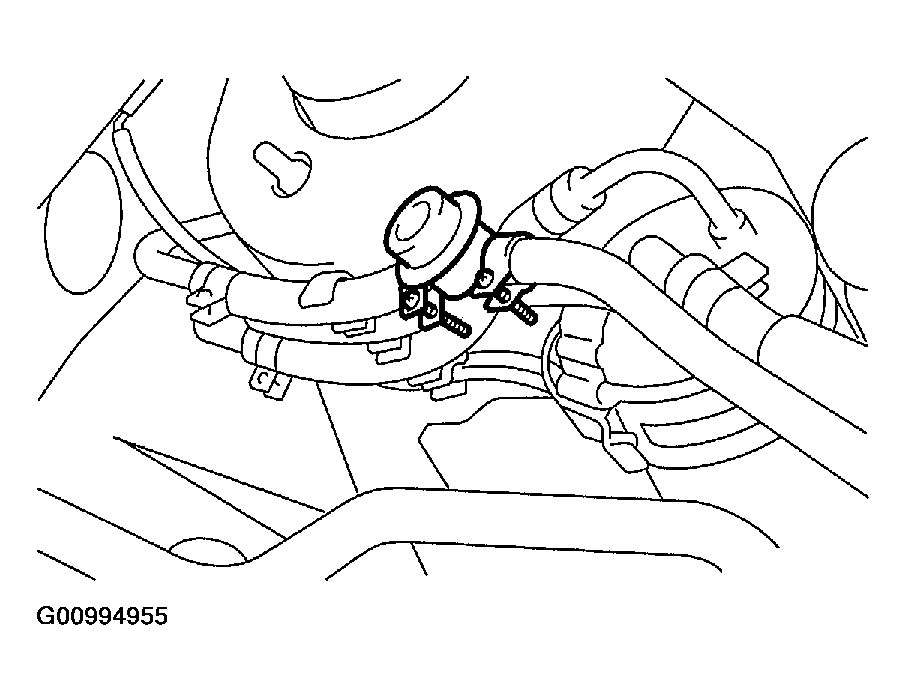

    Fig 1: Identifying Fuel Damper Valve & Fuel Return Line
    G00994955Courtesy of SUBARU OF AMERICA, INC.
