Crankshaft Position Sensor: Removal

  1. Disconnect the ground cable from battery.

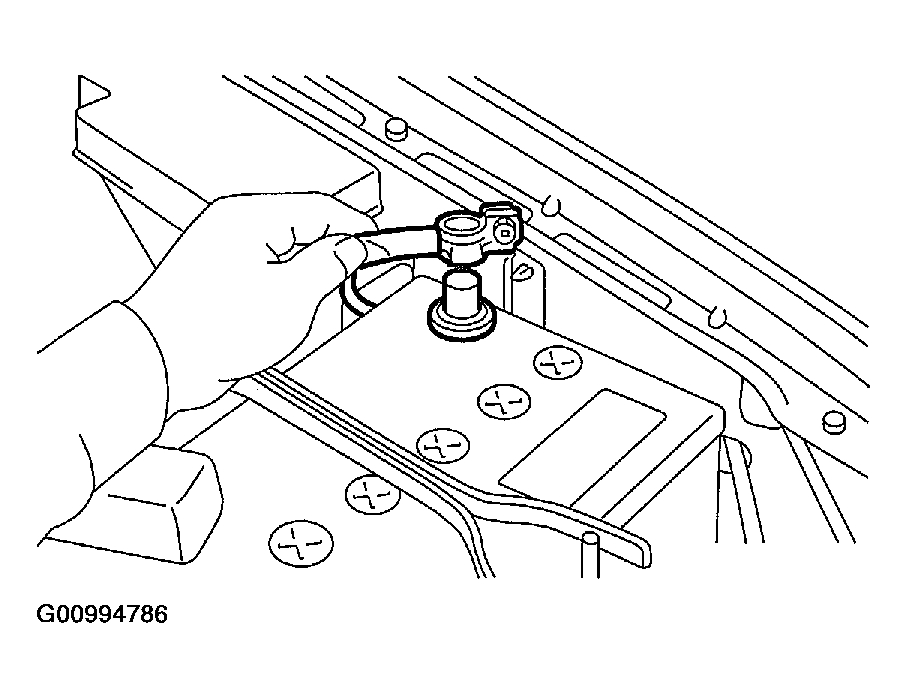

    Fig 1: Disconnecting Ground Cable From Battery
    G00994786Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the bolt which install crankshaft position sensor to the cylinder block.

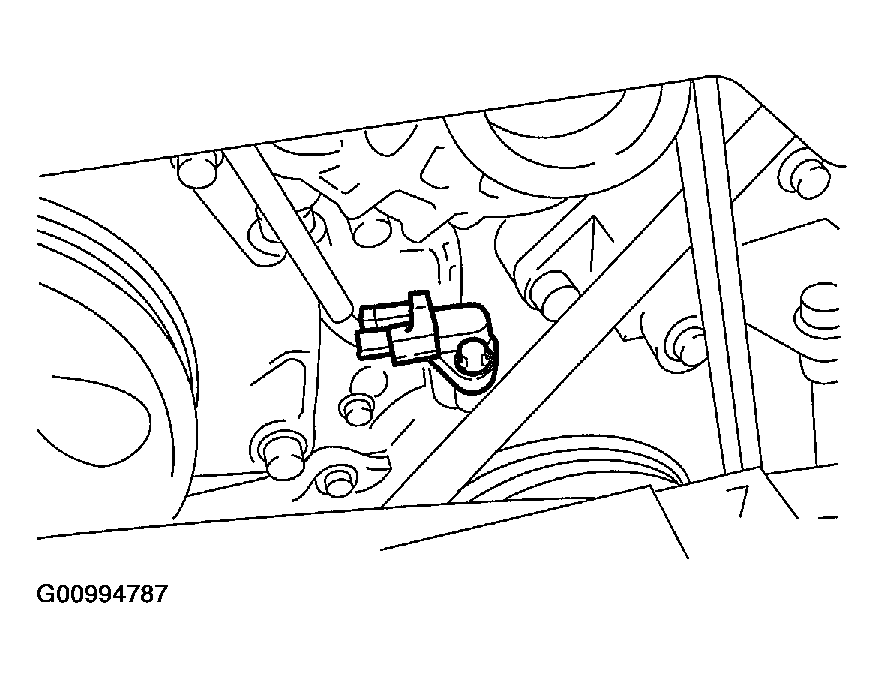

    Fig 2: Identifying Bolt & Crankshaft Position Sensor
    G00994787Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the crankshaft position sensor, and disconnect the connector from it.

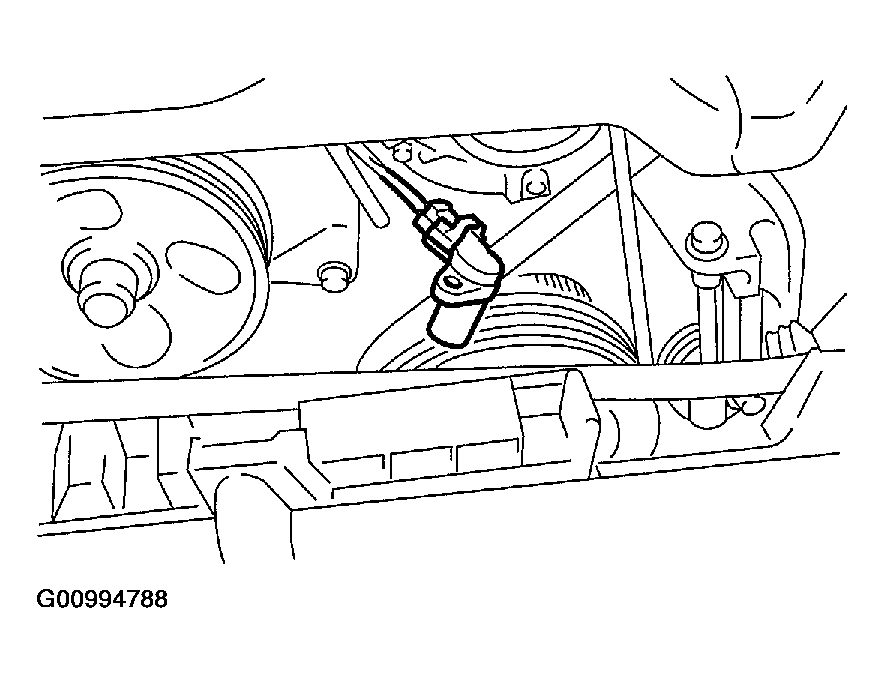

    Fig 3: Identifying Crankshaft Position Sensor
    G00994788Courtesy of SUBARU OF AMERICA, INC.
