Section 171 (Entertainment): Woofer: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the rear seat belt, rear seat, rear quarter upper, rear quarter lower, insulator and luggage floor mat.
  3. Remove the trim of woofer.
  4. Remove the woofer mounting screws and clips (A).

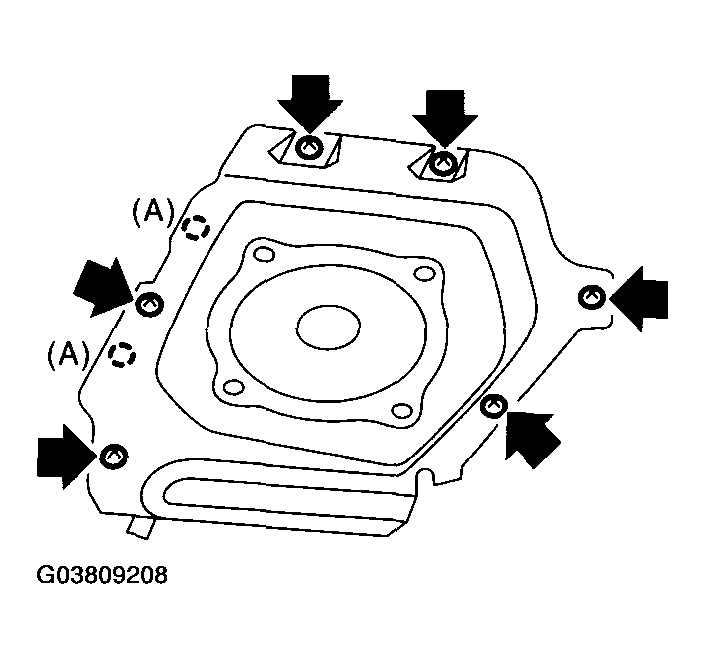

    Fig 1: Removing Woofer Mounting Screws And Clips (A)
    G03809208Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the harness connector, and then remove woofer.
