Releasing Of Fuel Pressure

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Disconnect the connector from the fuel pump relay.

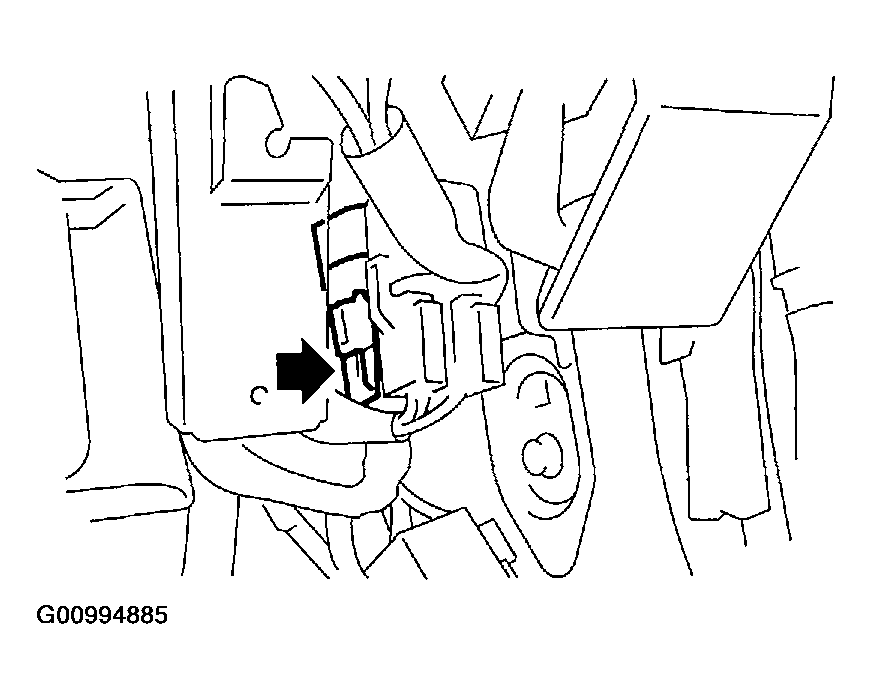

    Fig 1: Disconnecting Connector From Fuel Pump Relay
    G00994885Courtesy of SUBARU OF AMERICA, INC.
  2. Start the engine and run it until it stalls.
  3. After the engine stalls, crank it for five more seconds.
  4. Turn the ignition switch to OFF.
