General Diagnostic Table: Inspection: Engine

NOTE: Malfunction of parts other than those listed is also possible. Refer to ENGINE TROUBLE IN GENERAL .

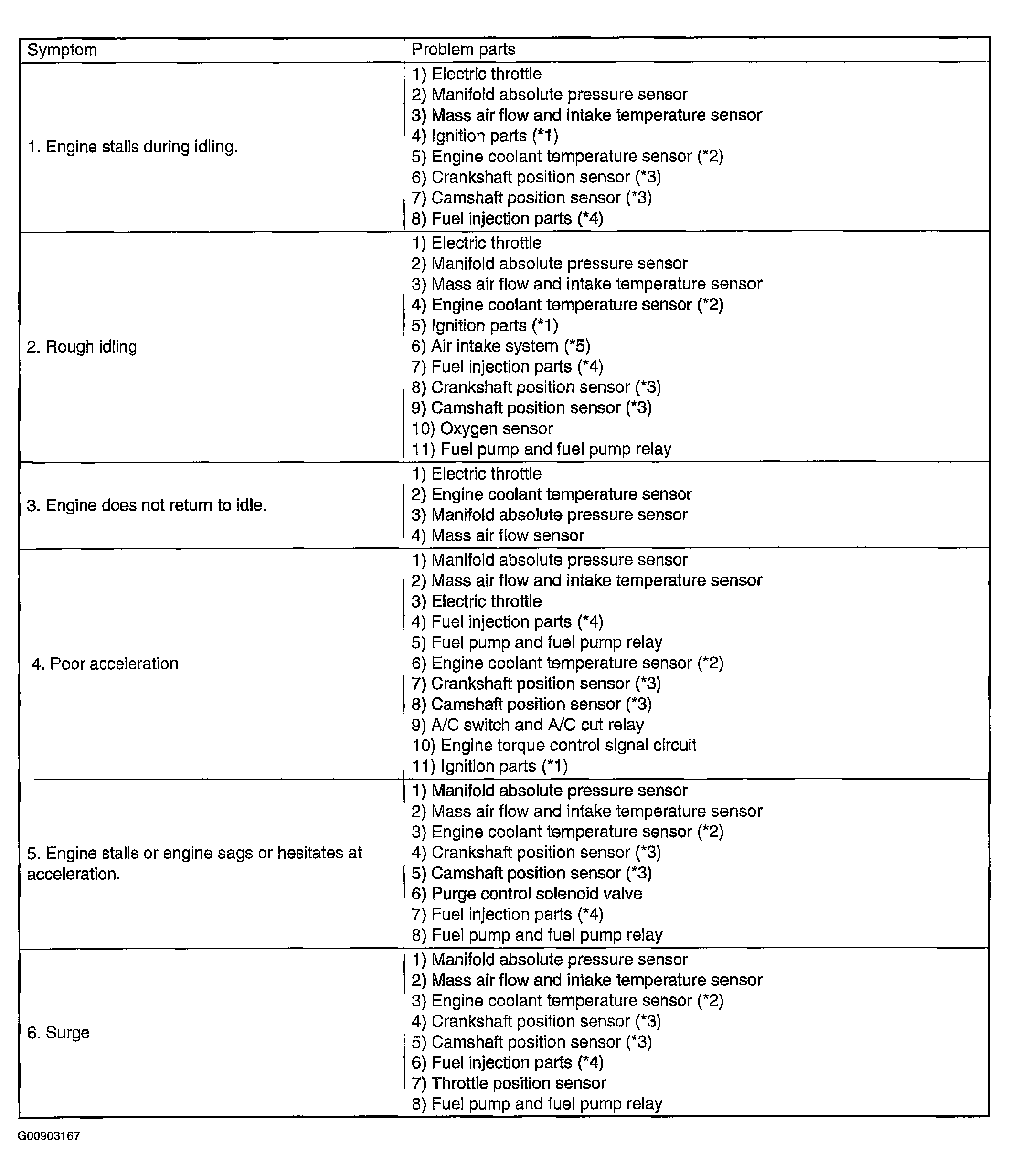

Fig 1: Symptom Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

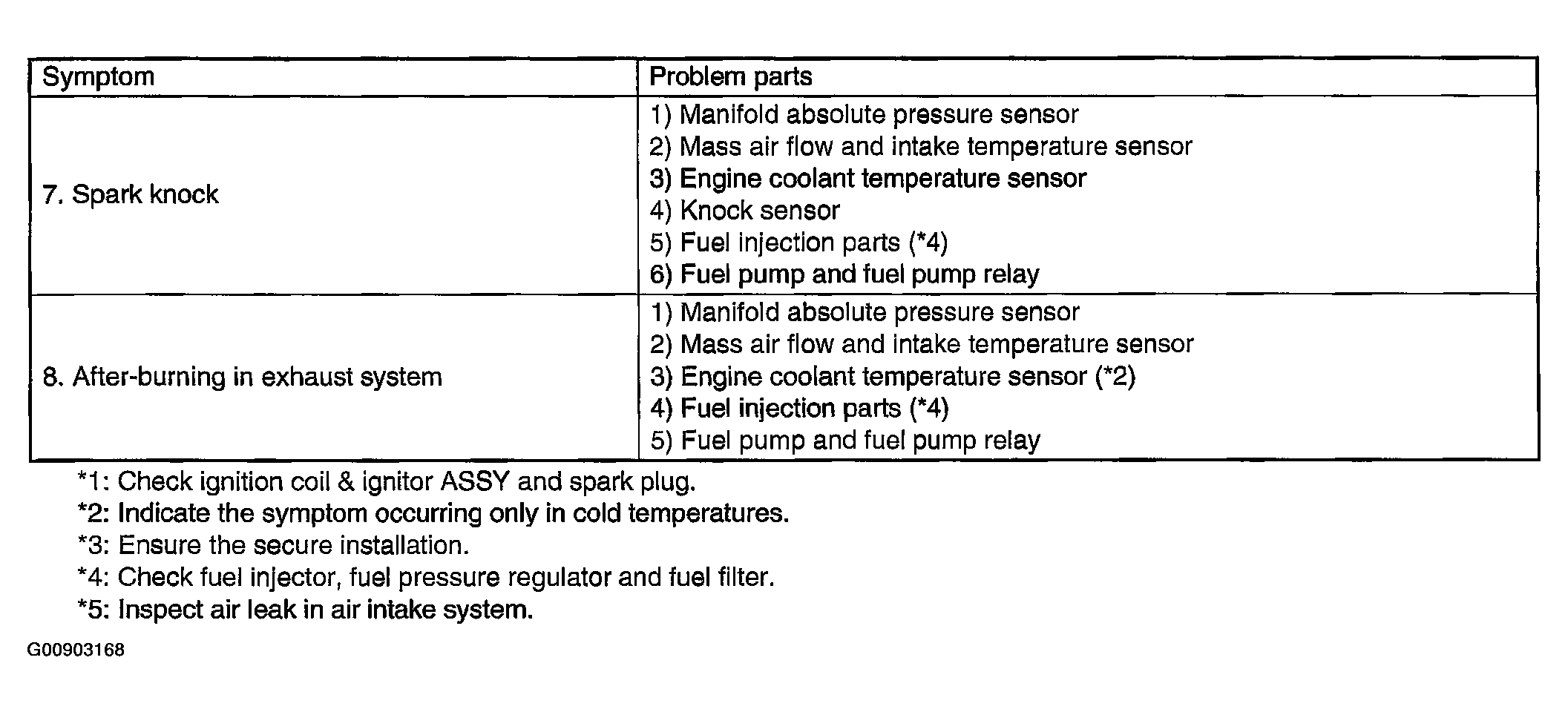

Fig 2: Symptom Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
