Basic Diagnostic Procedure: Procedure: Engine

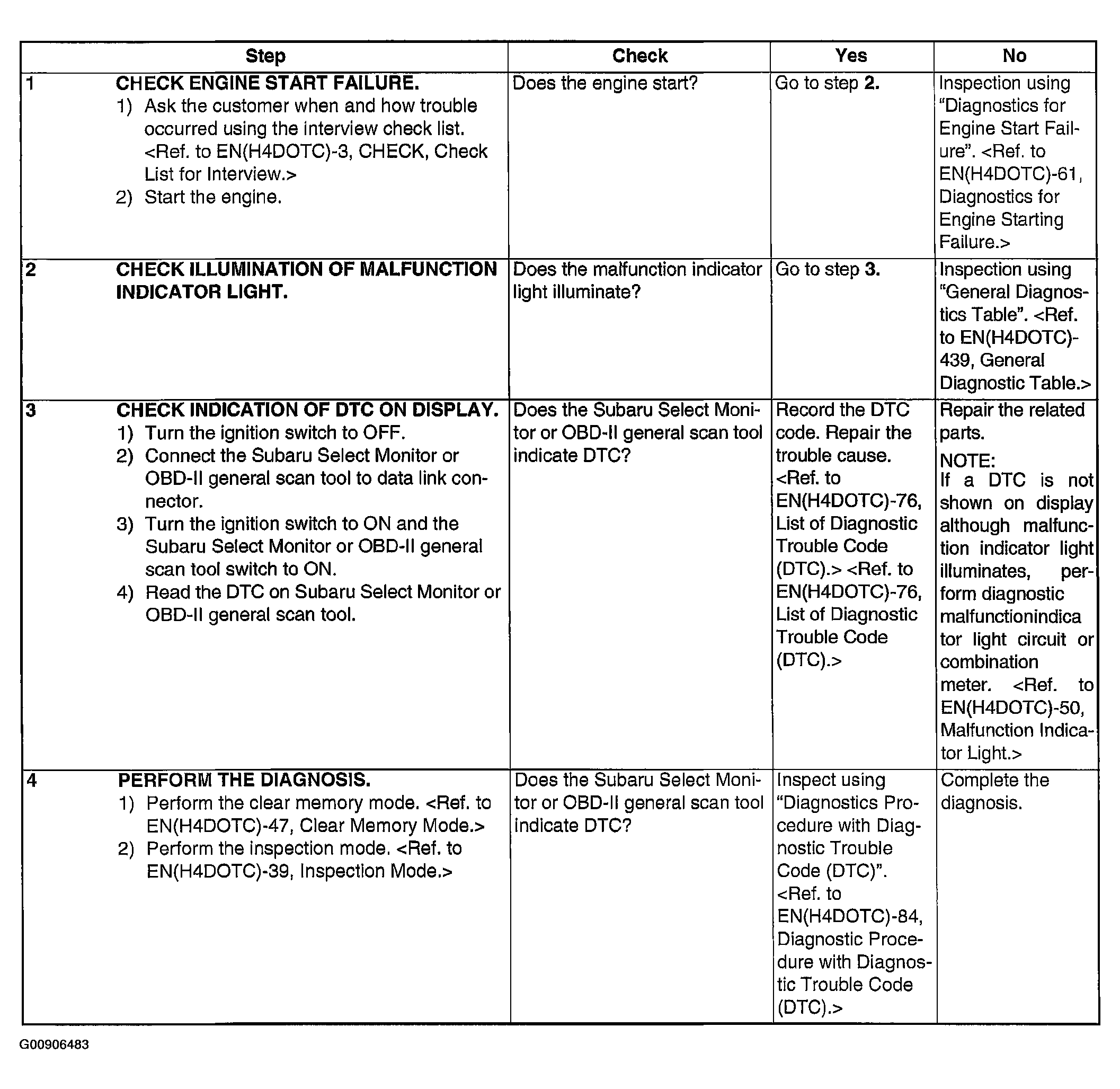

Fig 1: Engine Procedure Chart

G00906483

Courtesy of SUBARU OF AMERICA, INC.
