Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.

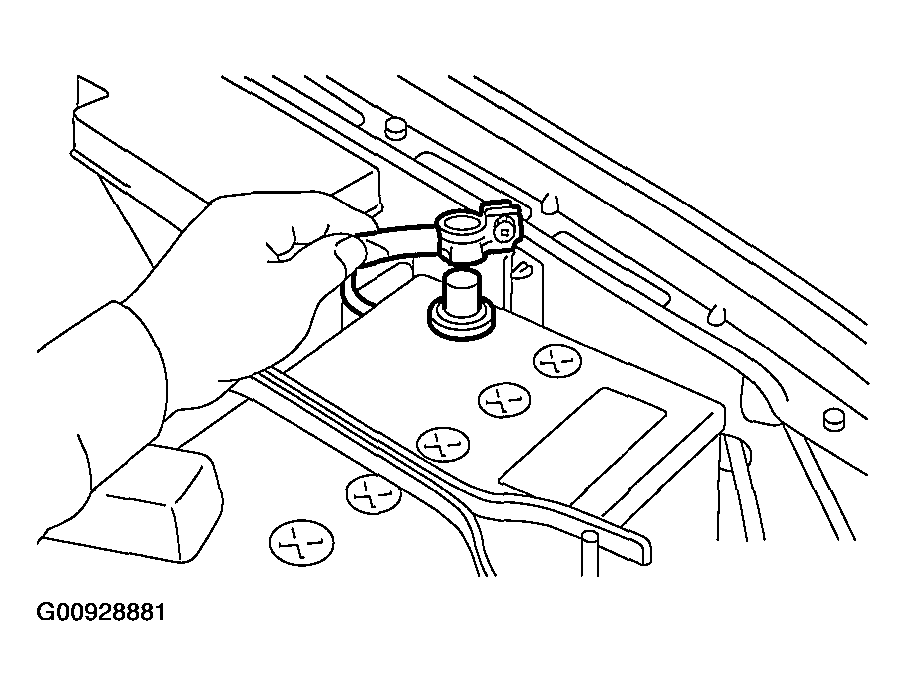

    Fig 1: Disconnecting Ground Cable From Battery
    G00928881Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the driver's side lower cover.
  3. Disconnect the connector from the fuel pump relay.
  4. Remove the fuel pump relay from the bracket.

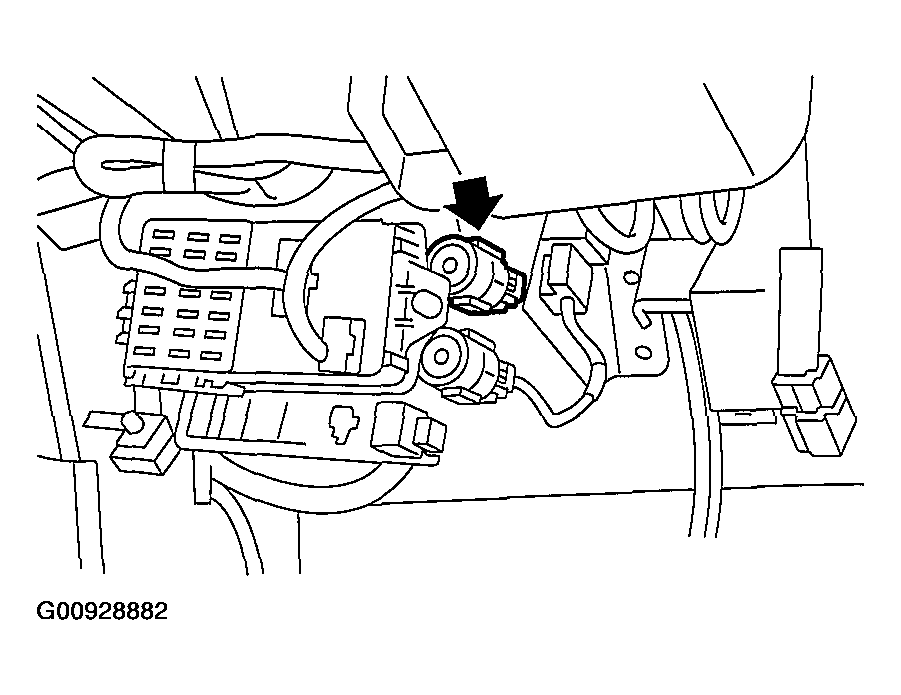

    Fig 2: Removing Fuel Pump Relay From Bracket
    G00928882Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the fuel pump relay from the mounting bracket.
