Fuel Filler Pipe: Removal: Installation

  1. Hold fuel filler flap open.
  2. Set fuel saucer (A) with rubber packing (C) and insert fuel filler pipe into hole from the inner side of apron.

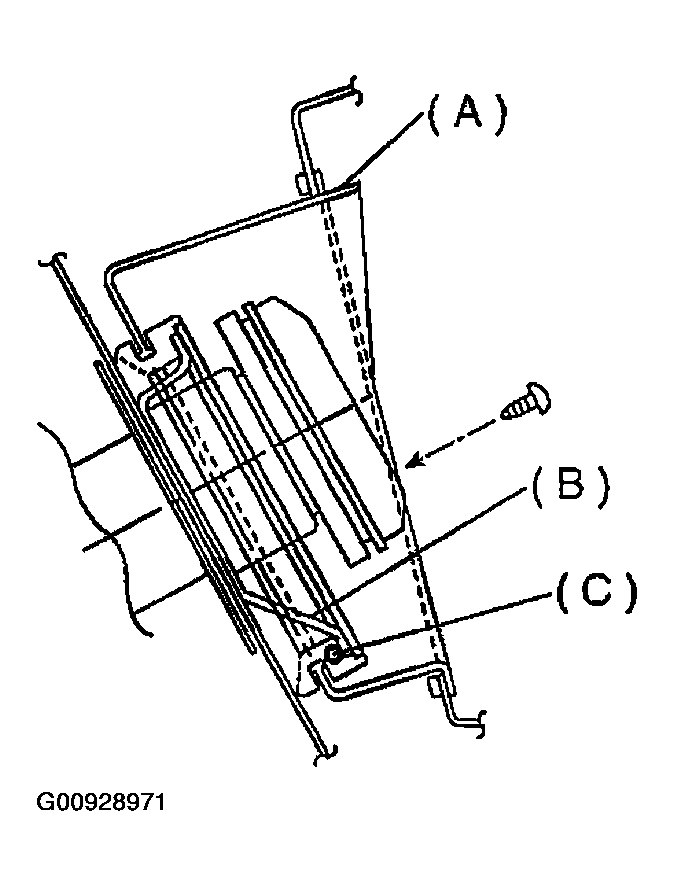

    Fig 1: Installing Fuel Saucer With Rubber Packing
    G00928971Courtesy of SUBARU OF AMERICA, INC.
  3. Align holes in fuel filler pipe neck and set cup (B), and tighten screws.
    NOTE: If edges of rubber packing are folded toward the inside, straighten it with a screwdriver.

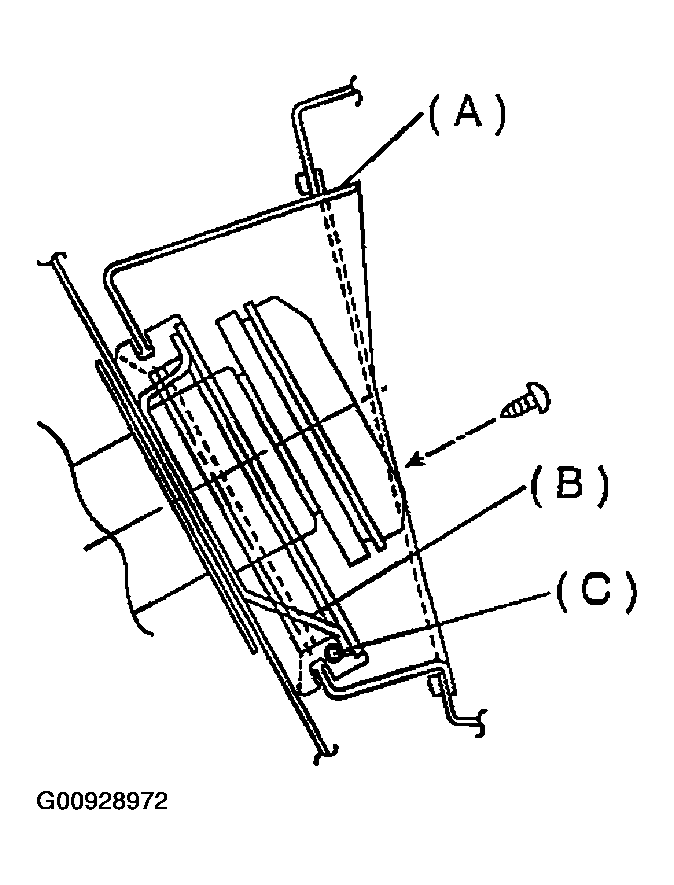

    Fig 2: Aligning Holes In Fuel Filler Pipe Neck & Tightening Screws
    G00928972Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten bolt which holds fuel filler pipe on body.

    Tightening torque:

    7.5 N.m (0.75 kgf-m, 5.4 ft-lb)

    Fig 3: Tightening Bolt Which Holds Fuel Filler Pipe On Body
    G00928973Courtesy of SUBARU OF AMERICA, INC.
  5. Insert evaporation hose approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe and hold clip.
    Fig 4: Inserting Evaporation Pipe & Hold Clip
    G00928974Courtesy of SUBARU OF AMERICA, INC.

    L = 27.5+/-2.5 mm (1.083+/-0.098 in)

    Fig 5: Identifying Hold Clip
    G00928975Courtesy of SUBARU OF AMERICA, INC.
  6. Insert canister hoses approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe assembly and tighten clamp.
    Fig 6: Inserting Evaporation Pipe & Hold Clip
    G00928976Courtesy of SUBARU OF AMERICA, INC.

    L = 27.5+/-2.5 mm (1.083+/-0.098 in)

    Fig 7: Identifying Hold Clip
    G00928977Courtesy of SUBARU OF AMERICA, INC.
  7. Tighten bolt which holds evaporation pipe assembly on body.

    Tightening torque:

    7.5 N.m (0.75 kgf-m, 5.4 ft-lb)

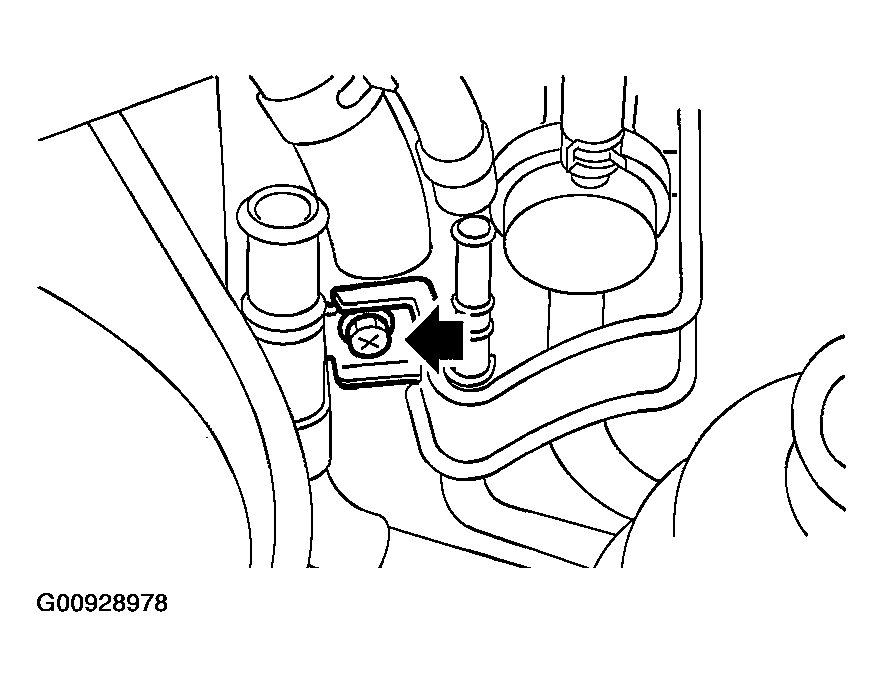

    Fig 8: Tightening Bolt
    G00928978Courtesy of SUBARU OF AMERICA, INC.
  8. Insert air vent hose (A), evaporation hose (P) approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe assembly and hold clip.
  9. Insert evaporation hose (H) to pressure control solenoid valve and hold clip.
    Fig 9: Inserting Evaporation Hose To Pressure Control Solenoid Valve & Hold Clip
    G00928979Courtesy of SUBARU OF AMERICA, INC.

    L = 27.5+/-2.5 mm (1.083+/-0.098 in)

    Fig 10: Identifying Hold Clip
    G00928980Courtesy of SUBARU OF AMERICA, INC.
  10. Tighten bolt which holds fuel filler pipe on body and tighten bolt which holds fuel pressure sensor on fuel filler pipe.

    Tightening torque:

    7.5 N.m (0.75 kgf-m, 5.4 ft-lb)

  11. Insert fuel filler hose approximately 35 to 40 mm (1.38 to 1.57 in) over the lower end of fuel filler pipe and tighten clamp.

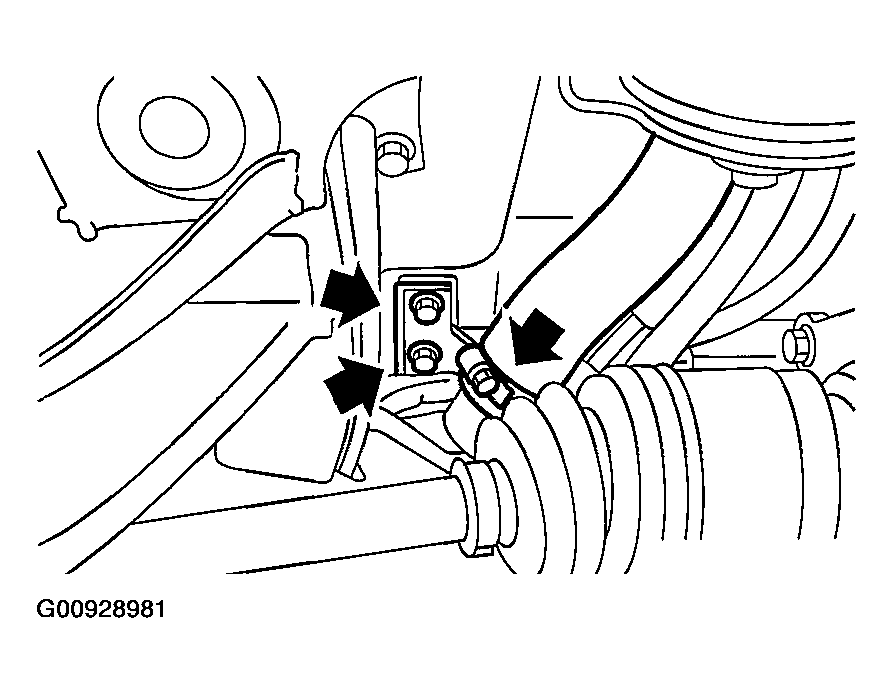

    Fig 11: Tightening Clamp
    G00928981Courtesy of SUBARU OF AMERICA, INC.
  12. Jack-up the rear sub frame and tighten bolts which hold rear sub frame on body.

    Tightening torque:

    T1: 66 N.m (6.7 kgf-m, 48.5 ft-lb)

    T2: 172 N.m (17.5 kgf-m, 127 ft-lb)

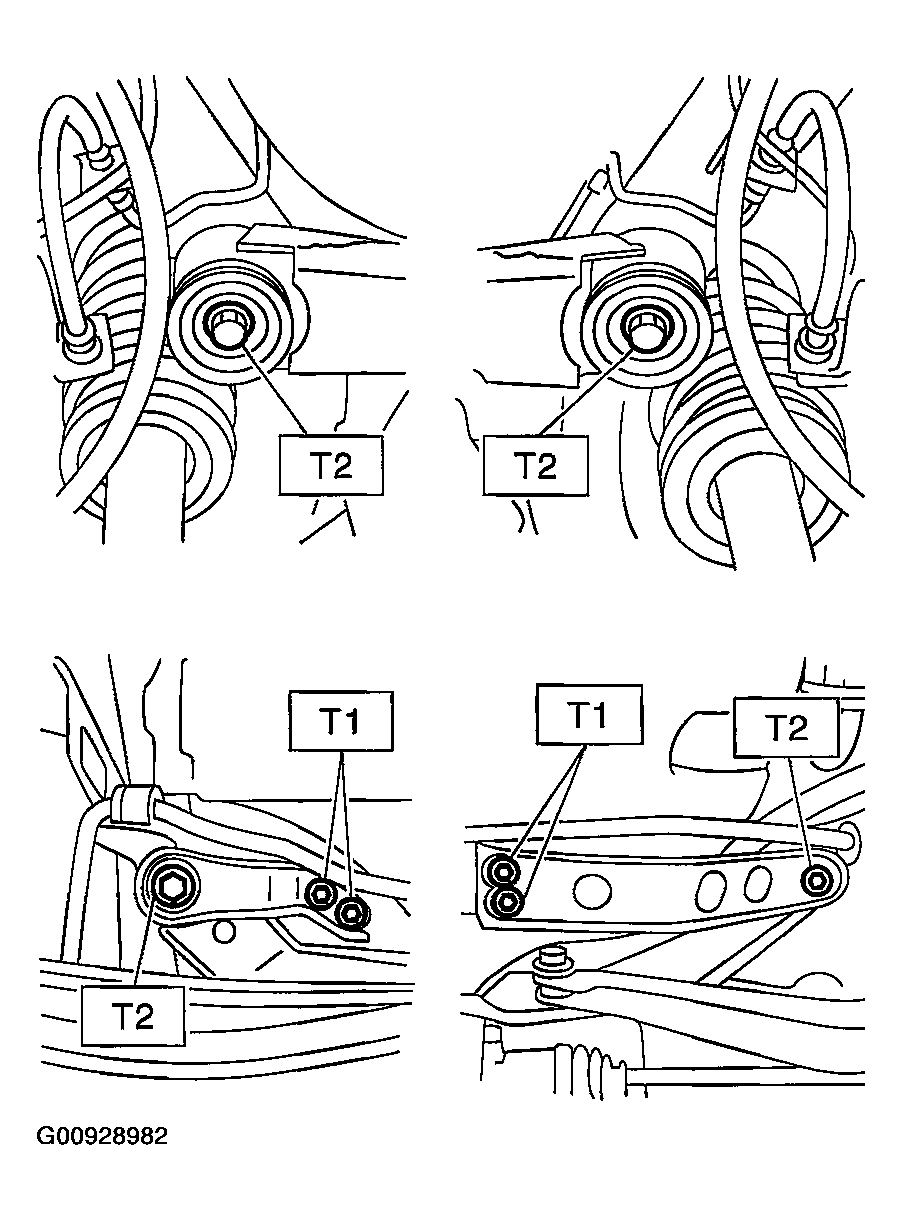

    Fig 12: Tightening Bolts Which Hold Rear Sub Frame
    G00928982Courtesy of SUBARU OF AMERICA, INC.
  13. Tighten bolt which holds rear shock absorber to rear suspension arm. Refer to INSTALLATION , Rear Shock Absorber.

    Tightening torque:

    157 N.m (16 kgf-m, 116 ft-lb)

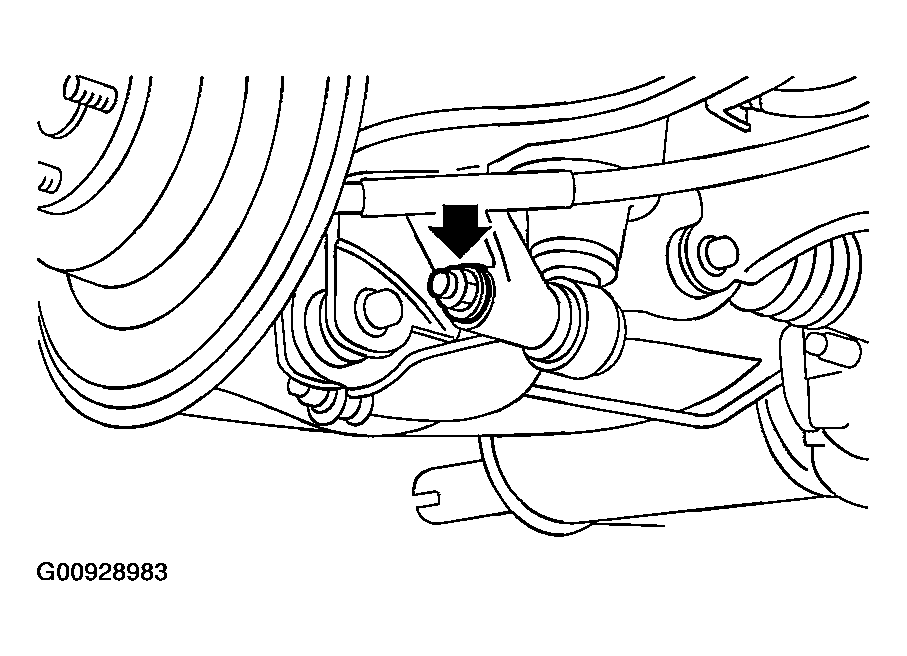

    Fig 13: Tightening Bolt Which Holds Rear Shock Absorber
    G00928983Courtesy of SUBARU OF AMERICA, INC.
  14. Install heat shield cover.

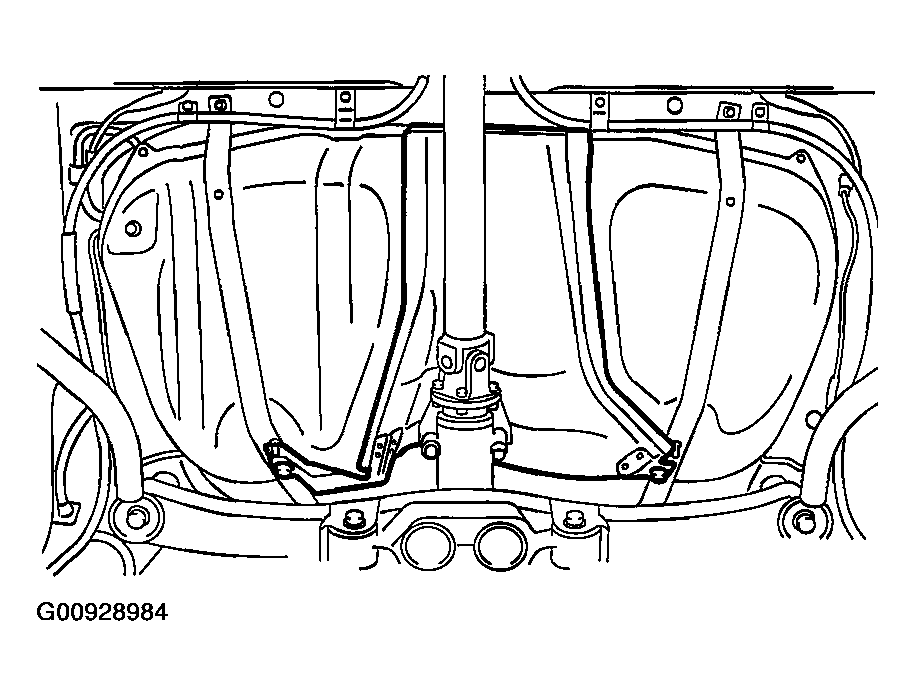

    Fig 14: Installing Heat Shield Cover
    G00928984Courtesy of SUBARU OF AMERICA, INC.
  15. Install rear exhaust pipe and muffler.
    NOTE: To facilitate the procedure, apply a coat of SUBARU CRC to matching area of rubber cushions in advance.

    SUBARU CRC (Part No. 004301003)

    1. Install left and right rubber cushions.
      Fig 15: Installing Left & Right Rubber Cushions
      G00928985Courtesy of SUBARU OF AMERICA, INC.
    2. Install front rubber cushion and attach muffler assembly.

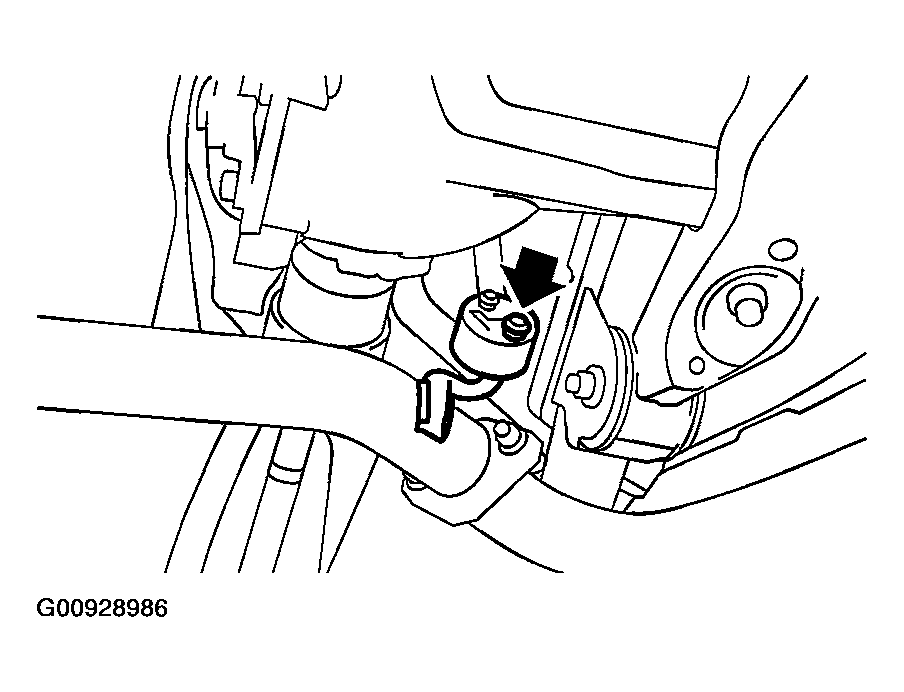

      Fig 16: Installing Front Rubber Cushion & Attaching Muffler Assembly
      G00928986Courtesy of SUBARU OF AMERICA, INC.
    3. Install rear exhaust pipe to center exhaust pipe.

      Tightening torque:

      18 N.m (1.8 kgf-m, 13.0 ft-lb)

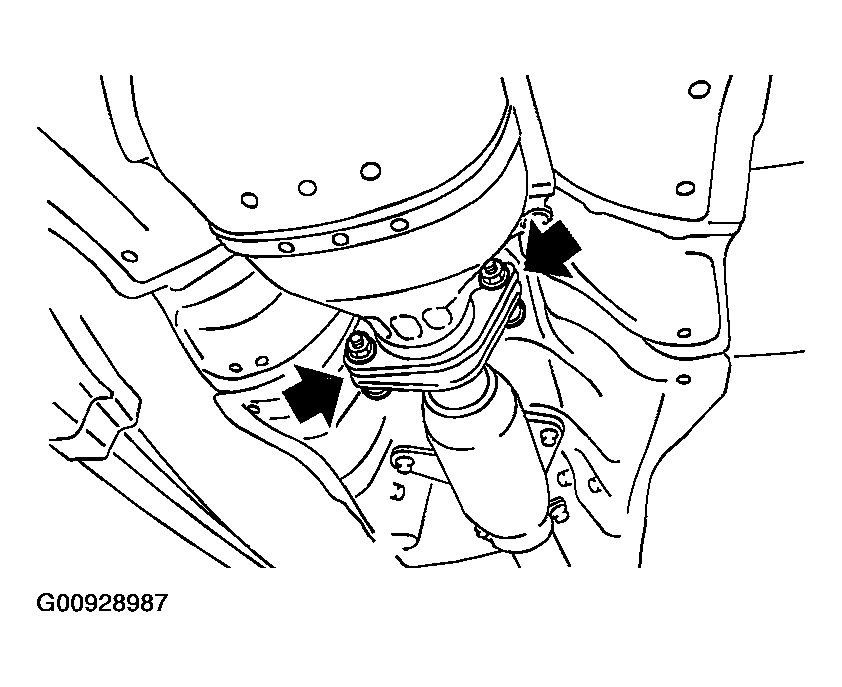

      Fig 17: Installing Rear Exhaust Pipe To Center Exhaust Pipe
      G00928987Courtesy of SUBARU OF AMERICA, INC.
  16. Install fuel filler pipe protector.

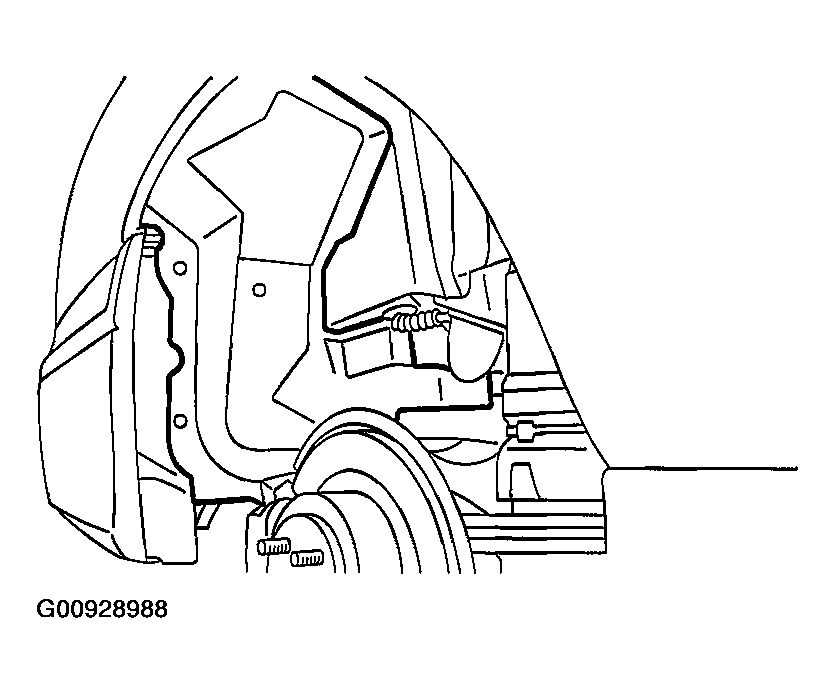

    Fig 18: Installing Fuel Filler Pipe Protector
    G00928988Courtesy of SUBARU OF AMERICA, INC.
  17. Install rear right wheel.
    Fig 19: Installing Rear Right Wheel
    G00928989Courtesy of SUBARU OF AMERICA, INC.
  18. Lower the vehicle.
  19. Tighten wheel nuts.
  20. Connect battery ground cable.

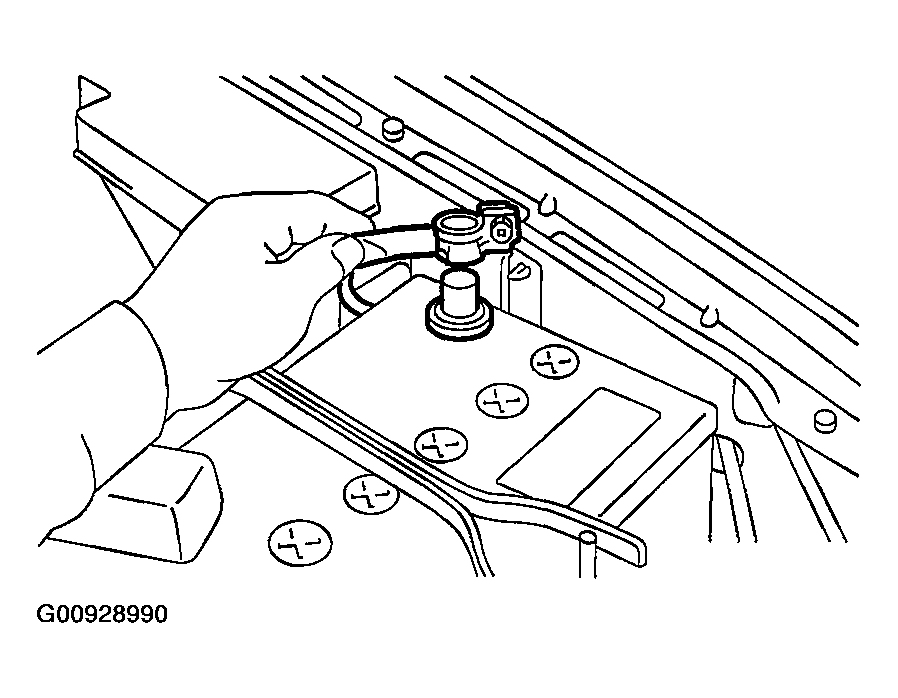

    Fig 20: Connecting Battery Ground Cable
    G00928990Courtesy of SUBARU OF AMERICA, INC.
  21. Remove fuel filler pipe to under side of the vehicle.
