Led Operation Mode For Engine

  1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
  2. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
  3. Press the [YES] key after the information of engine type is displayed.
  4. On the << Engine Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
  5. On the << Data Display Menu >> display screen, select the {Data & LED Display} and press the [YES] key.
  6. Using the scroll key, move the display screen up or down until the desired data is shown.

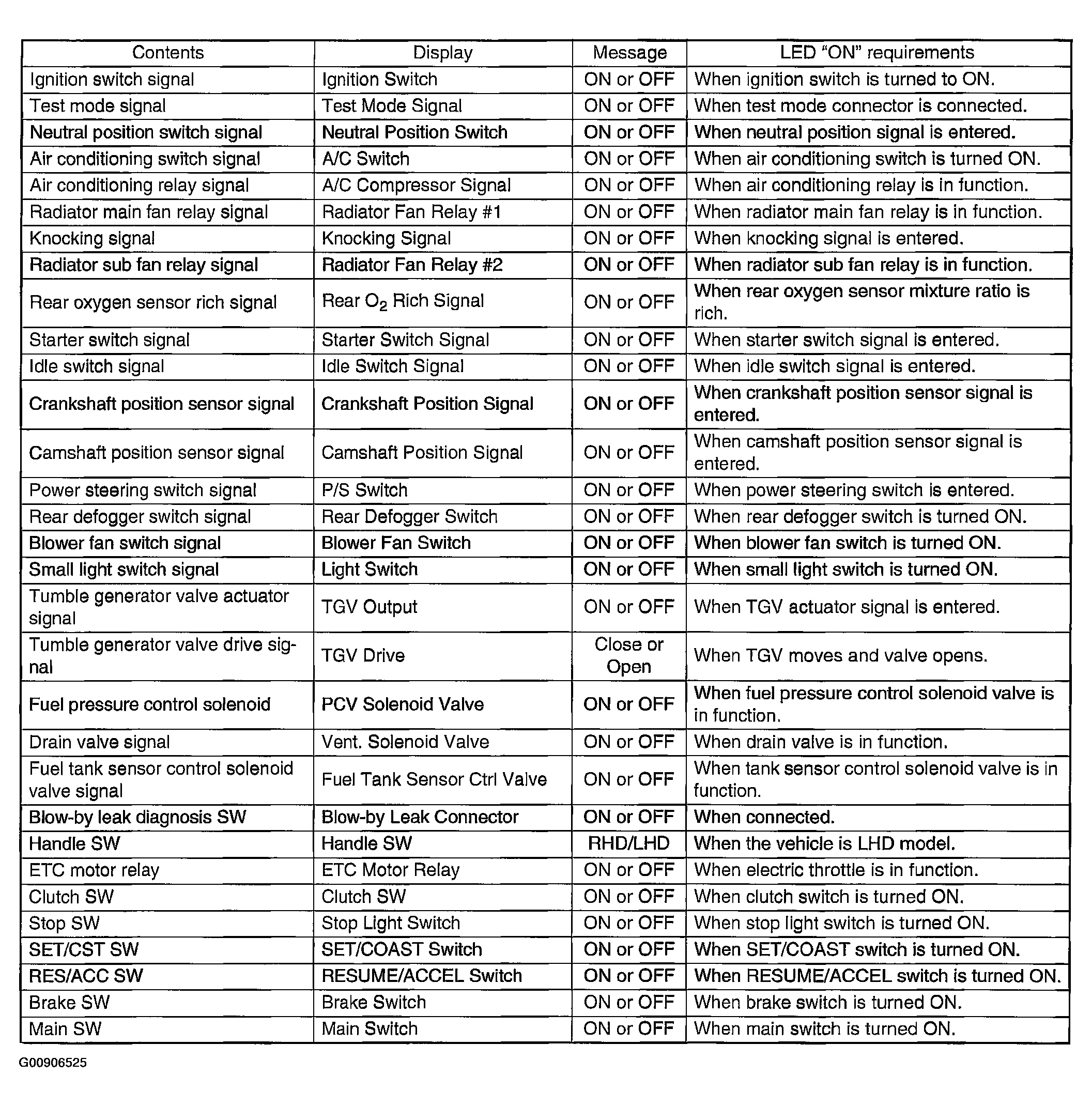

Fig 1: LED Operation Mode For Engine Chart
G00906525Courtesy of SUBARU OF AMERICA, INC.
NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.
