Universal Joint: Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

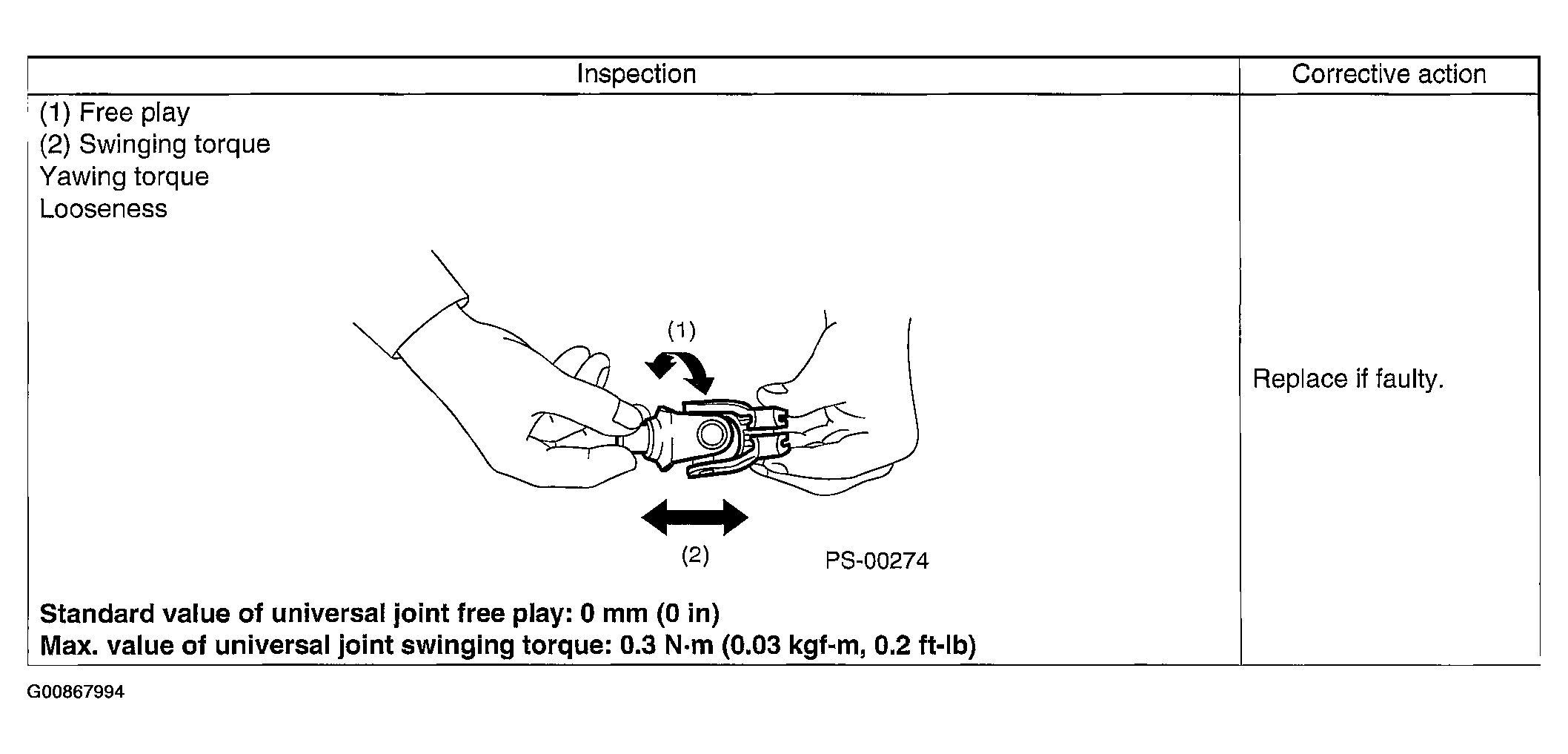

Fig 1: Checking Wear, Damage Or Any Other Faults

Courtesy of SUBARU OF AMERICA, INC.

Measurement of folding torque of universal joint .

1. Service limit: Maximum load;  5.49 N (0.56 kgf, 1.23 lb) or less

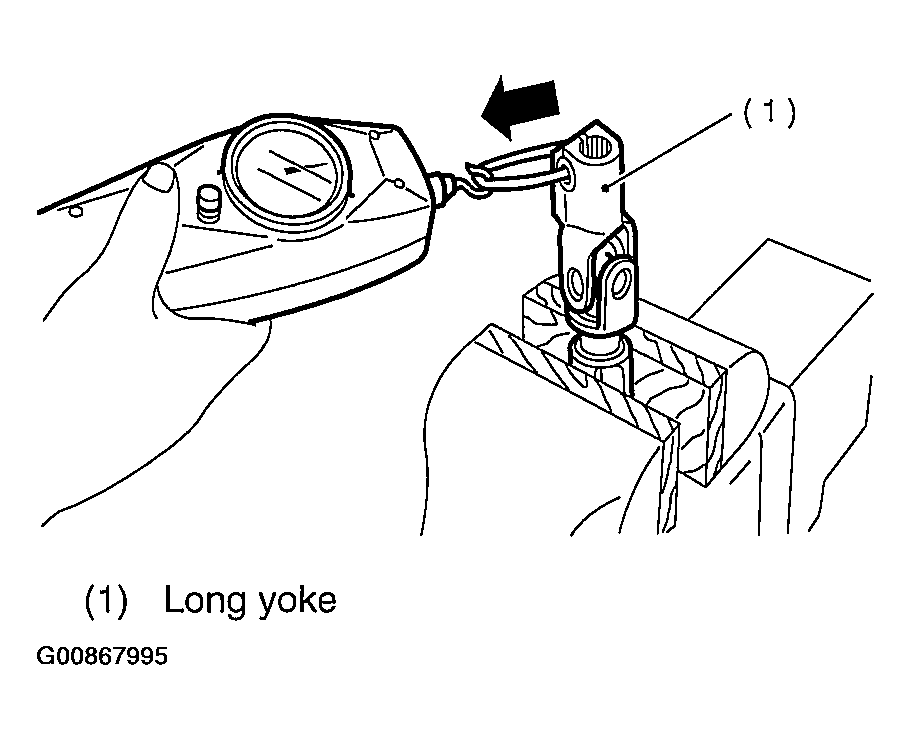

   Fig 2: Measuring Of Folding Torque Of Universal Joint (Long Yoke)

   Courtesy of SUBARU OF AMERICA, INC.
2. Service limit: Maximum load;  5.49 N (0.56 kgf, 1.23 lb) or less
   Fig 3: Measuring Of Folding Torque Of Universal Joint (Long Yoke)

   Courtesy of SUBARU OF AMERICA, INC.
3. Service limit: Maximum load;  8.43 N (0.86 kgf, 1.90 lb) or less
   Fig 4: Measuring Of Folding Torque Of Universal Joint (Short Yoke)

   Courtesy of SUBARU OF AMERICA, INC.
4. Service limit: Maximum load;  8.43 N (0.86 kgf, 1.90 lb) or less
   Fig 5: Measuring Of Folding Torque Of Universal Joint (Short Yoke)

   Courtesy of SUBARU OF AMERICA, INC.
