Hazard Switch

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Measure hazard switch resistance.

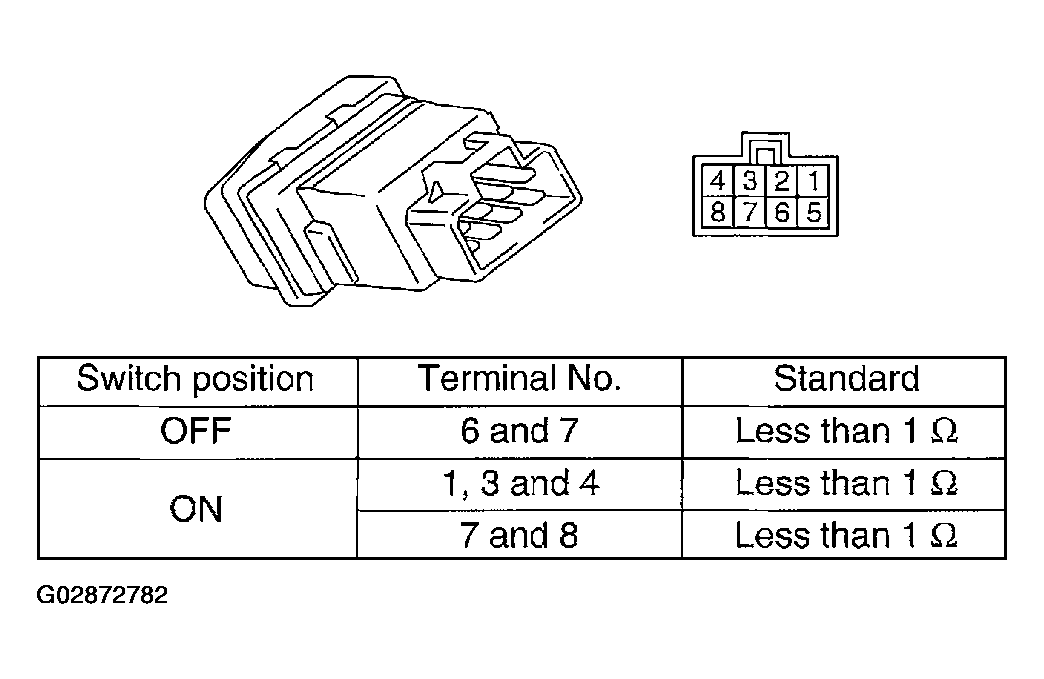

Fig 1: Measuring Hazard Switch Resistance
G02872782Courtesy of SUBARU OF AMERICA, INC.
