Drive According To The Following Drive Pattern

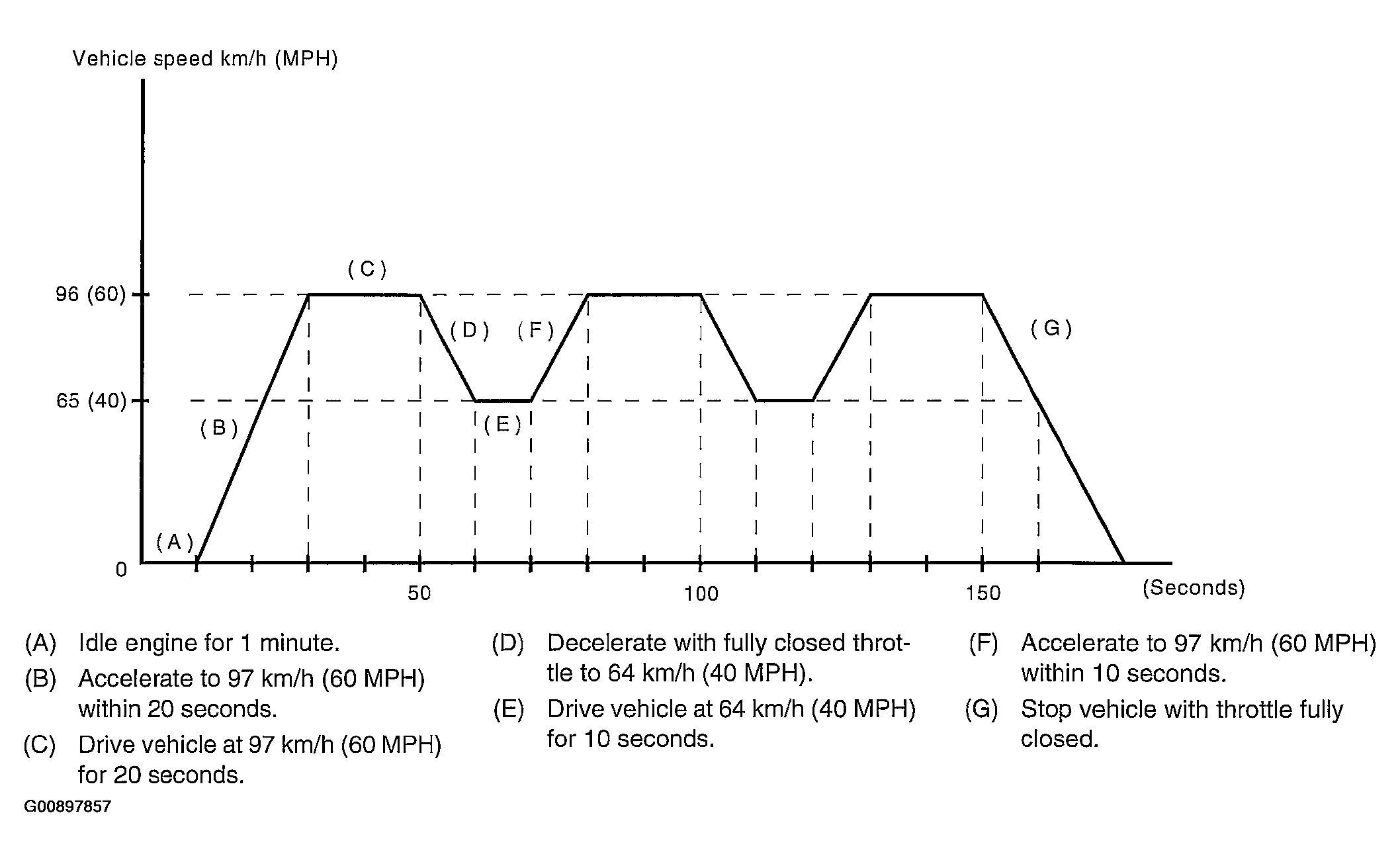

Fig 1: Identifying Drive Pattern
G00897857Courtesy of SUBARU OF AMERICA, INC.

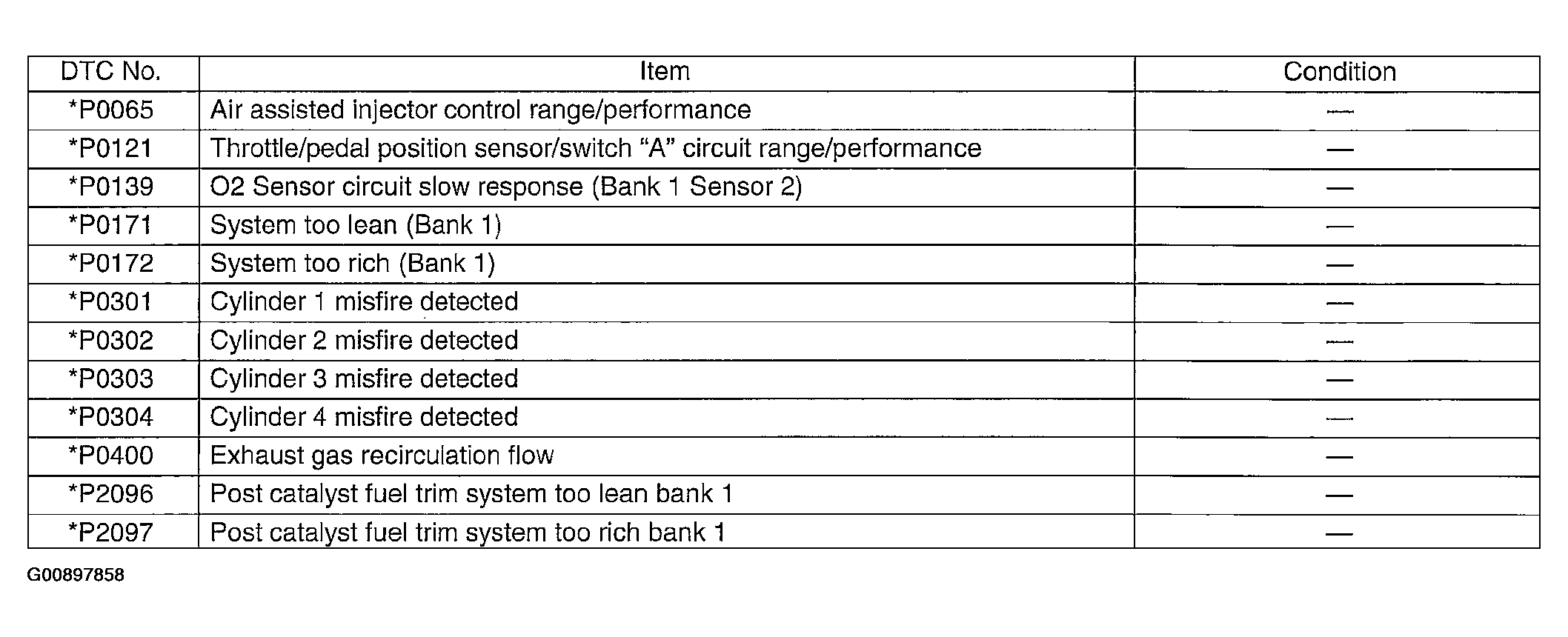

Fig 2: Diagnostic Trouble Code Item & Condition Table
G00897858Courtesy of SUBARU OF AMERICA, INC.
