Fuel Injector Circuit

CAUTION:

Check or repair only malfunctioning parts.
After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to CLEAR MEMORY MODE and Inspection Mode. Refer to INSPECTION MODE .

WIRING DIAGRAM:

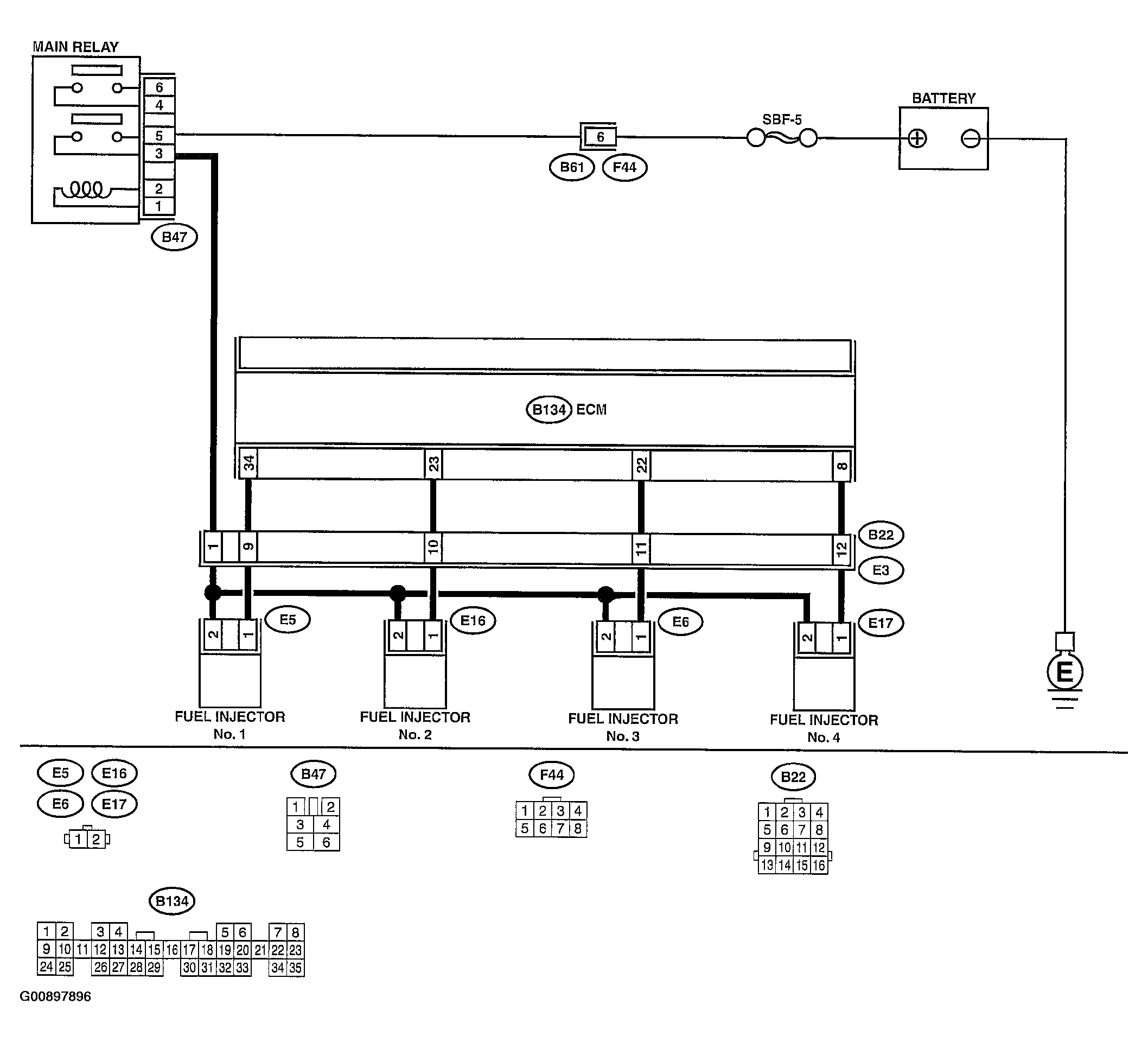

Fig 1: Fuel Injector Circuit Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

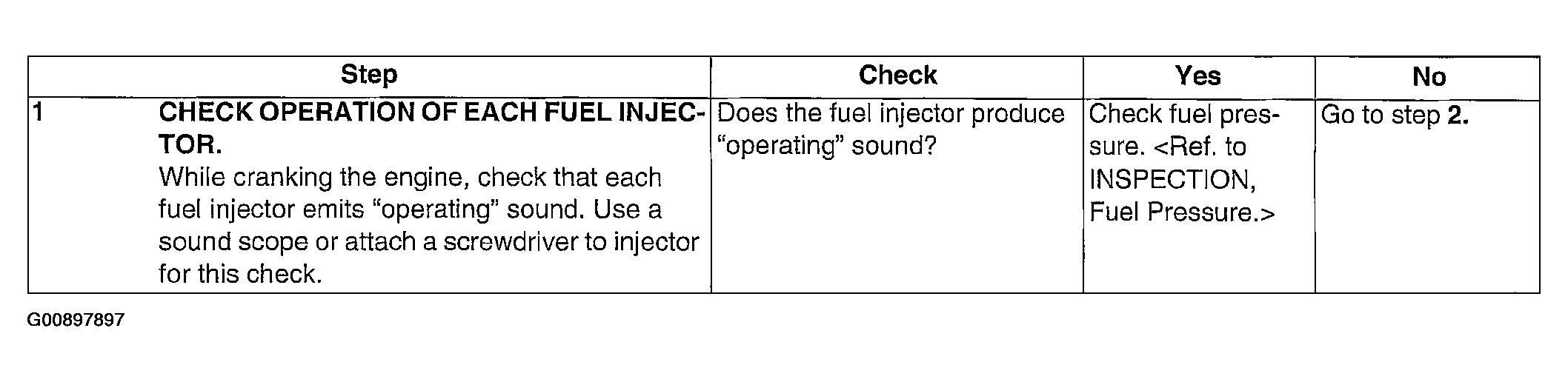

Fig 2: Diagnostics For Engine Starting Failure Symptoms Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

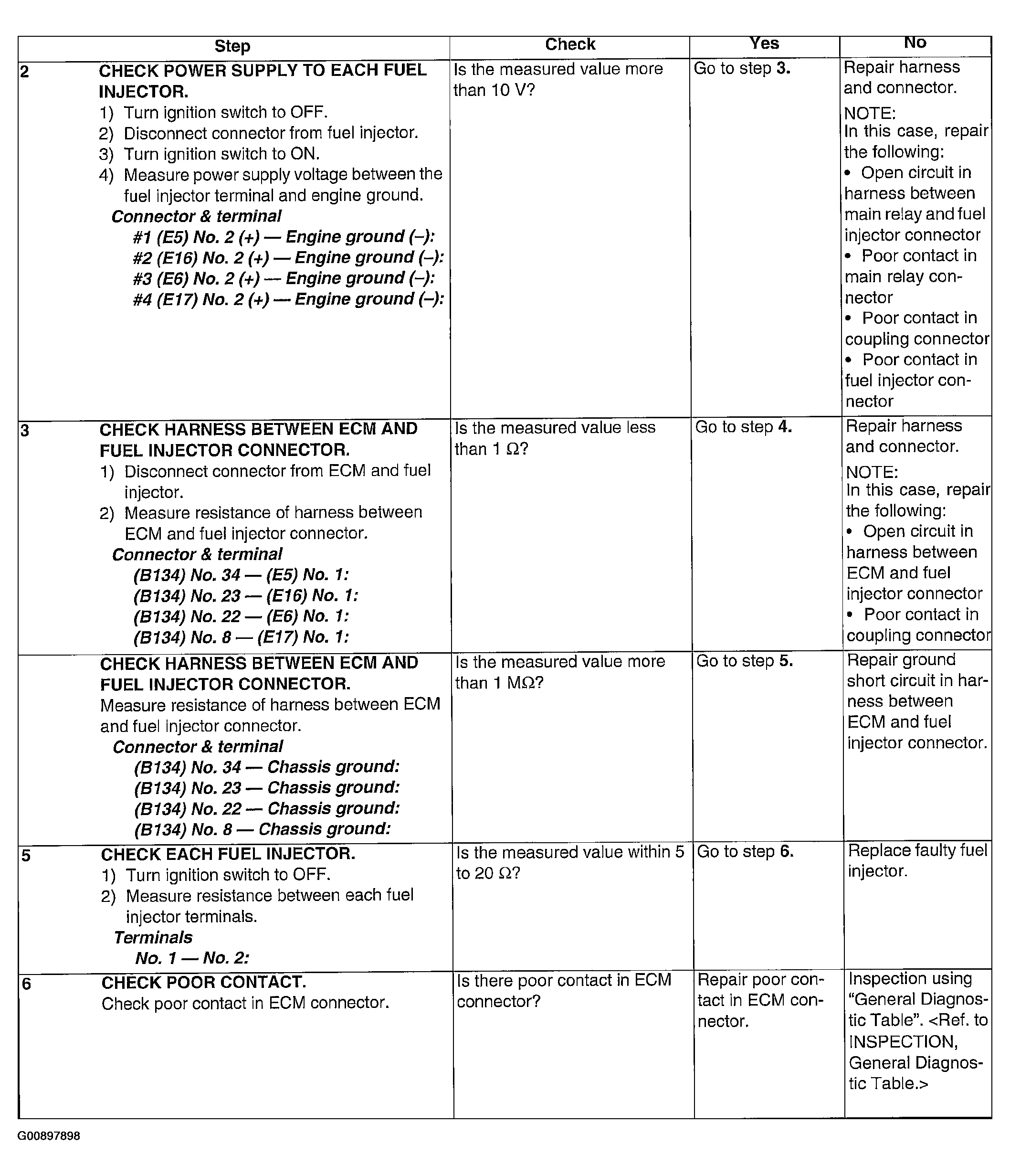

Fig 3: Diagnostics For Engine Starting Failure Symptoms Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
