Ignition Coil and Ignitor Assembly: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00900207Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect spark plug cords from ignition coil and ignitor assembly.
  3. Disconnect connector from ignition coil and ignitor assembly.

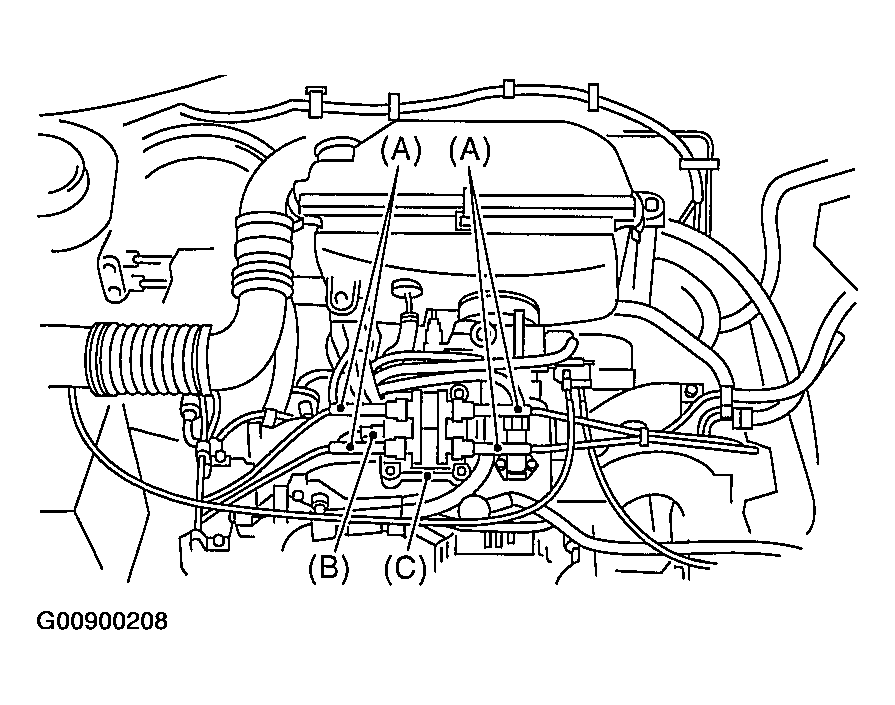

    Fig 2: Disconnecting Connector From Ignition Coil & Ignitor Assembly
    G00900208Courtesy of SUBARU OF AMERICA, INC.
  4. Remove ignition coil and ignitor assembly.

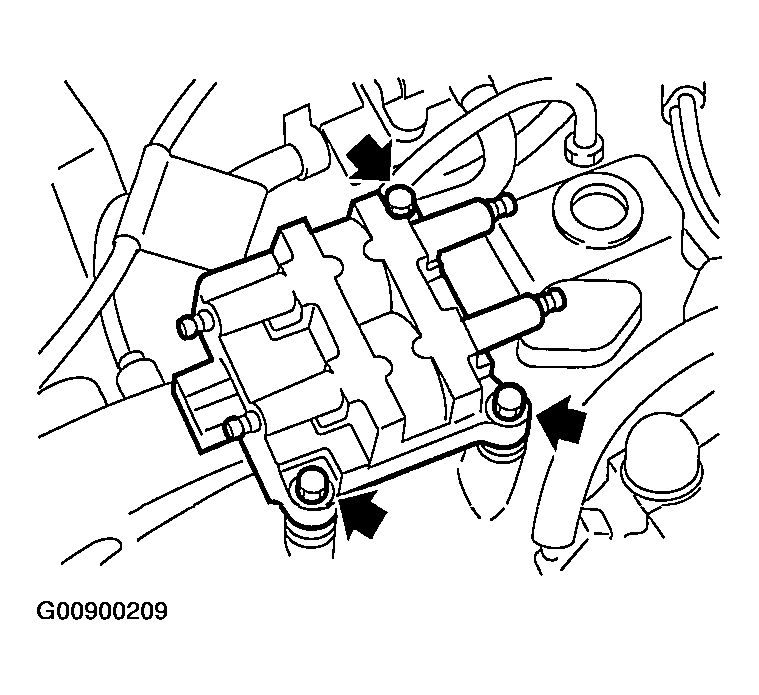

    Fig 3: Removing Ignition Coil & Ignitor Assembly
    G00900209Courtesy of SUBARU OF AMERICA, INC.
